Aircraft Insulation Blanket Tape
The aerospace industry's recognized specialist in aircraft insulation blanket tapes — E&H metalized Tedlar, PVF, and PEEK splicing tapes. Boeing BMS 5-157, Gulfstream GAT, Douglas DMS, and FAA approved.
7E&H Tape Variants
FAAFAR 25.853 & 25.856
BoeingBMS 5-157 Approved
GulfstreamGAT100FR Approved
12–18 moShelf Life
Insulation Blanket Tape — Metalized Tedlar & Polyester Splicing
2 products
E&H #770-3FRD See product for lead time
Metalized Tedlar (PVF) Insulation Blanket Splicing Tape — Dull Gray
Metalized PVF (Tedlar) insulation blanket splicing tape. 0.0005" (0.5 mil) metalized PVF film, 10×10 scrim, FR acrylic adhesive. Qualified to Douglas DMS-1984 Rev. P Type 6 Class 2 for Tedlar blanket fabrication and repair.
Carrier0.0005" (0.5 mil) Metalized PVF (Tedlar)
Scrim10×10 visual scrim
Weight4.5 ±0.3 oz/sq yd
Tensile23.6 lb/in avg
Peel (30-day)152.3 oz/in avg
Burn Length3.4" max
Shelf Life12 months min
From $54.99
View Product →

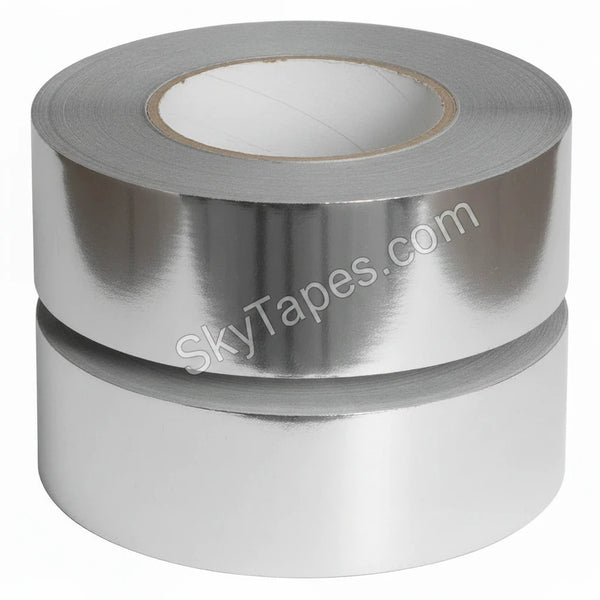

E&H #770-3FRS See product for lead time
Metalized Polyester Insulation Blanket Splicing Tape — Silver/Gray
Polyester-carrier alternative to the 770-3FRD. 0.00025" (0.25 mil) metalized polyester, denser 20×10 scrim. Choose when DMS-1984 Rev. M Type 5 Class 1 is specified.
Carrier0.00025" (0.25 mil) Metalized Polyester
Scrim20×10 Polyester scrim
Weight3.9 oz/sq yd
Peel (30-day)156.8 oz/in avg
Burn Length3.9" max
Shelf Life12 months min
From $157.50
View Product →
743 Series — PVF / Tedlar Splicing Tapes
3 products

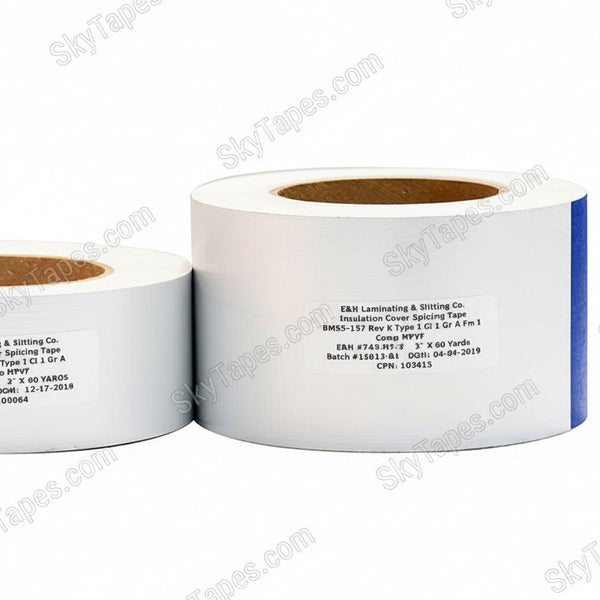

E&H #743-MT See product for lead time
Metalized PVF Tedlar Insulation Blanket Cover Splicing Tape — Dull Gray
Metalized Tedlar blanket cover tape approved to Boeing BMS 5-157 and Gulfstream GAT100FR1. Dull gray metalized PVF film, 10×10 scrim, FR acrylic adhesive.
CarrierMetalized PVF (Tedlar), 10×10 scrim
Weight3.0 oz/sq yd max
Tensile10.3 lb/in avg
Peel (RT)3.2 lb/in
Burn Length1.9" max
Shelf Life18 months min
From $48.99
View Product →
E&H #743-T See product for lead time
White PVF Tedlar Insulation Blanket Cover Splicing Tape — Non-Metalized
Non-metalized white PVF Tedlar blanket tape. Boeing BMS 5-157 Comp PVF and Gulfstream GAT100FR2 approved. Passes FAA Critical Radiant Heat Panel FAR 25.856(A).
CarrierWhite PVF (Tedlar), 10×10 scrim
Weight3.0 oz/sq yd max
Tensile10.3 lb/in avg
Peel (RT)3.6 lb/in
Burn Length2.4" max
Shelf Life18 months min
From $72.99
View Product →

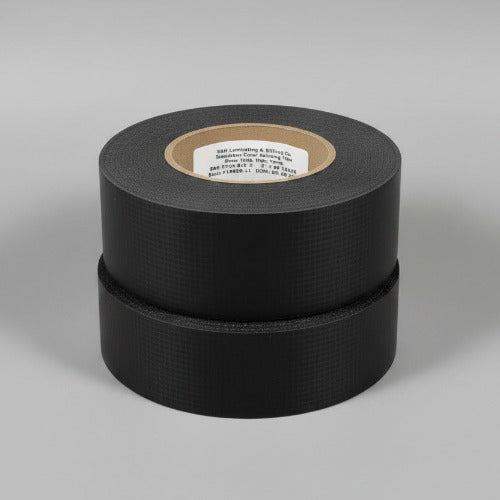

E&H #743-BLK See product for lead time
Black PVF Tedlar Insulation Blanket Cover Splicing Tape
Black coated PVF Tedlar blanket tape for applications requiring black coloring. FR acrylic adhesive, 10×10 scrim. Passes FAR 25.856(A) and FAR 25.853.
CarrierBlack coated PVF (Tedlar), 10×10 scrim
Weight3.0 oz/sq yd max
Tensile23.6 lb/in avg
Peel (RT)3.8 lb/in
Burn Length2.8" max
Shelf Life18 months min
From $199.99
View Product →
753 Series — Metalized PEEK Splicing Tapes
2 products

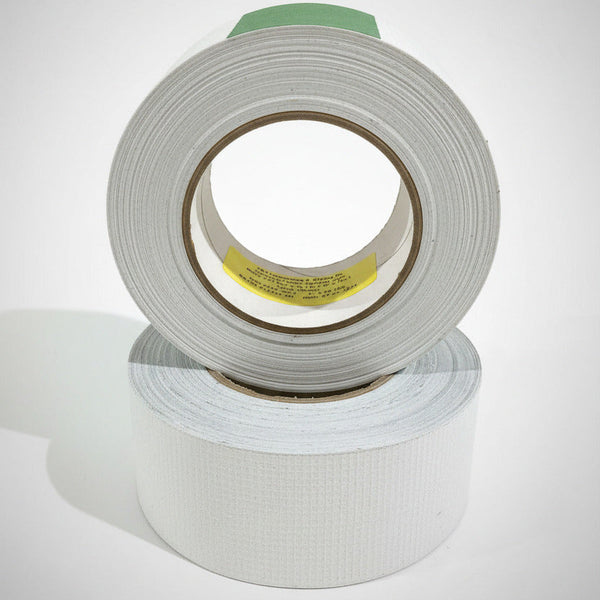

E&H #753-MP See product for lead time
Metalized PEEK Insulation Blanket Cover Splicing Tape — Grade A & C
PEEK (polyether ether ketone) film insulation blanket cover splicing tape. Dull gray metalized PEEK film, 10×10 scrim, FR acrylic adhesive. Boeing BMS 5-157 Grade A or C, Comp MPEEK.
CarrierMetalized PEEK, 10×10 scrim
Weight1.9 oz/sq yd ±0.3
Tensile10.3 lb/in avg
Peel (RT)3.8 lb/in
Burn Length1.4" avg
Shelf Life18 months min
From $34.31
View Product →

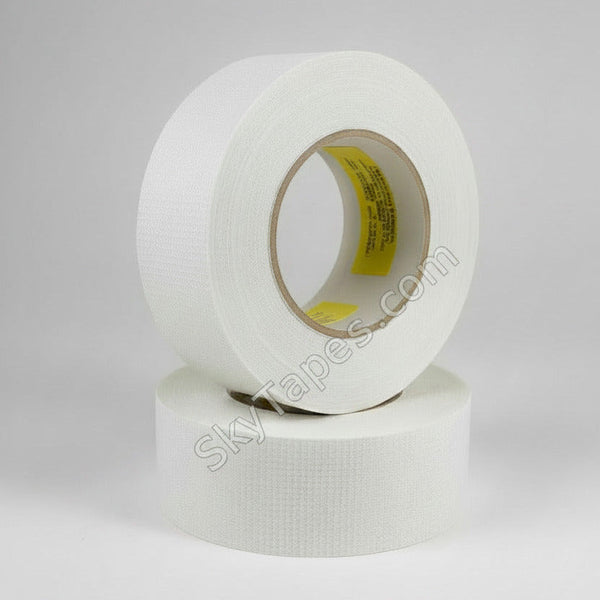

E&H #753-MPE See product for lead time
Metalized PEEK Insulation Blanket Splicing Tape — Grade A, C & E
The highest-grade PEEK blanket tape in the E&H lineup. Adds Grade E to the BMS 5-157 approval, with the shortest published average burn length in this lineup (1.2").
CarrierMetalized PEEK, 10×10 scrim
Weight1.85 oz/sq yd ±0.10
Tensile10.3 lb/in avg
Peel (RT)4.1 lb/in
Burn Length1.2" avg
Shelf Life18 months min
From $39.99
View Product →
All 7 E&H Products — Full Specification Comparison
Click any product name to go directly to that product page
| Specification | 770-3FRD | 770-3FRS | 743-MT | 743-T | 743-BLK | 753-MP | 753-MPE |
|---|---|---|---|---|---|---|---|
| Price | From $54.99 | From $157.50 | From $48.99 | From $72.99 | From $199.99 | From $34.31 | From $39.99 |
| Availability | See product for lead time | See product for lead time | See product for lead time | See product for lead time | See product for lead time | See product for lead time | See product for lead time |
| Carrier Film | Met. Tedlar (PVF) | Met. Polyester | Met. PVF (Tedlar) | White PVF | Black PVF | Met. PEEK | Met. PEEK |
| Color | Dull Gray | Silver/ Gray | Dull Gray | White | Black | Dull Gray | Dull Gray |
| Film Thickness | 0.0005" (0.5 mil) | 0.00025" (0.25 mil) | — | — | — | — | — |
| Scrim Count | 10×10 | 20×10 | 10×10 | 10×10 | 10×10 | 10×10 | 10×10 |
| Adhesive | FR Acrylic PSA | FR Acrylic PSA (0.003" / 3 mil) | FR Acrylic PSA | FR Acrylic PSA | FR Acrylic PSA | FR Acrylic PSA | FR Acrylic PSA |
| Weight (oz/sq yd) | 4.5±0.3 | 3.9 | 3.0 max | 3.0 max | 3.0 max | 1.9±0.3 | 1.85±0.10 |
| Tensile (lb/in avg) | 23.6 | — | 10.3 | 10.3 | 23.6 | 10.3 | 10.3 |
| Peel Adhesion | 152.3 oz/in 30-day | 156.8 oz/in 30-day | 3.2 lb/in RT | 3.6 lb/in RT | 3.8 lb/in RT | 3.8 lb/in RT | 4.1 lb/in RT |
| Burn Length (12-sec vertical) | 3.4" max | 3.9" max | 1.9" max | 2.4" max | 2.8" max | 1.4" avg | 1.2" avg |
| Flame Time | 0 sec | 0 sec | 0 sec | 0 sec | 0 sec | 0 sec | 0 sec |
| Drip Flame Time | None | None | None | None | None | None | None |
| Shelf Life | 12 mo min | 12 mo min | 18 mo min | 18 mo min | 18 mo min | 18 mo min | 18 mo min |
| Boeing BMS 5-157 | — | — | Ty I Cl.1 Gr A MPVF | Ty I Cl.1 Gr A PVF | — | Ty I Cl.2/3 Gr A&C MPEEK | Ty I Cl.2/3 A,C&E MPEEK |
| Gulfstream GAT | — | — | GAT 100FR1 ✓ | GAT 100FR2 ✓ | — | — | — |
| Douglas DMS-1984 | Rev P Ty6 Cl2 | Rev M Ty5 Cl1 | — | — | — | — | — |
| FAR 25.853(A,B) | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| FAR 25.856(A) | ✓ | — | ✓ | ✓ | ✓ | ✓ | ✓ |
| BSS-7230 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| DMS-1511 | ✓ | ✓ | — | — | — | — | — |
Values from E&H technical data sheets. Peel and burn values are reported on different bases across the TDS set (30-day vs. room-temp peel; max vs. avg burn length), so compare like for like. A dash means the value or approval is not listed on that product's TDS.
About E&H Laminating & Slitting Company
An Annitti Enterprises company based in Paterson, NJ, E&H has manufactured aircraft insulation blanket tapes for the aerospace industry for over 30 years.
SkyTapes supplies E&H products and ships from Melbourne, Florida to customers worldwide.
Request a Quote →- All 7 E&H insulation blanket tape variants in one place — see each product for lead time
- Boeing BMS 5-157 (PVF, MPVF, MPEEK) approved products
- Gulfstream GAT100FR1 and GAT100FR2 available
- FAR 25.853(a,b) on all products; FAR 25.856(a) radiant heat panel on all except 770-3FRS
- Certificate of Conformance (CoC) available on request
- Custom slitting and lengths — contact us for a quote
- Domestic and international shipping from Melbourne, FL
-
