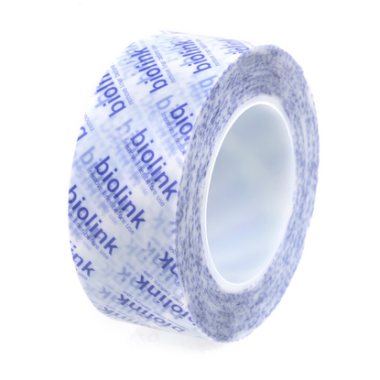

Saint-Gobain® Biolink® relink 2318 B Aircraft Carpet Tape
Saint-Gobain® Biolink® relink 2318 B Aircraft Carpet Tape
Couldn't load pickup availability
Saint-Gobain® Biolink® relink 2318 B is a double-sided, differentially coated adhesive carpet tape engineered for the aircraft industry. The permanent (closed) side uses a high-deposition modified acrylic adhesive that bonds securely to all carpet backings, while the removable side provides clean, residue-free peel removability — even after extended service. The Airbus-approved choice for bonding aircraft carpet to composite floor panels, it shortens maintenance times by removing in one piece with no scraping or solvent clean-up.
Designed so the tape is first applied to the floor panel and then bonded to the carpet, its removable adhesive delivers good tack and shear for solid initial repositionability, preventing edge lift and seam slip throughout the life of the installation. The differential adhesive system holds the carpet firmly while still peeling cleanly from the floor panel and load-bearing floor (LBF), with excellent resistance to aging, weathering, elevated temperature, and humidity. (For PSA-backed carpet set production, the permanent adhesive is available on the open side as version A.)
Manufacturer's Certificate of Conformance included FREE of charge.
Key Features
- Differential double-sided construction — One very high-adhesion permanent side and one clean-peel removable side for carpet-to-floor bonding
- Excellent, secure adhesion — High-deposition modified acrylic bonds to all carpet backings and composite floor panels
- Residue-free removability — Clean peel removal in one piece from floor panel and LBF; no scraping or solvent clean-up
- Repositionable — Good initial tack and shear prevent edge lift and seam slip during installation
- Environmental resistance — Excellent resistance to aging, weathering, elevated temperature, and humidity
- Airbus approved — Qualified to AIMS 10-05-014, procurable to ABS 5648B (Airbus CML #08-118)
- Flame tested — Tested and approved per FAR/JAR/CS 25.853(a) Appendix F Part 1
Applications
- Bonding aircraft carpet to composite floor panels in aircraft interiors
- Carpet seam securing to prevent edge lift and seam slip
- Bonding to rough, structured, or textured surfaces — plastics, textiles, and nonwovens
- MRO and routine cabin refurbishment requiring clean, fast carpet removal
- PSA-backed carpet set production (version A)
Specifications
| Construction | Double-sided, differentially coated adhesive tape |
| Liner | Polypropylene film, white printed — 0.080 mm |
| Adhesive, closed (permanent) side | Modified acrylic, transparent — 0.150 mm |
| Carrier | Polyester film, transparent — 0.023 mm |
| Adhesive, open (removable) side | Removable acrylic, transparent — 0.040 mm |
| Total thickness | 0.213 mm (excludes liner) |
| 180° peel adhesion on steel (AFERA 5001) | Removable side: 13 N/25mm | Permanent side: 40 N/25mm |
| 180° peel adhesion on glass | Removable side: 11 N/25mm | Permanent side: 40 N/25mm |
| 180° peel adhesion on PMMA | Removable side: 12 N/25mm | Permanent side: 37 N/25mm |
| Operating temperature range | −40°C to +70°C (−40°F to +158°F) |
| Short-term temperature range | Up to +120°C (+248°F) |
| Application temperature | 15°C to 40°C; apply at 100–150 kPa uniform pressure (not recommended below 15°C) |
| Final adhesion | Builds slowly; typically achieved after 72 hours (accelerate by heating above 40°C) |
| Color | Transparent (white printed liner) |
| Shelf life | Up to 24 months from purchase, stored in original packaging at up to 21°C and 50% R.H., out of direct sunlight |
| Standard roll sizes | 25mm × 50m; 50mm × 25m or 50m; 100mm × 25m or 50m (other sizes on request, not ABS 5648B specified) |
Product Attributes
| Manufacturer | Saint-Gobain Tape Solutions (Biolink®) |
| Manufacturer P/N | relink 2318 B |
| Article Number | 3755 |
| Airbus CML No. | 08-118 |
| Color Family | Clear |
| Pack Quantity | 1 Roll or Case |
Certifications & Approvals
- Airbus — Qualified to AIMS 10-05-014 (Issue 5); IPS 10-05-014-01 (Issue 5)
- Airbus — Procurable to ABS 5648B (Issue 12); Consumable Material List CML #08-118
- FAR/JAR/CS 25.853(a) — Appendix F Part 1, (a)(1)(ii) tested and approved for aircraft interior use
- Current lots ship with a Saint-Gobain Certificate of Conformance
