Surface Protection Tapes
Protex Mask-Off papers and films and Patco protection tapes for aircraft skins, windows, composites, cabin interiors and leading edges — Boeing BAC 5034, Airbus AIMS and FAR 25.853(a) grades, ready to ship from SkyTapes.
6Products In Stock
BAC 5034Type IV Qualified
FRFAR 25.853(a) Option
From $119.99Lowest Price
Surface protection tapes and papers shield aircraft skins, windows, composites and interior finishes from scratches, impact, solvents and weather during fabrication, assembly, maintenance and storage — then peel away cleanly. Choose a protective paper for opaque, impact-resistant coverage you can drill and rivet through, a transparent film when the part must stay visible, or a specialty tape for flame-retardant cabin work or exterior leading edges. Four of the six are qualified to Boeing BAC 5034 Type IV.
Surface Protection — Papers, Films & Tapes
6 products
Protex 5Fab & Assembly
Protex Mask-Off
Latex-Saturated Protection Paper — 4.1–5.1 Mil | BAC 5034 Type IV
The standard protective paper for exterior aluminum skins during fabrication and assembly. Stays in place while you route, drill, countersink and rivet through it, and protects bare aluminum, titanium, stainless and painted parts. Red "Scratches Cause Rejections" print; flat liner for die-cut shapes.
BackingLatex-saturated paper
AdhesiveNatural latex, silicone-free
Thickness4.1–5.1 mil
Tensile Strength12.7 lb/in min.
Adhesion to Steel17–22 oz/in
Rolls12–48" x 60 yd
ColorNatural w/ red print
PriceFrom $119.99
Protex 10VAbrasion
Protex Mask-Off
Vinyl-Coated Protective Paper — 10 Mil | BAC 5034 Type IV
A vinyl-coated face adds abrasion resistance over standard paper. Used to shield acrylic and polycarbonate windows, canopies and windshields, bare and painted metal, and for paint masking, leading edge and wing-walk protection during maintenance. Highest tensile strength of the Protex papers.
BackingLatex-sat. paper, vinyl coated
AdhesiveNatural latex, silicone-free
Thickness10 mil nominal
Tensile Strength35–45 lb/in min.
Adhesion to Steel30–40 oz/in
Rolls12–48" x 60 yd
ColorTan
PriceFrom $199.99

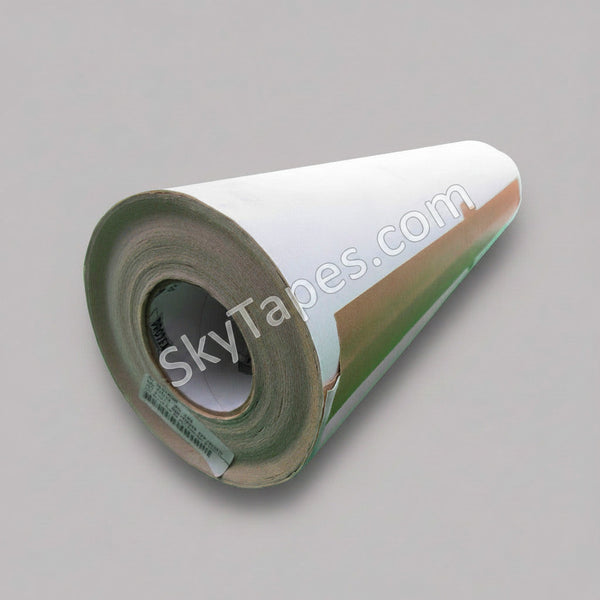

Protex 20VImpact
Protex Mask-Off
Heavy-Duty Vinyl-Coated Protective Paper — 20 Mil | BAC 5034 & AIMS 12-6-001
The thickest protection in the range, built to guard graphite composite surfaces and tooling against impact. Also protects windows, canopies, bare and painted metal, leading edges and wing walks. Qualified to both Boeing and Airbus specs.
BackingLatex-sat. paper, vinyl coated
AdhesiveNatural latex, silicone-free
Thickness20 mil nominal
Tensile Strength25 lb/in min.
Adhesion to Steel30–40 oz/in
Rolls12–48" x 30 yd
ColorWhite
PriceFrom $139.99
Protex 8216-2LTransparent
Protex Mask-Off
Transparent UV Polyester Protective Film — 2 Mil | BAC 5034 & AIMS 12-6-001
Green-tinted clear polyester film for when parts must stay visible for inspection. Low-tack, silicone-free acrylic adhesive removes cleanly from acrylic, polycarbonate, glass, metal and paint. UV resistant and rated to 325°F, so it doubles as high-temp masking. Not for fly-away use.
BackingPolyester film, green tint
AdhesiveLow-tack acrylic, silicone-free
Thickness2 mil film
Adhesion to Steel1–3 oz/in (low tack)
Elongation106%
TemperatureUp to 325°F
Rolls12–48" x 100 yd
PriceFrom $219.99

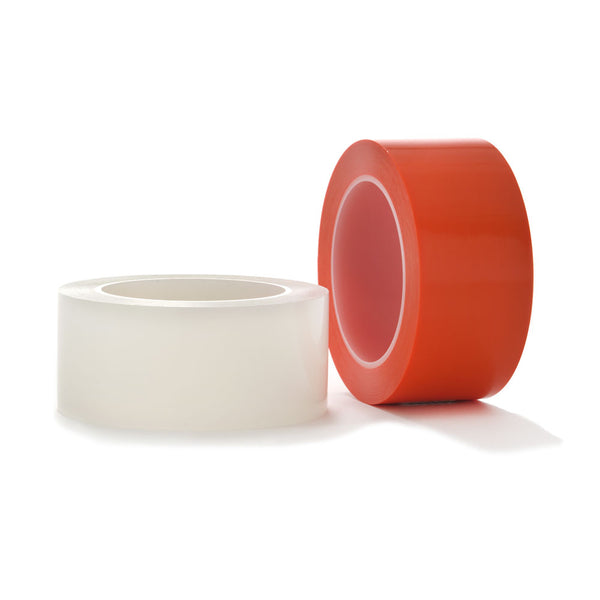

Patco 5565FRCabin / FR
Patco
Flame-Retardant Surface Protection Tape — 5.5 Mil | FAR 25.853(a)
Removable, flame-retardant LDPE film for protecting aircraft interior materials from abrasion, solvents and moisture during maintenance and cabin refurbishment. Masks trim, panels, monuments, windows, placards and decorative laminates, then removes cleanly from most surfaces. Highly conformable at 500% elongation. Sold by the case.
BackingLDPE film
AdhesiveAcrylic, solvent resistant
Thickness5.5 mil
Tensile Strength12 lb/in
Elongation500%
Temperature−40°F to 190°F
ColorClear or Orange
Price (case)$278.28

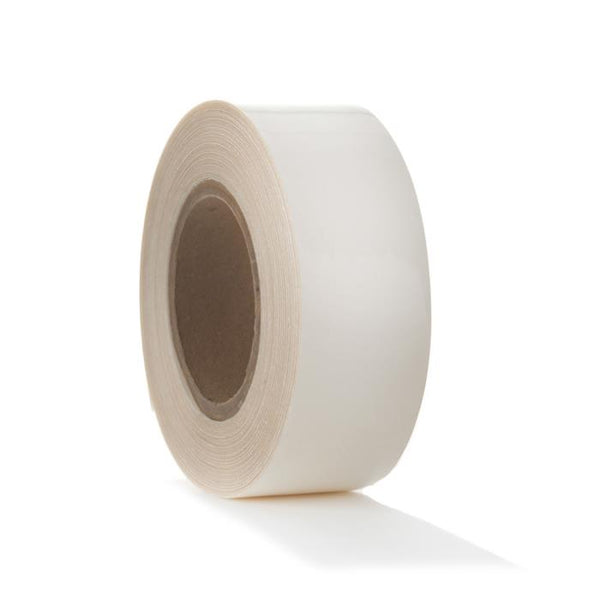

Patco 8300Exterior
Patco
Polyurethane Leading Edge Protective Tape — 14.5 Mil | Fokker FK05-193
Clear, non-yellowing polyurethane film for exterior protection: wing, strut and stabilizer leading edges, rain erosion and abrasion, and UV protection during outdoor storage. Very aggressive acrylic bond (110 oz/in) with an 80 lb/in film; stays transparent for inspection and can be die-cut for fairings and high-wear points.
BackingPolyurethane film
AdhesiveAcrylic
Thickness14.5 mil
Tensile Strength80 lb/in
Adhesion to Steel110 oz/in
Temperature−40°F to 275°F
Rolls2–5" x 36 yd
PriceFrom $412.63
All 6 Surface Protection Products — Specification Comparison
Click any product name to go directly to that product page on SkyTapes.com
| Specification | Protex 5 | Protex 10V | Protex 20V | Protex 8216-2L | Patco 5565FR | Patco 8300 |
|---|---|---|---|---|---|---|
| Type | Paper | Paper, vinyl coated | Paper, vinyl coated | Polyester film | LDPE film | Polyurethane film |
| Adhesive | Natural latex | Natural latex | Natural latex | Low-tack acrylic | Acrylic | Acrylic |
| Thickness | 4.1–5.1 mil | 10 mil | 20 mil | 2 mil | 5.5 mil | 14.5 mil |
| Tensile Strength | 12.7 lb/in | 35–45 lb/in | 25 lb/in | 30,000 psi/mil | 12 lb/in | 80 lb/in |
| Adhesion to Steel | 17–22 oz/in | 30–40 oz/in | 30–40 oz/in | 1–3 oz/in | — | 110 oz/in |
| Elongation | 6% | 3% | 10% | 106% | 500% | — |
| Temperature | — | — | — | Up to 325°F | −40 to 190°F | −40 to 275°F |
| Transparent | — | — | — | ✓ | ✓ Clear option | ✓ |
| UV Resistant | — | — | — | ✓ | — | ✓ |
| Flame Retardant | — | — | — | — | ✓ FAR 25.853(a) | — |
| Boeing BAC 5034 | Type IV | Type IV | Type IV | Type IV | — | — |
| Other Specs | NSN listed | NSN listed | AIMS 12-6-001 | AIMS 12-6-001 | — | Fokker FK05-193 |
| Die-Cuttable Liner | ✓ | ✓ | ✓ | ✓ | — | ✓ |
| Roll Sizes | 12–48" x 60 yd | 12–48" x 60 yd | 12–48" x 30 yd | 12–48" x 100 yd | 2–6" x 36 yd | 2–5" x 36 yd |
| Color | Natural / red print | Tan | White | Clear, green tint | Clear or Orange | Clear |
| Best For | Skins during fab & riveting | Windows, canopies, abrasion | Composite & tooling impact | Visible parts, 325°F masking | Cabin interiors, FR required | Exterior leading edges |
| Price | From $119.99 | From $199.99 | From $139.99 | From $219.99 | $278.28 (case) | From $412.63 |
"—" means the value is not published on the product data sheet. Protex prices are per roll; Patco 5565FR is sold by the case. Always test on an inconspicuous area first.
Which Surface Protection Do I Need?
Start with where the part is: on the shop floor, in the cabin, or outside on the ramp. Then decide whether you need to see through the protection and which spec your work order calls out.
New to these products? Read our Protex guide or Patco guide, or ask us to match a product to your spec.
Ask Our Team →- Skins during fab, drilling & riveting: Protex 5 — BAC 5034 Type IV
- Windows, canopies & abrasion: Protex 10V vinyl-coated
- Composites & tooling, impact protection: Protex 20V — Boeing & Airbus
- Part must stay visible / up to 325°F: Protex 8216-2L clear film
- Cabin interiors, flame retardant required: Patco 5565FR — FAR 25.853(a)
- Exterior leading edges & rain erosion: Patco 8300 polyurethane
- All in stock — ready to ship from SkyTapes
-
