Protex 5 Mask-Off Protection Paper
BAC 5034 Type IV · Class 1 · Grade A
Latex-saturated paperNatural latex, silicone-free4.1–5.1 mil
- BAC 5034 Type IV
- Boeing BAC5034-4 material selection machining
- Boeing BAC5034-4 material selection shop handling
- Federal NSN 8135-00-946-2090
- Manufacturer quality Mask-Off is AS9100C
- Manufacturer quality ISO 9001:2008 certified
- COC Included
Couldn't load pickup availability

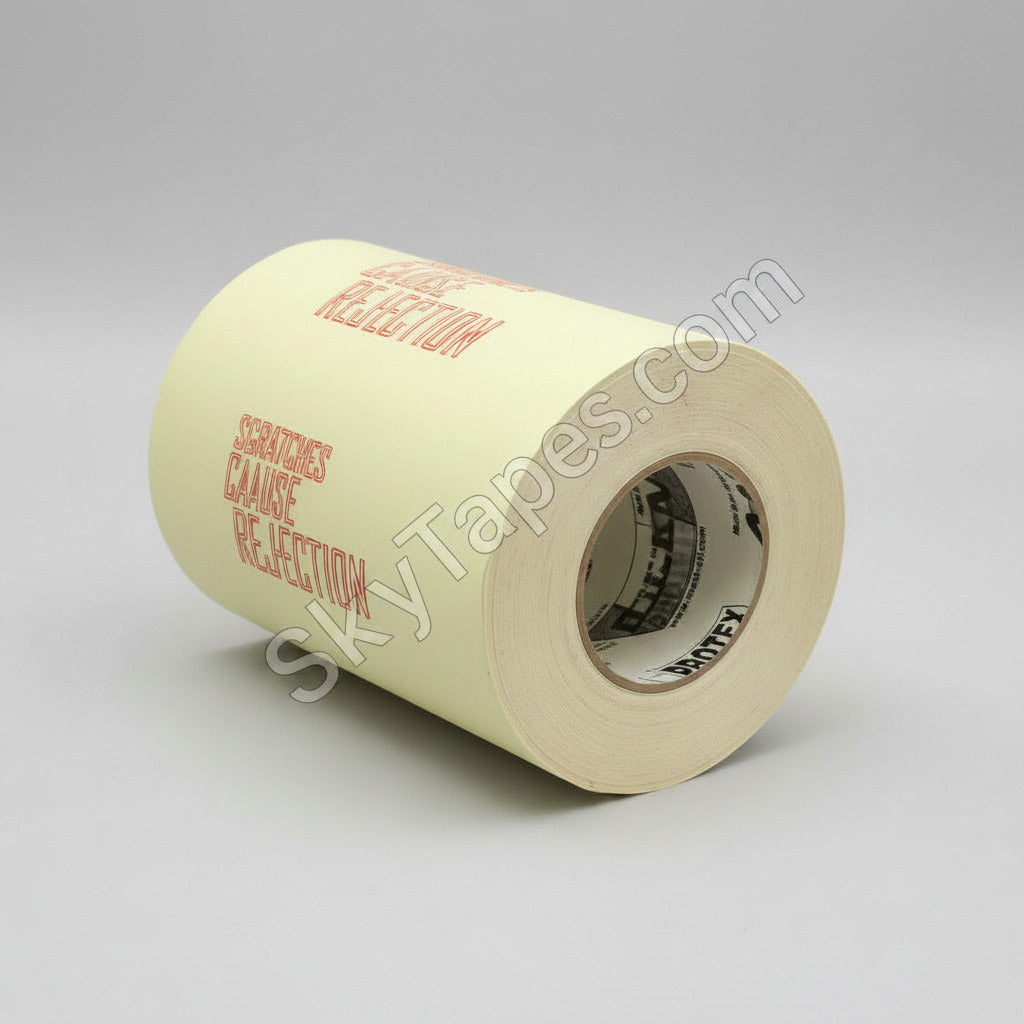

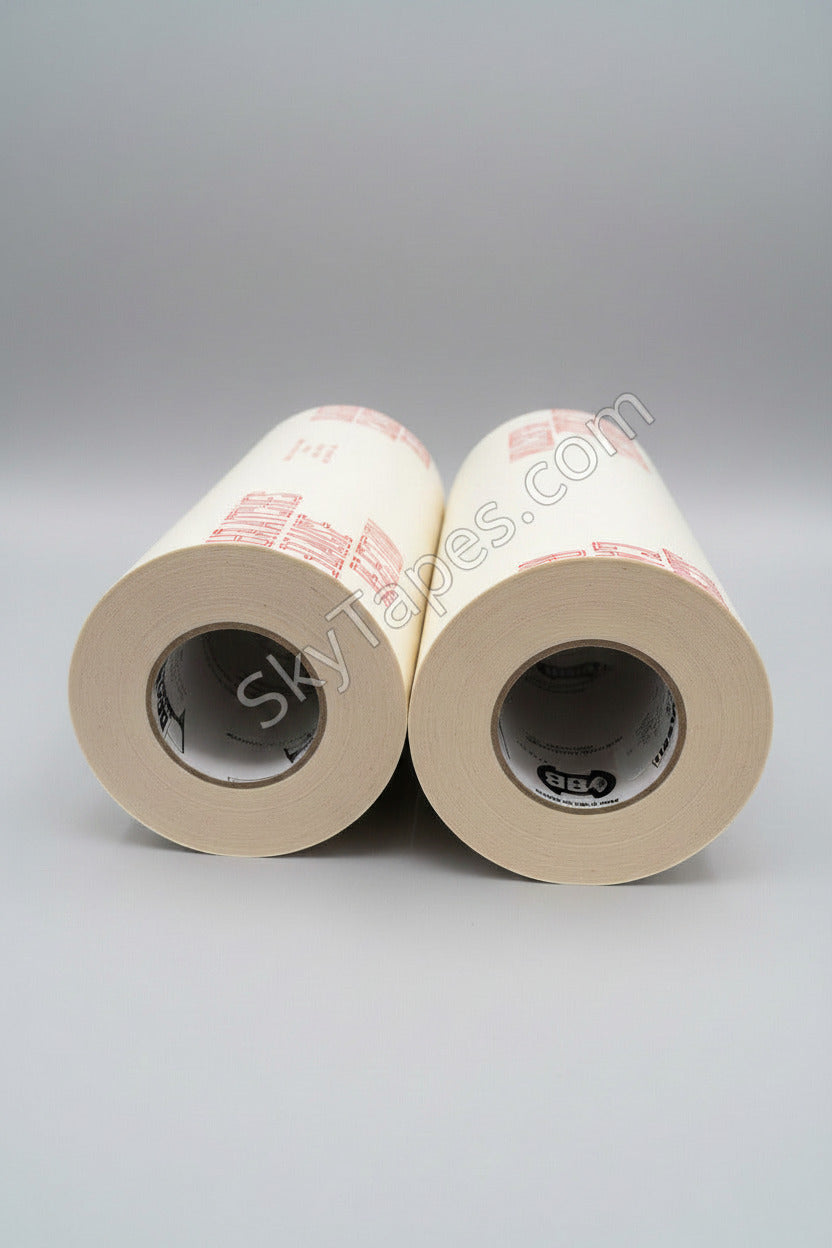

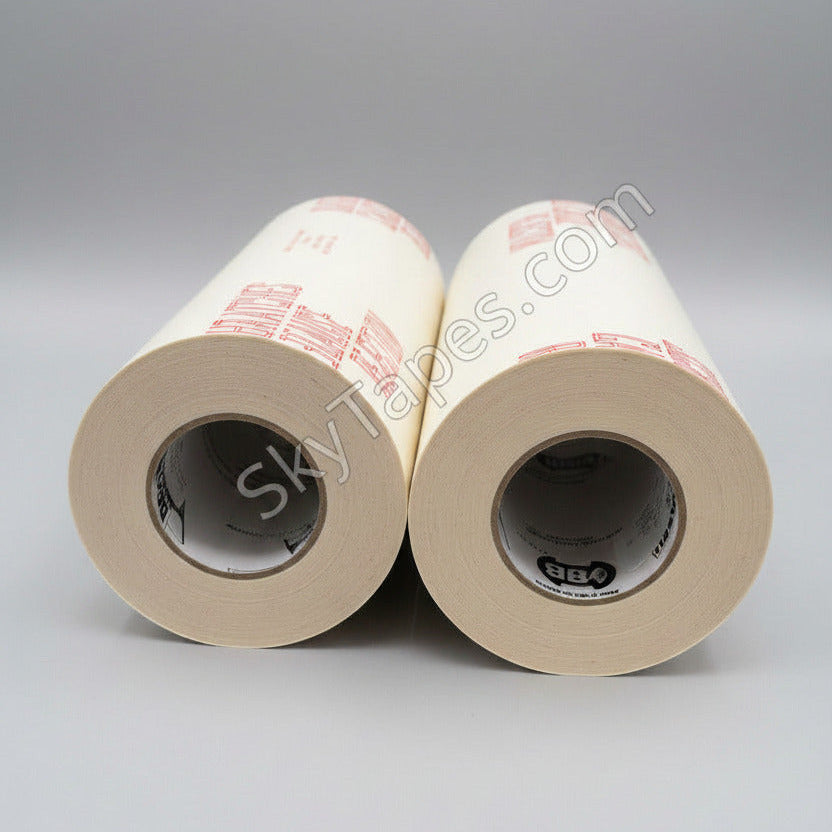

Protex 5 is a 4–5 mil latex-saturated protective paper with a silicone-free natural latex adhesive, printed in red with "SCRATCHES CAUSE REJECTIONS — HANDLE WITH CARE" — the aerospace scratch-protection paper qualified to Boeing BAC 5034 Type IV, Class 1, Grade A for protecting aluminum skins during fabrication and assembly. Surfaces can be routed, drilled, countersunk, and riveted right through the paper without removing it, and the 17–22 oz/in adhesive holds on aluminum, titanium, stainless steel, and painted surfaces without damaging them. A flat release liner makes it die-cuttable into custom shapes. Available in Natural with red print in 12", 16", 24", and 48" widths on 60-yard rolls.
Manufacturer's Certification included FREE of charge.
Key Features of Protex 5 Protective Paper
- Fabrication-ready protection — Route, drill, countersink, and rivet through the paper without removing it
- 17–22 oz/in natural latex adhesive, 4.1–5.1 mil — Lightweight paper that holds on aluminum, titanium, stainless steel, and painted surfaces
- "Scratches Cause Rejections" red print — A shop-floor reminder that keeps crews careful around finished surfaces
- Silicone-free and die-cuttable — No silicone contamination ahead of paint or bonding; flat liner converts into custom shapes
- Boeing BAC 5034 qualified — Type IV, Class 1, Grade A; NSN 8135-00-946-2090
What Is Protex 5 Used For?

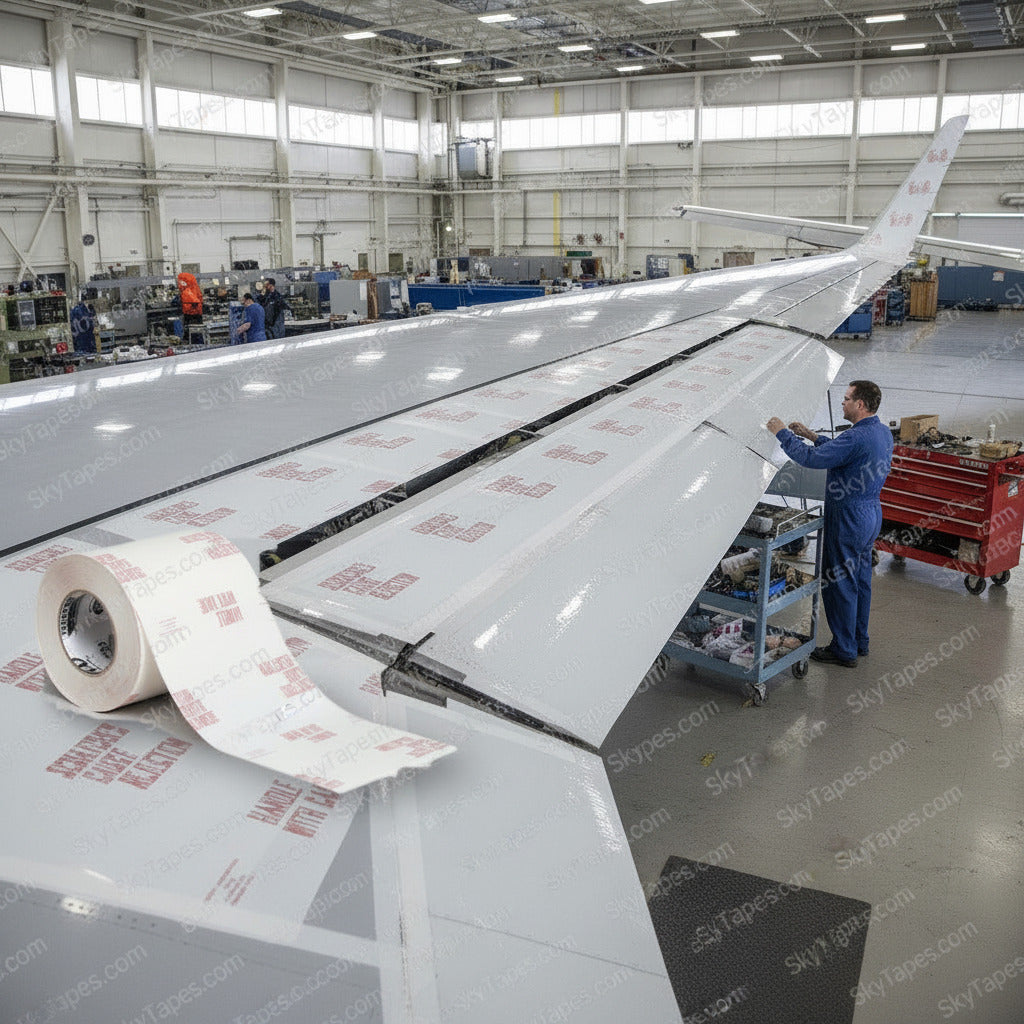

- Exterior aluminum skin protection during aircraft fabrication and assembly
- Bare aluminum, titanium, and stainless steel surface protection
- Surfaces that are routed, drilled, countersunk, and riveted through the paper
- Painted surface protection during fabrication and transport
- Die-cut custom protection pieces for precision aerospace components
- Electronic cabinetry scratch prevention during manufacturing
Key Specifications
| Backing | Latex-saturated paper |
|---|---|
| Adhesive | Natural latex, silicone-free (single-coated) |
| Liner | Flat release liner (die-cuttable) |
| Total thickness | 4.1–5.1 mil |
| Weight | 42–49 lb / 3,000 sq ft (basis weight) |
| Tensile strength | 12.7 lb/in min. (MD) |
| Adhesion to steel | 17–22 oz/in — PSTC-1 (Modified) |
| Elongation | 6.0% min. (MD) |
| Elmendorf tear | 56 g min. (MD and CD) |
| Colors | Natural with red "SCRATCHES CAUSE REJECTIONS — HANDLE WITH CARE" print |
| Performance | Scratch and abrasion protection; drill-, rivet-, and route-through; silicone-free; not for fly-away use |
| Shelf life | 1 year, stored in a cool, dry place out of direct sunlight |
| Manufacturer P/N | Protex 5 (also MO5) |
| Brand | Protex (Mask-Off Company, Inc.) |
| Country of Origin | United States |
Why This Tape Matches Your Spec
Boeing BAC 5034 classifies pressure-sensitive surface protection and masking materials as Type IV, with Class and Grade setting the performance band. Protex 5 is qualified to BAC 5034 Type IV, Class 1, Grade A.
- Exterior aluminum skin protection during aircraft fabrication and assembly
- Bare aluminum, titanium, and stainless steel surface protection
- Surfaces that are routed, drilled, countersunk, and riveted through the paper
- Painted surface protection during fabrication and transport
- Die-cut custom protection pieces for precision aerospace components
- Electronic cabinetry scratch prevention during manufacturing
Approvals & Certifications
Available Sizes
Spec Guide
Frequently Asked Questions
What is Protex 5 used for?
Protex 5 prevents scratches and abrasion on bare aluminum, titanium, stainless steel, and painted surfaces during aircraft fabrication and assembly, including exterior aluminum skins and electronic cabinetry.
Can you drill and rivet through Protex 5?
Yes. Surfaces can be routed, drilled, countersunk, and riveted right through Protex 5 without removing the paper.
Why is Protex 5 printed with a red warning?

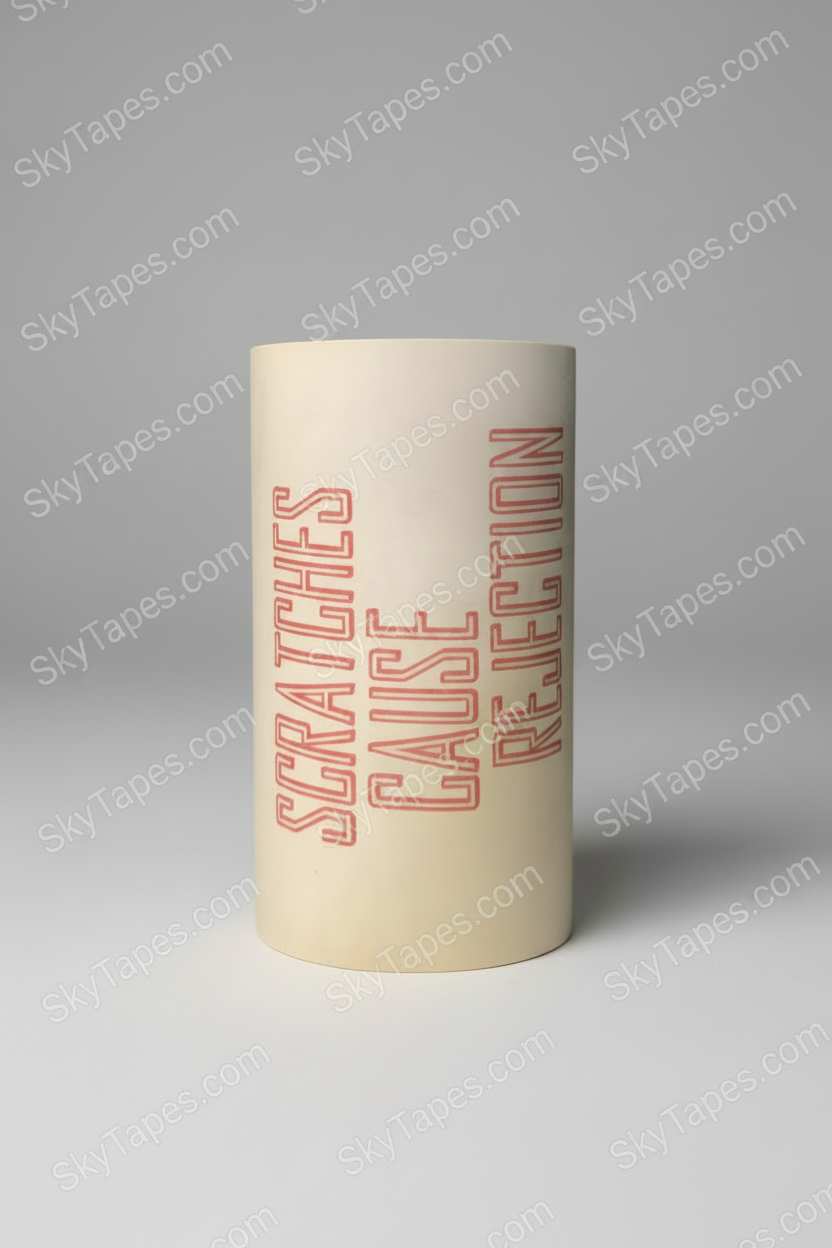

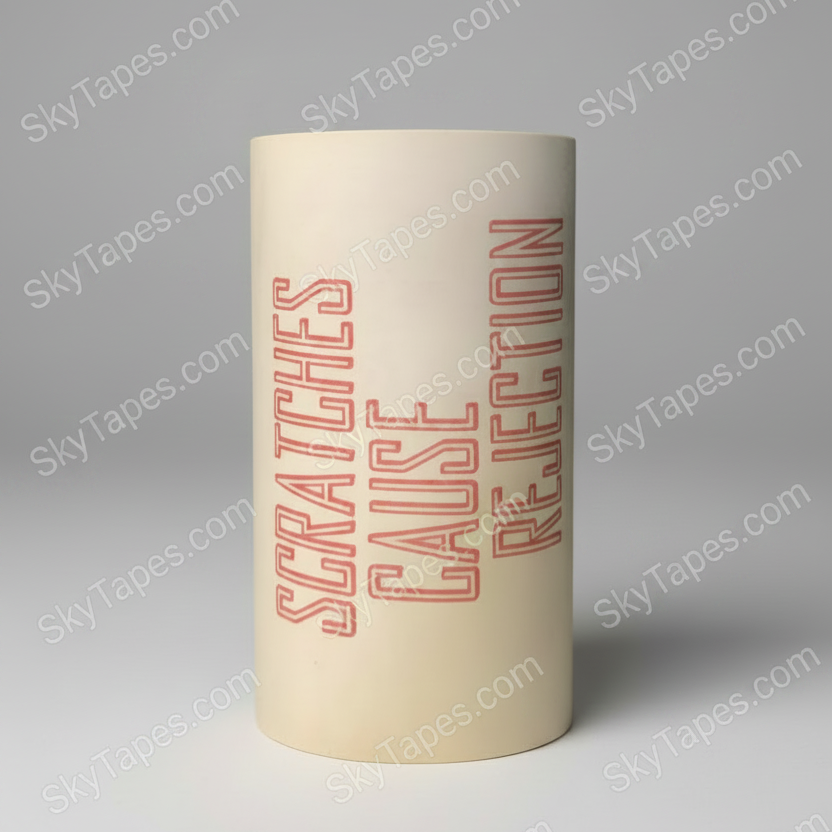

The red "SCRATCHES CAUSE REJECTIONS — HANDLE WITH CARE" print is a shop-floor reminder that keeps crews careful around finished surfaces and helps prevent costly part rejections.

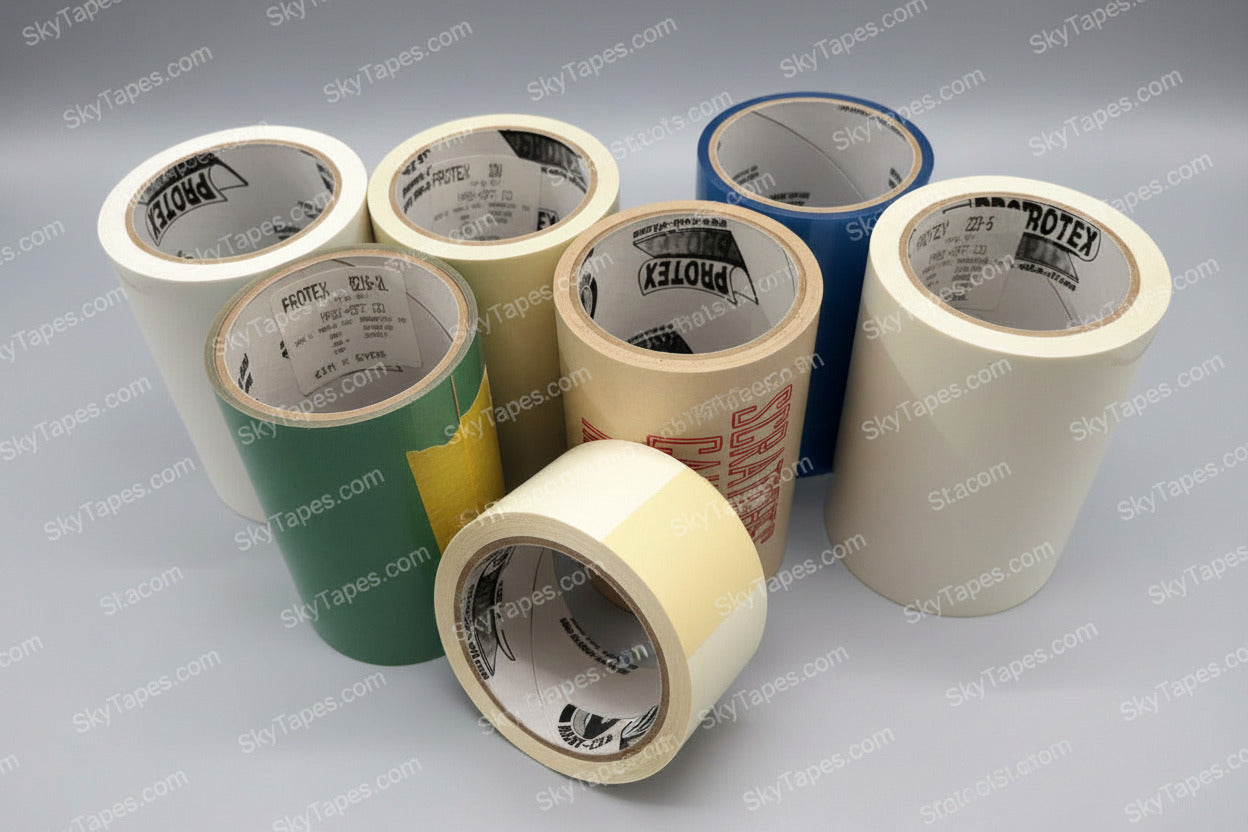

Should I use Protex 5, 10V, or 20V?
All three are qualified to Boeing BAC 5034 Type IV, Class 1, Grade A, so choose by the job. Protex 5 suits aluminum skins during drilling and riveting, Protex 10V suits windows and canopies needing abrasion resistance, and Protex 20V suits heavy-duty impact protection on composites.
Is Protex 5 flame retardant and aircraft approved?
Protex 5 is a temporary process protection material, not a fly-away part, so it is not sold as a flame-retardant interior tape. It is qualified to Boeing BAC 5034 Type IV, Class 1, Grade A and carries NSN 8135-00-946-2090.
What sizes does Protex 5 come in?
Protex 5 comes in 12", 16", 24", and 48" widths on 60-yard rolls, and its flat liner makes it die-cuttable into custom shapes.
What is the shelf life of Protex 5?
Protex 5 has a 1-year shelf life from DOM when stored in a cool, dry place out of direct sunlight.
Where is Protex 5 used on Boeing aircraft?
Mask-Off reports existing Boeing applications for Protex 5 at Renton and Everett, including cabin interior monuments, stow bins, outer wing rib protection, and IRC applications.
Which BAC5034-4 tables list Protex 5?
Mask-Off lists Protex 5 in BAC5034-4 Table IV — Type VII manufacturing protection for Class 1 mechanical processing conditions, machining, and shop handling.
