Protex 8216-2L Transparent UV Polyester Protective Film
BAC 5034 Type IV · Class 1 · Grade A
Transparent polyester film, tinted greenAcrylic, low tack, silicone-free2 mil
- BAC 5034 Type IV
- Boeing BAC5034-4 material selection BMS 15-12 Type I
- Boeing BAC5034-4 material selection metal surfaces with organic coatings
- Boeing BAC5034-4 material selection assemblies (bare
- Boeing BAC5034-4 material selection painted aluminum
- Boeing BAC5034-4 material selection BMS 15-12 Type I
- Boeing BAC5034-4 material selection metal surfaces with organic coatings)
- Boeing BAC5034-4 material selection machining
- COC Included
Couldn't load pickup availability

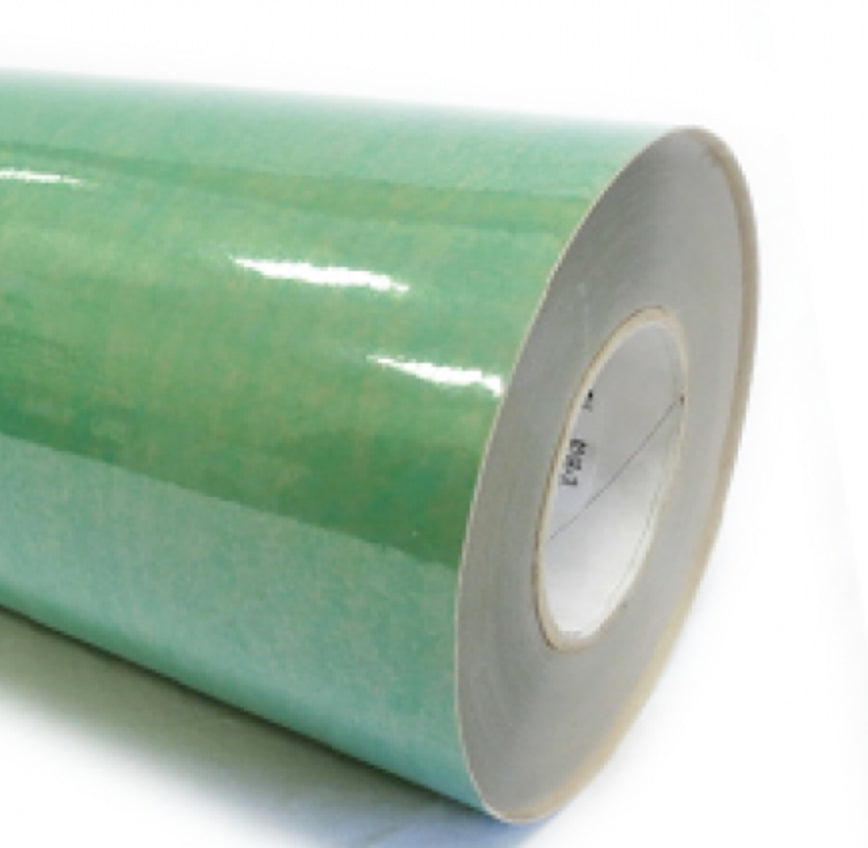

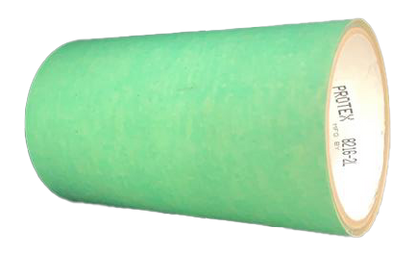

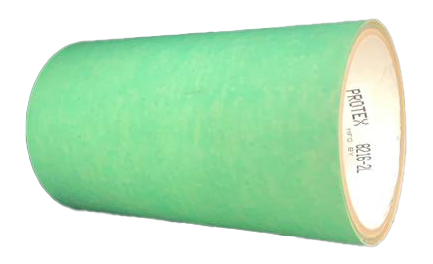

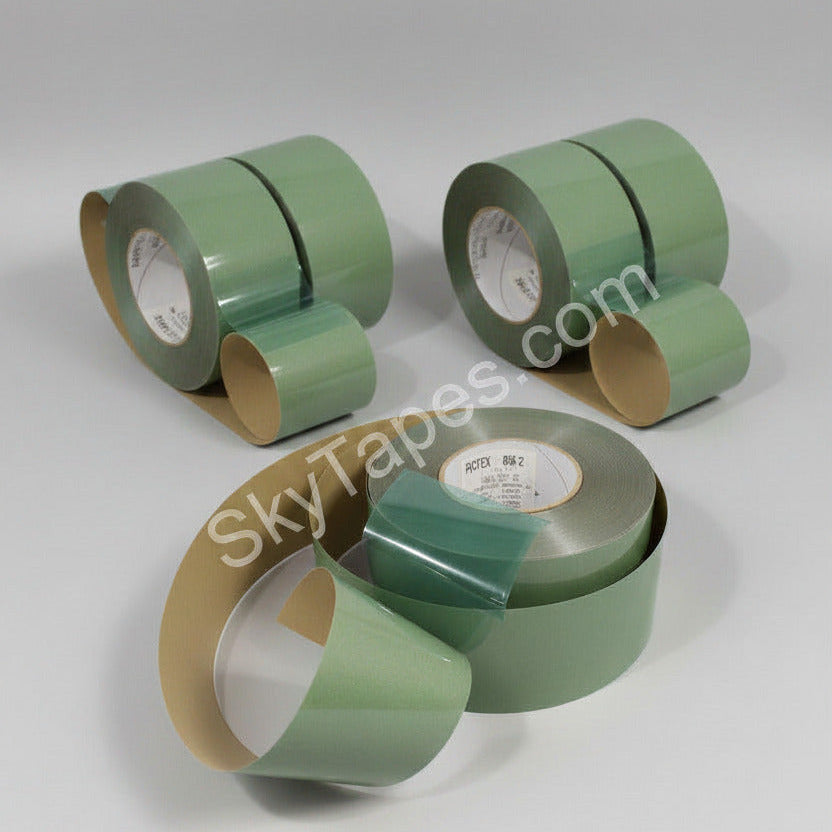

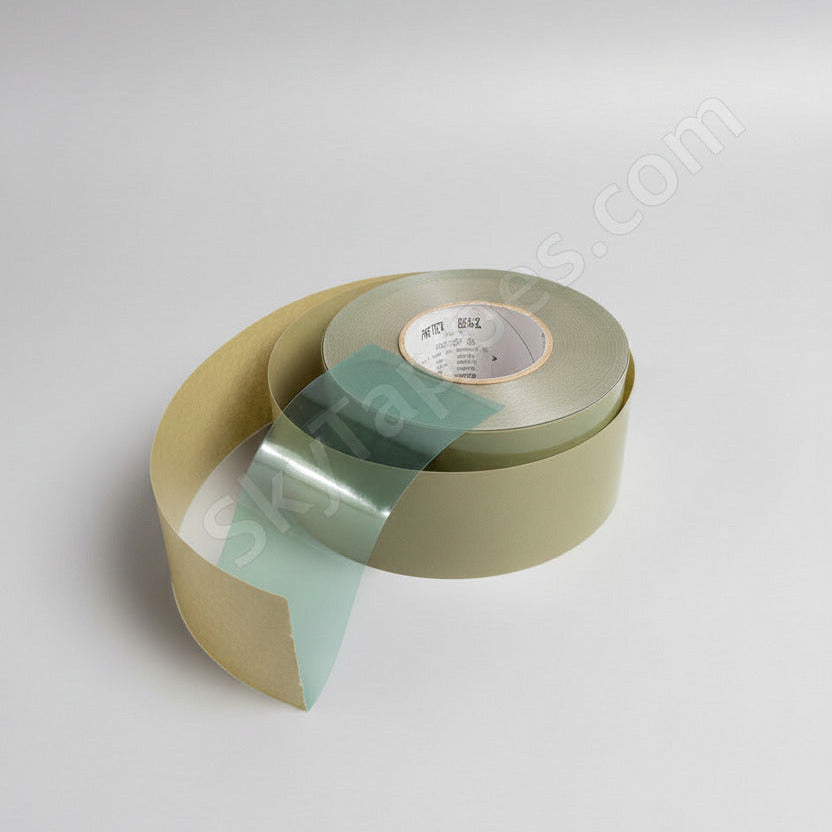

Protex 8216-2L is a 2 mil transparent, green-tinted polyester film with a low-tack, silicone-free acrylic adhesive — the see-through aerospace protective film qualified to Boeing BAC 5034 Type IV, Class 1, Grade A and Airbus AIMS 12-6-001 for protecting acrylic, polycarbonate, glass, metal, and painted surfaces. Because the film is transparent, parts can be inspected through it without removal, and it withstands temperatures up to 325°F with UV resistance for extended protection. The 1–3 oz/in adhesive removes cleanly, and a flat release liner makes it die-cuttable into custom shapes. Available in tinted green in 12", 16", 24", and 48" widths on 100-yard rolls.
Manufacturer's Certification included FREE of charge.
Key Features of Protex 8216-2L Protective Film
- Transparent 2 mil polyester film — Inspect parts through the film during any process without removing it
- 1–3 oz/in low-tack acrylic adhesive — Gentle hold and clean, silicone-free removal from acrylic, glass, and painted surfaces
- 325°F temperature rating — Stays in place through high-temperature masking and processing
- UV resistant and die-cuttable — Suited to extended protection and rotary die cutting into custom pieces
- Boeing and Airbus qualified — BAC 5034 Type IV, Class 1, Grade A; Airbus AIMS 12-6-001
What Is Protex 8216-2L Used For?
- Surface protection during fabrication where parts must stay visible
- Protecting acrylic, plexiglass, polycarbonate, and glass

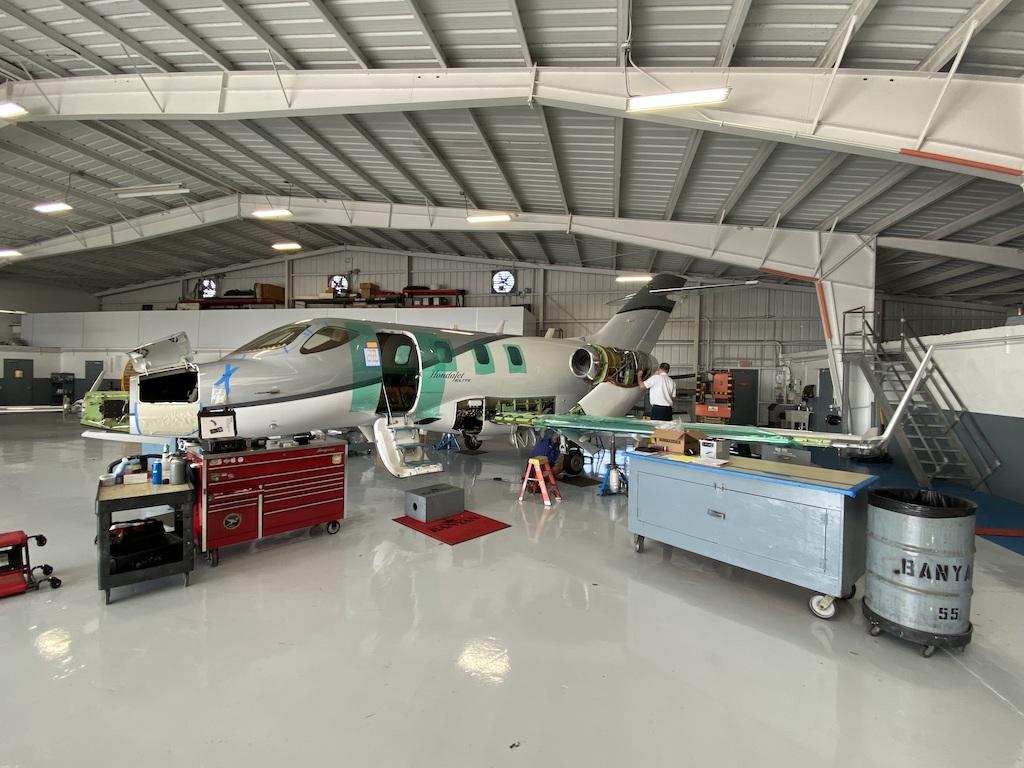

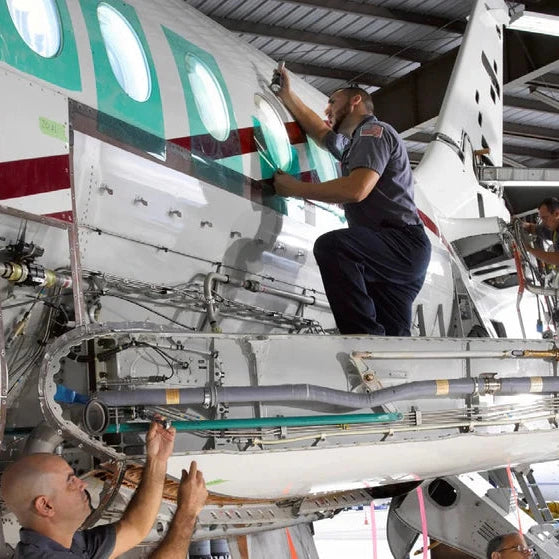

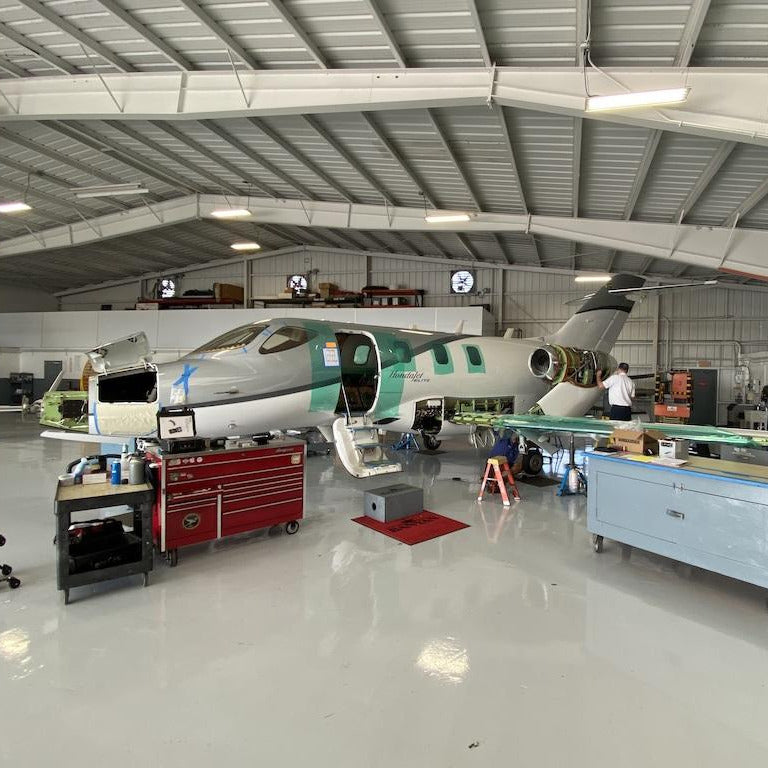

- Metal and painted surface protection in aerospace manufacturing and MRO
- High-temperature masking up to 325°F
- Rotary die cutting and custom pre-cut protection pieces
- Marine, automotive, electronics, and industrial surface protection
Key Specifications
| Backing | Transparent polyester film, tinted green |
|---|---|
| Adhesive | Acrylic, low tack, silicone-free (single-coated) |
| Liner | Flat release liner (die-cuttable) |
| Total thickness | 2 mil (film) |
| Tensile strength | 30,000 psi/mil |
| Adhesion to steel | 1–3 oz/in — PSTC-1 (Modified) |
| Elongation | 106% at break |
| Elmendorf tear | 15 g |
| Operating temperature | Up to 325°F (163°C) |
| Colors | Transparent, tinted green |
| Performance | Transparent; UV resistant; low tack; clean removal; silicone-free; excellent resistance to toluene, MEK, alcohols, and trichloroethylene (Mask-Off test results); not for fly-away use |
| Shelf life | 1 year, stored in a cool, dry place out of direct sunlight |
| Manufacturer P/N | Protex 8216-2L (also MO8216-2L) |
| Brand | Protex (Mask-Off Company, Inc.) |
| Country of Origin | United States |
Why This Tape Matches Your Spec
Boeing BAC 5034 classifies pressure-sensitive surface protection and masking materials as Type IV, with Class and Grade setting the performance band. Protex 8216-2L is qualified to BAC 5034 Type IV, Class 1, Grade A. It is also qualified to Airbus AIMS 12-6-001.
- Surface protection during fabrication where parts must stay visible
- Protecting acrylic, plexiglass, polycarbonate, and glass
- Metal and painted surface protection in aerospace manufacturing and MRO
- High-temperature masking up to 325°F
- Rotary die cutting and custom pre-cut protection pieces
- Marine, automotive, electronics, and industrial surface protection
Approvals & Certifications
Available Sizes
Spec Guide
Frequently Asked Questions
What is Protex 8216-2L used for?
Protex 8216-2L is a transparent protective film for acrylic, polycarbonate, glass, plastics, metals, and painted surfaces during fabrication and MRO. Because it's see-through, parts can be inspected without removing the film.
How is Protex 8216-2L different from Protex paper grades?
Protex 8216-2L is a 2 mil transparent polyester film, not a latex-saturated paper. It adds visibility, low tack, UV resistance, and a 325°F rating, while Protex 5, 10V, and 20V are opaque papers built for scratch, abrasion, and impact protection.
Where is Protex 8216-2L used on Boeing aircraft?

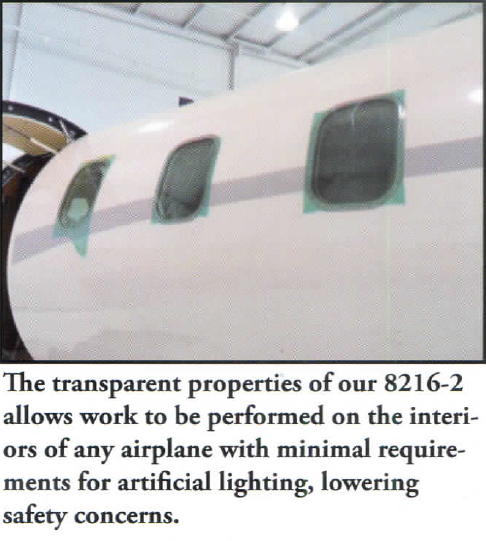

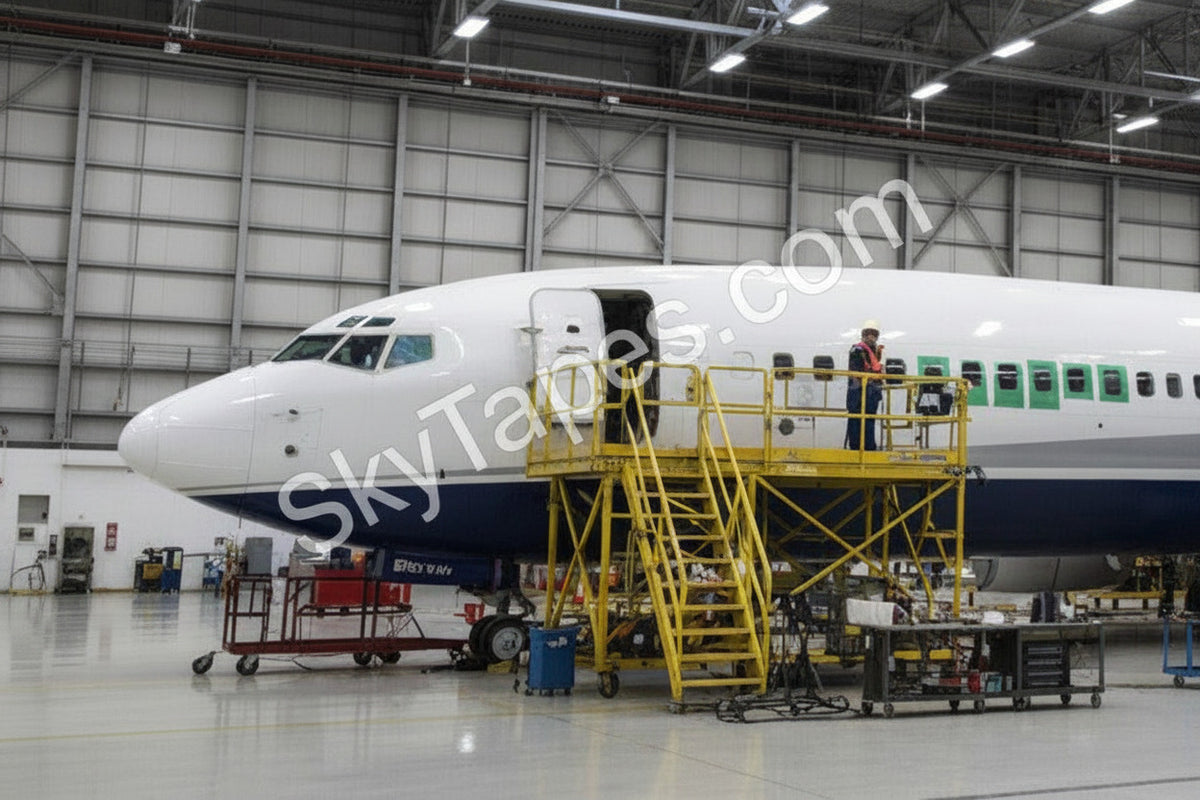

Mask-Off reports existing Boeing applications for Protex 8216-2L at Charleston, Renton, and Everett, including flight deck windows and galley countertops.
Which BAC5034-4 tables list Protex 8216-2L?
Mask-Off lists Protex 8216-2L in BAC5034-4 Table II — Type V storage protection (aluminum, BMS 15-12 Type I, Class 1 coated); Table III — transportation protection for detail parts, metal surfaces with organic coatings, and assemblies (bare and painted aluminum, BMS 15-12 Type I, Class 1 coated aluminum, and metal surfaces with organic coatings); Table IV — Type VII manufacturing protection for Class 1 mechanical processing conditions, machining, and shop handling.
Is Protex 8216-2L low-tack and residue-free?
Yes. Its low-tack, silicone-free acrylic adhesive (1–3 oz/in) gives a gentle hold and removes cleanly.
What temperature can Protex 8216-2L handle?
Protex 8216-2L is rated for temperatures up to 325°F, so it can stay in place through high-temperature masking and processing.
Is Protex 8216-2L flame retardant and aircraft approved?
Protex 8216-2L is a temporary process protection film, not a fly-away part, so it is not sold as a flame-retardant interior tape. It is qualified to Boeing BAC 5034 Type IV, Class 1, Grade A and Airbus AIMS 12-6-001.
What sizes does Protex 8216-2L come in?
Protex 8216-2L comes in tinted green in 12", 16", 24", and 48" widths on 100-yard rolls, and its flat liner makes it die-cuttable.
Can Protex 8216-2L be used outdoors?
It is UV resistant, but Mask-Off recommends testing before outdoor exposure, and before use on copper, brass, or anodized aluminum or where chemical resistance is needed.
Is Protex 8216-2L solvent resistant?
Mask-Off's test results show excellent resistance to toluene, MEK, alcohols, and trichloroethylene. Chemical resistance should still be confirmed by testing before use.
