Flame retardant to FAR 25.853(a) and named on OEM documentation. These are the tapes a cabin or cargo drawing callout normally points to — the callout itself, not this page, decides which one applies.

Patco D9100 In Stock

Flame Retardant Aircraft Waterseal Tape | FR Corrosion Inhibitor | BMS 8-346 | FAR 25.853(a)

Tough, exceptionally elastic and durable 9 mil transparent polyurethane film tape for sealing aircraft floor joints in wet areas. Pressure sensitive, repositionable, and sealant compatible — can be applied directly over wet sealant. Transparent for visible inspection of the floor structure beneath.

CarrierInterior-Grade Aromatic Polyurethane

AdhesiveUrethane-based

Total Thickness9.0 mil (substrate 7.0 mil)

Adhesion to Steel75 oz/in (ASTM D-3330)

Tensile Strength70 lb/in (ASTM D-3759)

Elongation600%

Puncture Resistance25 lb (ASTM D-1000)

Weight8.6 oz/yd²

Abrasion/Wear Index0.98 (ASTM D-4060)

Operating Temp-65°F to 300°F

Application Temp50°F to 120°F

ColorTransparent / Clear

Liner94 lb Kraft paper

Sizes2", 3", 4", 24", 36" × 36 yds

Shelf Life24 months from manufacture

NSN8030-01-542-1415

Price from$94.99

BMS 8-346E Class 1 Type I & II FAR 25.853(a) Airbus 10-05-004 / ABS 5093 ABD 0031 Para 7.3.2 & 7.4 Fokker FK05-193 NSN 8030-01-542-1415 Repositionable Corrosion Inhibitor ECCN EAR99

View Product →

Patco 1800 In Stock

Flame Retardant Galley Tape | FR PVC Aircraft Interior Tape | FAR 25.853(a)

Economical black PVC film galley tape with permanent acrylic adhesive — a corrosion inhibitor and moisture barrier for interior wet areas. Tough, conformable, will not delaminate. Available from 2" to 24" × 100 ft rolls, including wide format for large area coverage.

CarrierBlack PVC film

AdhesiveAcrylic (permanent)

Thickness9.5 mil (carrier + adhesive)

Adhesion to Steel50 oz/in

Tensile Strength25 lb/in (longitudinal)

Elongation160%

Service Temp-40°F to 200°F

Application Temp50°F to 120°F

Puncture Resistance12 lb (ASTM D-1000)

Substrate Thickness8.5 mil

Abrasion Index34 (ASTM D-4060)

Shelf Life12 months from shipment

ColorBlack

Sizes2", 3", 4", 18", 24" × 100 ft

Price from$38.99

FAR 25.853(a) Appendix F Fokker FK05-159 & FK05-160 Bombardier DSC 91-25-1 thru -6 PPP-T-60D Corrosion Inhibitor Die-Cuttable Wide Format Available

View Product →

Patco 9425FR 2–3 Weeks

SealDry Lightweight PU Moisture Barrier Tape | Corrosion Protective | BMS 8-346 Type I Class 3

Lightweight self-extinguishing polyurethane film with a hydrophobic acrylic adhesive, at 6.0 mil and 5.0 oz/yd² so it adds very little weight. Forms a moisture barrier and inhibits corrosion at seat tracks and in cargo areas. Repositionable during application, mold and fungus resistant, with no plasticizers or PBDEs. Available in widths up to 48".

CarrierPU film, self-extinguishing

AdhesiveHydrophobic acrylic (single-coated)

Total Thickness6.0 mil (0.152 mm)

Adhesion to Steel28 oz/in (3.06 N/cm)

Tensile Strength34 lb/in (59.54 N/cm)

Elongation550%

Weight5.0 oz/yd² (169.53 g/m²)

Burn Length4.56 in avg — FAR 25.853(a)

Flame / Drip Time0 sec / 0 sec

Operating Temp-10°F to 250°F

ColorClear / Transparent

LinerBlue HDPE film, die-cuttable

Sizes2", 3", 24", 48" × 36 yds

Shelf Life24 months from manufacture

Lead Time2–3 weeks

Price from$379.95

BMS 8-346 Rev. E Type I Class 3 FAR 25.853(a) A2MS 535-007 Rev. A Type VI Bombardier BAMS 535-007 Rev. B Type VI SealDry Repositionable Corrosion Protective No PBDEs

View Product →

Used on aircraft and parts, but for temporary protection, process masking and exterior surfaces rather than a permanent qualified interior seal. The 5565FR is flame retardant; the 8300 and 110-53 are not. Check what your maintenance manual, process sheet or drawing permits.

Patco 5565FR 2–3 Weeks

Aircraft Surface Protection Tape | Removable LDPE Film | FAR 25.853(a)

Thick, highly conformable LDPE film that stretches to 500% and lifts away clean when the work is done. Protects finished surfaces through a refurbishment, then removes with no residue. Solvent, moisture and abrasion resistant. Clear or high-visibility orange, sold by the case.

CarrierLDPE film, highly conformable

AdhesiveAcrylic, solvent resistant

Total Thickness5.5 mil (0.14 mm)

Tensile Strength12 lb/in

Elongation500%

Burn Length4.96 in avg — FAR 25.853(a)

Flame / Drip Time0 sec / 0 sec

Operating Temp-40°F to 190°F

RemovalClean removal, no residue

ColorsClear or Orange

Sizes2", 3", 4", 6" × 36 yds — case only

Case Quantity24 / 16 / 12 / 8 rolls

Lead Time2–3 weeks

Price from$278.28 per case

FAR 25.853(a) Appendix F Removable No Residue Solvent Resistant 500% Elongation Clear or Orange Made in USA

View Product →

Patco 8300 Not FR 2–3 Weeks

Outdoor Aircraft Protective Tape | Polyurethane Leading Edge Tape | Fokker FK05-193

The exterior tape in the Patco line: 14.5 mil non-yellowing polyurethane on a die-cuttable kraft liner, built to take rain erosion, UV and abrasion on leading edges, struts and stabilizers. Printable and paintable. Not a flame-retardant product and not intended for cabin interior use.

CarrierPolyurethane film, non-yellowing

AdhesiveAcrylic (single-coated)

Total Thickness14.5 mil (0.368 mm)

Adhesion to Steel110 oz/in

Tensile Strength80 lb/in

Weight12.5 oz/yd²

Operating Temp-40°F to 275°F

PerformanceUV, moisture & abrasion resistant

FinishingPrintable and paintable

ColorClear / Transparent

LinerKraft paper, die-cuttable

Sizes2", 3", 4", 5" × 36 yds

Shelf Life24 months from manufacture

Lead Time2–3 weeks

Price from$412.63

Fokker FK05-193 Not Flame Retardant Exterior Use Rain Erosion UV Resistant Printable / Paintable Die-Cuttable Made in USA

View Product →

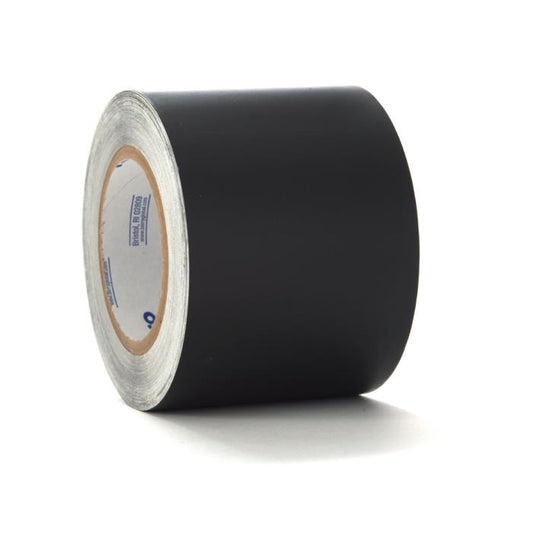

Patco 110-53 Not FR 2–3 Weeks

Heavy-Duty Black Vinyl Tape | Shot Peen & Media Blast Masking

9.5 mil black PVC film with an aggressive acrylic adhesive, designed by Patco for maximum masking protection during media blast and shot peening. Conformable, abrasion resistant and low residue on removal, with a 53# coated kraft liner for die-cut masks and gaskets. Not a flame-retardant product; a temporary process masking tape.

CarrierBlack PVC film, 8.5 mil

AdhesiveAcrylic (A272), single-coated

Total Thickness9.5 mil (0.241 mm)

Adhesion to Steel50 oz/in (ASTM D-3330)

Tensile Strength25 lb/in (ASTM D-3759)

Elongation160%

Abrasion Index34 (ASTM D-4060)

Operating Temp-40°F to 200°F

Application Temp50°F to 120°F

ColorBlack

Liner53# coated kraft paper, die-cuttable

Sizes1", 2", 3", 4" × 100 ft — case only

Case Quantity48 / 24 / 16 / 12 rolls

Shelf Life12 months from shipment

Lead Time2–3 weeks

Price from$702.24 per case

Shot Peen Masking Media Blast Masking Not Flame Retardant Abrasion Resistant Low Residue Die-Cuttable Gasketing Made in USA

View Product →

Specification details are provided for reference and are drawn from current Patco technical data sheets, which are the controlling source. Typical values are stated at time of manufacture and are not for use in writing specifications. Prices update automatically from each product page; the price in your cart is the controlling price. Confirm current availability on each product page. A cross-reference identifies a potentially matching product and does not constitute a substitution approval — substitution requires approval under the applicable aircraft, operator or engineering procedure. Always verify requirements against the controlling drawing and the current manufacturer data sheet before purchase.
