D9100 Flame Retardant Aircraft Waterseal Tape
BMS 8-346 Type I and Type II · Class 1
Interior-grade aromatic polyurethane film, transparentUrethane-based9.0 mil
- BMS 8-346 Type I
- FAR 25.853(a)
- Airbus AIMS 10-05-004A (ABS 5093)
- Airbus ABD0031 Paragraphs 7.3.2
- Fokker FK05-193
- Federal NSN 8030-01-542-1415
- COC Included
Couldn't load pickup availability
Patco D9100 is a 9 mil transparent, flame-retardant polyurethane film tape with a urethane-based adhesive on a 94# coated kraft paper liner — the aircraft waterseal tape and corrosion inhibitor qualified to BMS 8-346 Type I and Type II, Class 1 for sealing floor joints on aircraft decking. It complies with FAR 25.853(a) and is also approved to Airbus AIMS 10-05-004A (ABS 5093), Airbus ABD0031 Paragraphs 7.3.2 and 7.4, and Fokker FK05-193, delivering 70 lb/in tensile strength, 40 oz/in adhesion to steel and 600% elongation. It can be repositioned during application and applied directly over wet sealant, then forms a strong permanent bond; the clear film lets you inspect the joint without removing the tape, and the kraft liner releases cleanly and die-cuts. Available in Transparent in 2", 3", 4", 24" and 36" x 36 yd rolls on a kraft paper liner.
Key Features of Patco D9100 Waterseal Tape
- BMS 8-346 Class 1 qualified — Type I and Type II, Class 1, the standard Boeing waterseal class for floor joints in wet areas
- 70 lb/in tensile, 40 oz/in adhesion, 600% elongation — a tough, conformable 9 mil film that stretches over curves and irregular surfaces
- Applies over wet sealant — the urethane-based adhesive bonds directly over wet sealant and holds under heavy foot traffic
- Transparent for inspection — see the sealed joint and the structure beneath without pulling the tape
- Broad OEM approval — FAR 25.853(a), Airbus AIMS 10-05-004A and ABD0031, Fokker FK05-193, and NSN 8030-01-542-1415
What Is Patco D9100 Used For?
- Floor joint sealing on aircraft decking in galleys, lavatories and entryways
- Moisture barrier and corrosion protection for floor panels and structure in wet areas
- Sealing floor panel seams directly over wet sealant
- Surface protection for high-wear interior areas
- Sound damping
- Die-cut patches and custom shapes for wet-area repairs
Key Specifications
| Backing | Interior-grade aromatic polyurethane film, transparent |
|---|---|
| Adhesive | Urethane-based (single-coated) |
| Liner | 94# coated kraft paper |
| Total thickness | 9.0 mil (0.229 mm) — PSTC-133 |
| Backing thickness | 7.0 mil (0.178 mm) — PSTC-133 |
| Weight | 8.6 oz/sq yd (291.59 g/m²) |
| Tensile strength | 70 lb/in (122.59 N/cm) — ASTM D-3759 |
| Adhesion to steel | 40 oz/in (4.38 N/cm) — ASTM D-3330 |
| Elongation | 600% |
| Puncture resistance | 25 lb (11.34 kg) — ASTM D-1000 |
| Abrasion/wear index | 0.98 — ASTM D-4060 |
| Application temperature | 50°F to 120°F (10°C to 49°C) |
| Operating temperature | −65°F to 300°F (−54°C to 148°C) |
| Colors | Transparent |
| Performance | Flame retardant; moisture/water resistant; abrasion resistant; conformable; repositionable during application; die-cuttable |
| Shelf life | 24 months from date of manufacture, stored at 60–80°F and 40–60% RH |
| Manufacturer P/N | D9100 (self-wound version: D9100SW) |
| Brand | Patco (Berry Global / Vybond) |
| Country of Origin | United States |
Why This Tape Matches Your Spec
Boeing BMS 8-346 covers pressure-sensitive waterseal tapes used to seal floor joints and protect floor structure from moisture in wet cabin areas. It separates qualified tapes by Type and Class, and Patco D9100 is qualified to BMS 8-346 Type I and Type II, Class 1.
- Floor joint sealing on aircraft decking in galleys, lavatories and entryways
- Moisture barrier and corrosion protection for floor panels and structure in wet areas
- Sealing floor panel seams directly over wet sealant
- Surface protection for high-wear interior areas
- Sound damping
- Die-cut patches and custom shapes for wet-area repairs
Approvals & Certifications
Available Sizes
Spec Guide
Frequently Asked Questions
What is the shelf life of Patco D9100?
Patco D9100 has a 24-month shelf life from date of manufacture when stored at 60–80°F and 40–60% relative humidity. The manufacture date and lot number are documented on the Certificate of Conformance included with every order.

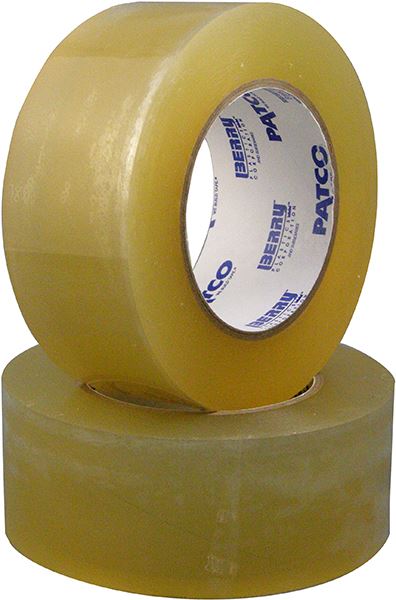

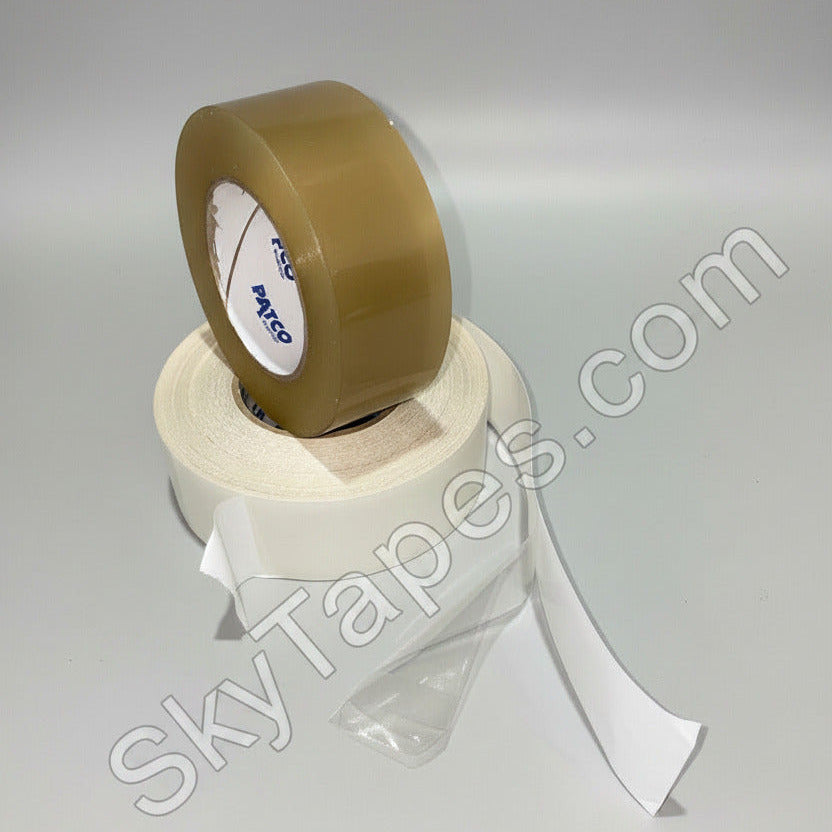

Is Patco D9100 the same as D9100SW?
They are the same tape. D9100 is supplied on a kraft paper liner; D9100SW is the self-wound version with no liner. Contact us if you need D9100SW.
Which BMS 8-346 class is Patco D9100?
Patco D9100 is qualified to BMS 8-346 Type I and Type II, Class 1. For a Class 3 callout, use Patco 9425FR SealDry instead.
Is Patco D9100 flame retardant and aircraft approved?
Yes. D9100 meets FAR 25.853(a) and is approved to Boeing BMS 8-346, Airbus AIMS 10-05-004A (ABS 5093) and ABD0031 Paragraphs 7.3.2 and 7.4, and Fokker FK05-193. Its NSN is 8030-01-542-1415.
Can Patco D9100 be applied over wet sealant?
Yes. The urethane-based adhesive can be applied directly over wet sealant and then forms a strong permanent bond.
Why is Patco D9100 transparent?
The clear polyurethane film lets inspectors see the sealed joint and the structure beneath it without removing the tape.
What sizes does Patco D9100 come in?
We stock 2", 3", 4", 24" and 36" widths on 36 yd (108 ft) rolls, sold by the roll or by the case for 2" to 4". Patco makes other widths from 1" to 48"; contact us for those.
What temperatures can Patco D9100 handle?
D9100 is rated for operating temperatures from -65°F to 300°F. Apply it between 50°F and 120°F for best results.
