Cargo Pit Tapes

Flame-retardant fiberglass cloth tapes built for aircraft cargo compartments — seam sealing, liner repair, and covering pins and rivets. FAA, Boeing, and Airbus approved, in stock and ready to ship.

3Products In Stock
FRFlame-Retardant Fiberglass
BoeingBMS5-146 / Airbus ABD0031
From $48.99In Stock & Ready To Ship

All three tapes below are flame-retardant tapes engineered for aircraft cargo compartments — sealing seams, repairing liners, and covering pins and rivets. They differ mainly in carrier construction, adhesive system, thickness, and approvals. The 296FR is a lightweight 7-mil fiberglass acrylic tape with low-outgassing data and a Boeing BMS5-146 approval; the 290FR is a heavy-duty 13-mil PE-coated fiberglass tape with an aggressive rubber adhesive and the highest tensile strength in the category; the 225FR is a 12-mil PE-coated cloth tape with a natural rubber FR adhesive approved to Douglas, Fokker, and Lockheed specs. Use the comparison table to match the tape to your application and spec.

Cargo Pit Tapes — Aircraft Cargo Compartment

3 products
Polyken 296FR Flame Retardant Fiberglass Cargo Compartment Tape
Polyken 296FRLightweight
Polyken
Flame Retardant Fiberglass Cargo Compartment Tape — 7 Mil | BMS5-146
The aerospace industry's trusted cargo compartment tape — flame retardant, lightweight, and built for the toughest cargo pit environments. Bromide-free acrylic adhesive removes cleanly from cargo liner surfaces with no residue. Boeing, Airbus, and FAA approved, with low-outgassing data per ASTM E595.
CarrierFiberglass cloth
AdhesiveBromide-free acrylic
Thickness7.0 mil
Tensile Strength134 lb/in
Adhesion to Steel45 oz/in
Operating Temp-40°F to 275°F
Standard Sizes1"-4" × 36 yd
Price from$59.99
FAR 25.853(a) BMS5-146 Type I Cl.1 Airbus ABD0031 Low Outgassing Cargo Compartment
View Product →

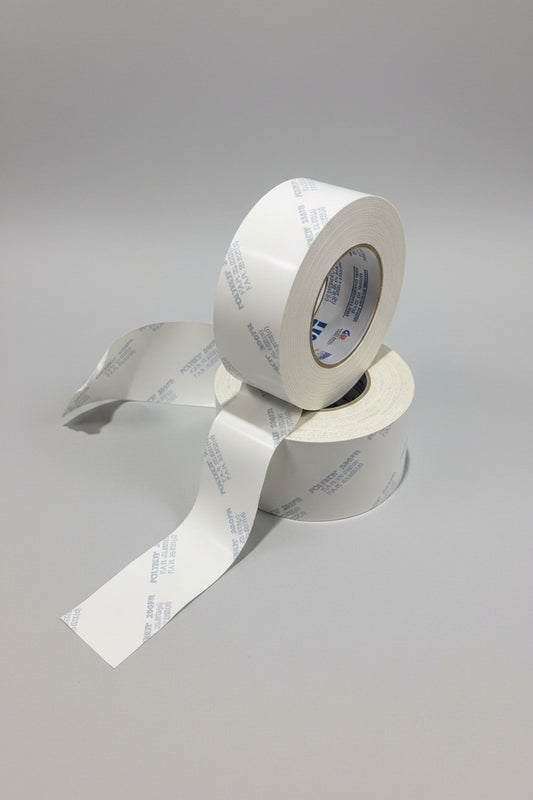

Polyken 290FR PE-Coated Fiberglass Cargo Pit Sealing Tape
Polyken 290FRHeavy Duty
Polyken
PE-Coated Fiberglass Cargo Pit Sealing Tape — 13 Mil | 150 lb/in
The heavy-duty cargo pit sealing tape — engineered for demanding freight aircraft applications where super-high tensile strength, aggressive adhesion, and proven flame resistance are non-negotiable. The PE coating protects handlers from direct fiberglass contact, and the Deca-BDE-free formulation delivers zero burn time. FAA, Boeing, Airbus, and Bombardier approved.
CarrierPE-coated fiberglass
AdhesiveRubber-based
Thickness13.0 mil
Tensile Strength150 lb/in
Adhesion to Steel38 oz/in
Operating Temp40°F to 200°F
Size Options2"-3" × 60 yd
Price from$48.99
FAR 25.853(a) FAR 25.855(d) Airbus ABD0031 Bombardier DSC 91-8-2 Deca-BDE Free NSN Listed
View Product →
Polyken 225FR PE-Coated Cloth Cargo Pit Duct Tape
Polyken 225FRDuct & Repair
Polyken
PE-Coated Cloth Cargo Pit Duct Tape — 12 Mil | FAR 25.853(a)
The lighter-duty cargo-pit workhorse — a 12-mil PE-coated cloth duct tape for seaming and repairing cargo liner panels, covering pins and rivets, and general patching, sealing, and bundling in the cargo bay. Natural rubber adhesive grips aggressively and resists flagging and lifting; the PE coating adds moisture, solvent, and abrasion resistance. Deca-BDE free and UN approved. Meets FAR 25.853(a)(1)(i) for use in aircraft cargo compartments.
CarrierPE-coated cloth
AdhesiveNatural rubber
Thickness12.0 mil
Weight10 oz/yd²
Operating Temp40°F to 200°F
ColorBlack / white printed
ConstructionSingle-coated
Standard Sizes2"-3" × 60 yd
Price From$47.99
FAR 25.853(a)(1)(i) Cargo Compartment Deca-BDE Free UN Approved Low VOC Duct & Repair
View Product →

Polyken 296FR vs. 290FR vs. 225FR — Specification Comparison

Click any product name to go directly to that product page.

Specification 296FR 290FR 225FR
CarrierFiberglass clothPE-coated fiberglassPE-coated cloth
AdhesiveBromide-free acrylicRubber-basedNatural rubber (FR)
Thickness7.0 mil13.0 mil12.0 mil
Tensile Strength134 lb/in150 lb/in29 lb/in
Adhesion to Steel45 oz/in38 oz/in40 oz/in
Weight6.8 oz/yd²13.4 oz/yd²10 oz/yd²
LinerLDPE film——
Operating Temp-40 to 275°F40 to 200°F40 to 200°F
Burn Length3"0.25"—
Exiting / Burn Time0.66 sec0 sec—
ColorWhiteWhite (printed)Black / white printed
Standard Sizes1"-4" × 36 yd2"-3" × 60 yd2"-3" × 60 yd
FAR 25.853(a)✓✓✓
FAR 25.855(d)✓✓—
Boeing ApprovedBMS5-146Service Letters—
Airbus ABD0031✓✓—
Bombardier Approved—DSC 91-8-2—
Douglas / Fokker / Lockheed——DMS 1968E / Fokker / Lockheed
Low Outgassing (E595)✓——
Low VOC——✓
Deca-BDE Free—✓✓
NSN Listed—✓—
Shelf Life24 months24 months24 months
Best ForLightweight FR sealing, low-outgassing buildsHeavy-duty sealing, high-load seamsPE-cloth duct sealing, Douglas/Fokker fleets
Price From$59.99$48.99$47.99

Which Cargo Pit Tape Do I Need?

Both tapes seal seams, repair cargo liners, and cover pins and rivets while meeting FAA and Boeing flame-retardance requirements. The right choice depends on the weight, adhesion, and approvals your job requires.

Ask Our Team →
  • Lightweight & low-outgassing: Polyken 296FR — 7 mil, acrylic adhesive, BMS5-146, ASTM E595 data
  • Highest tensile & aggressive adhesion: Polyken 290FR — 13 mil PE-coated, rubber adhesive, 150 lb/in
  • Handler protection from fiberglass: Polyken 290FR — PE coating shields against direct fiberglass contact
  • Widest temperature range: Polyken 296FR — rated -40°F to +275°F
  • Bombardier / de Havilland fleets: Polyken 290FR — approved to DSC 91-8-2 & 91-8-2A
  • Douglas / Fokker / Lockheed fleets: Polyken 225FR — 12 mil PE cloth, DMS 1968E, low VOC, Deca-BDE free
  • All three in stock — ready to ship from SkyTapes
