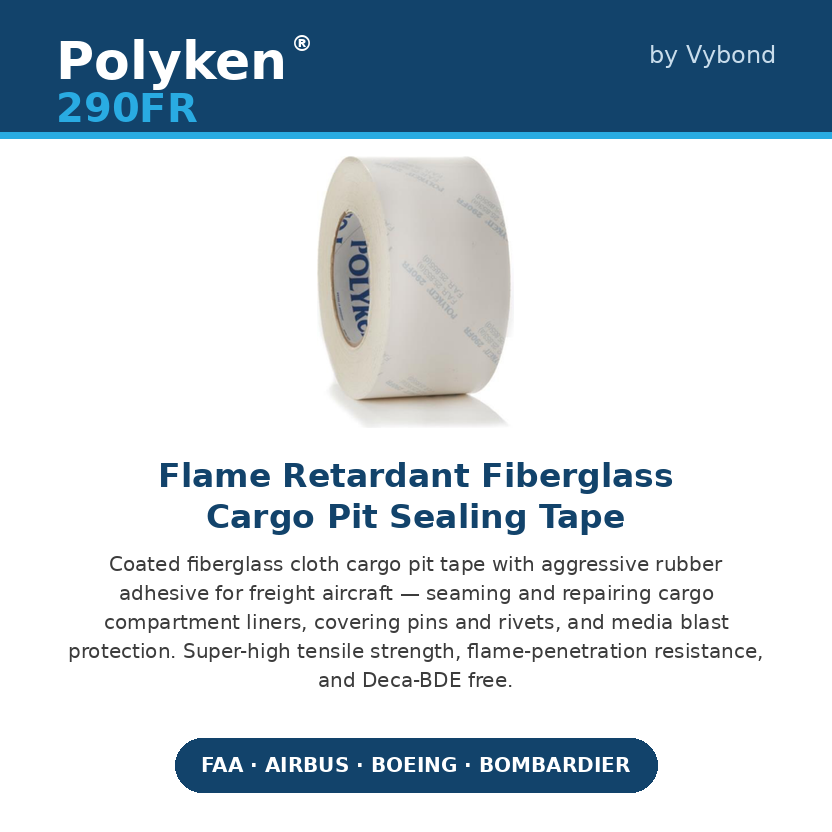

290FR Cargo Pit Sealing Tape
Pe-coated fiberglass clothRubber-based13.0 mil
- FAR 25.853(a) (12-second vertical burn)
- FAR 25.855(d) (cargo compartment / 45° burn)
- Boeing Service Letters
- Airbus ABD0031 Paragraphs 7.3.2
- Bombardier / de Havilland DSC 91-8-2
- Bombardier / de Havilland DSC 91-8-2A
- Test methods ASTM D-1000
- Test methods PSTC-101
- COC Included
Couldn't load pickup availability

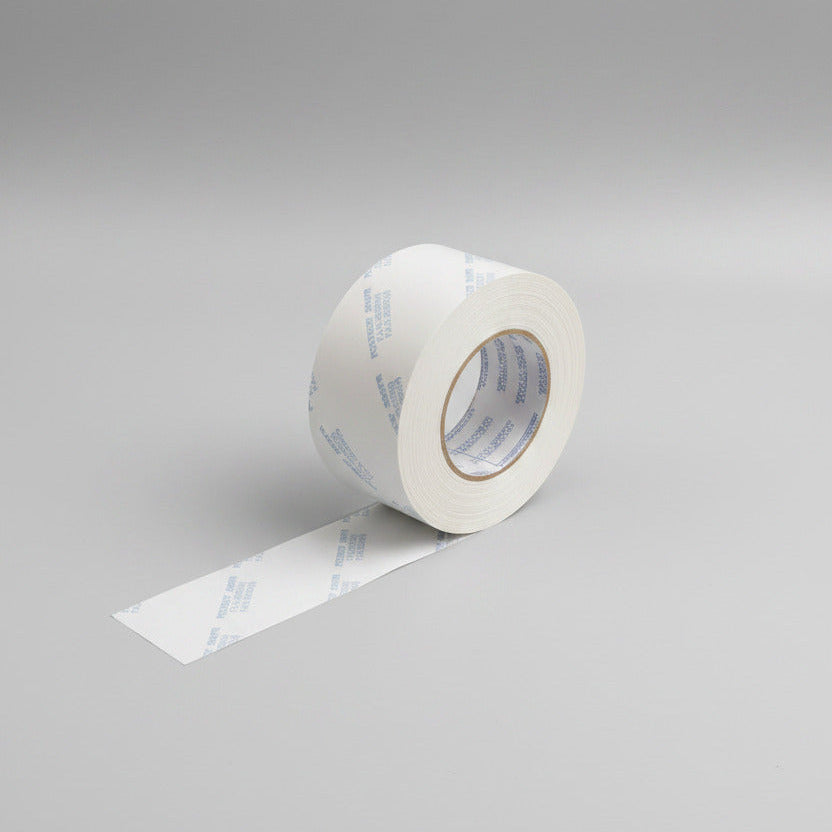

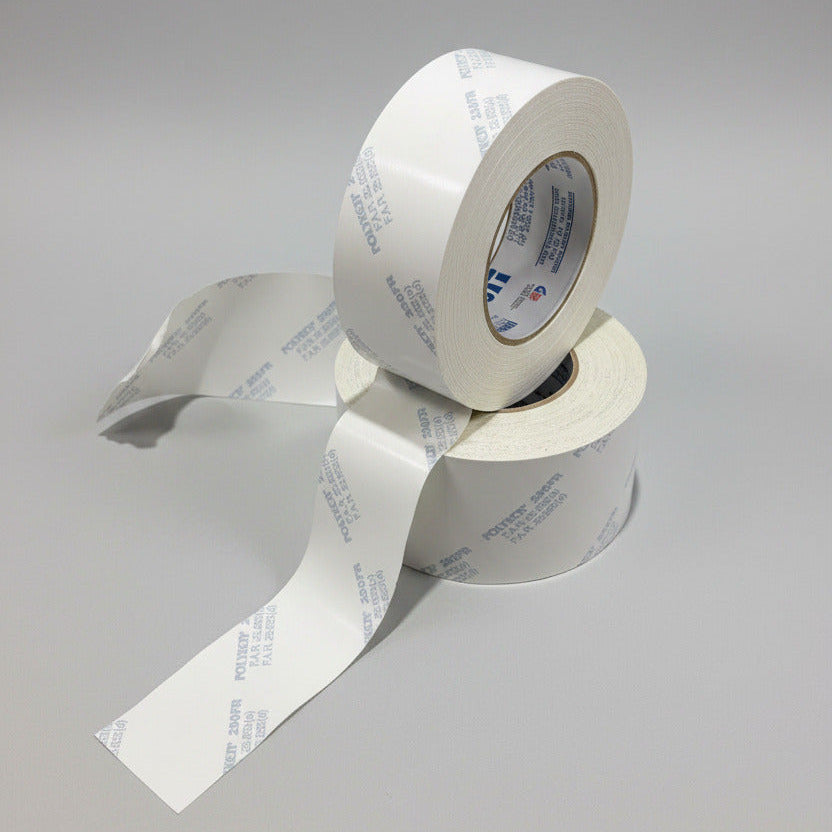

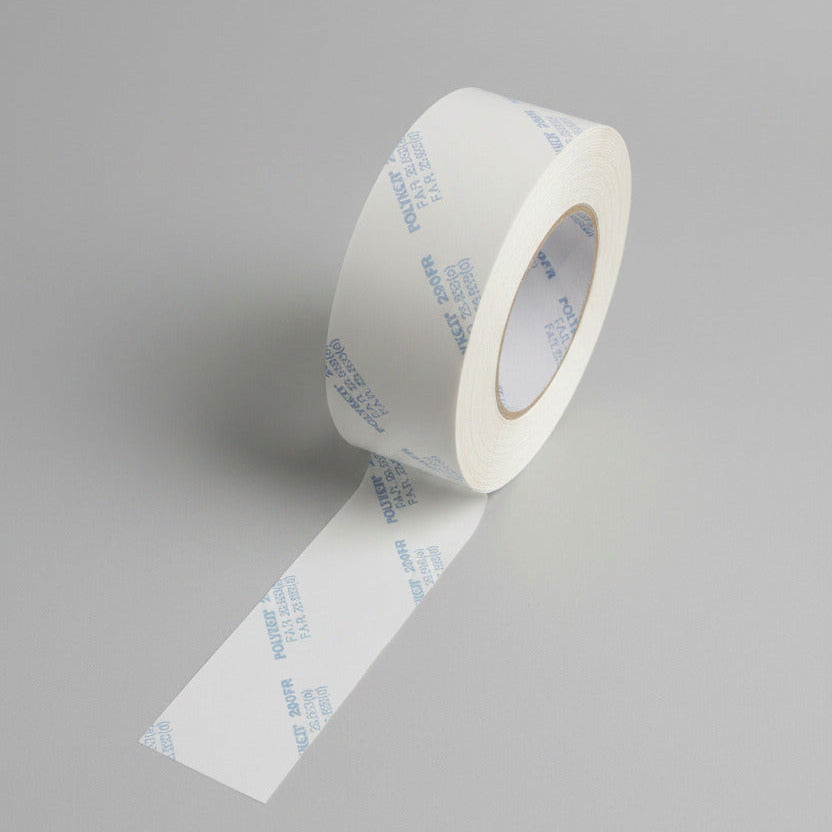

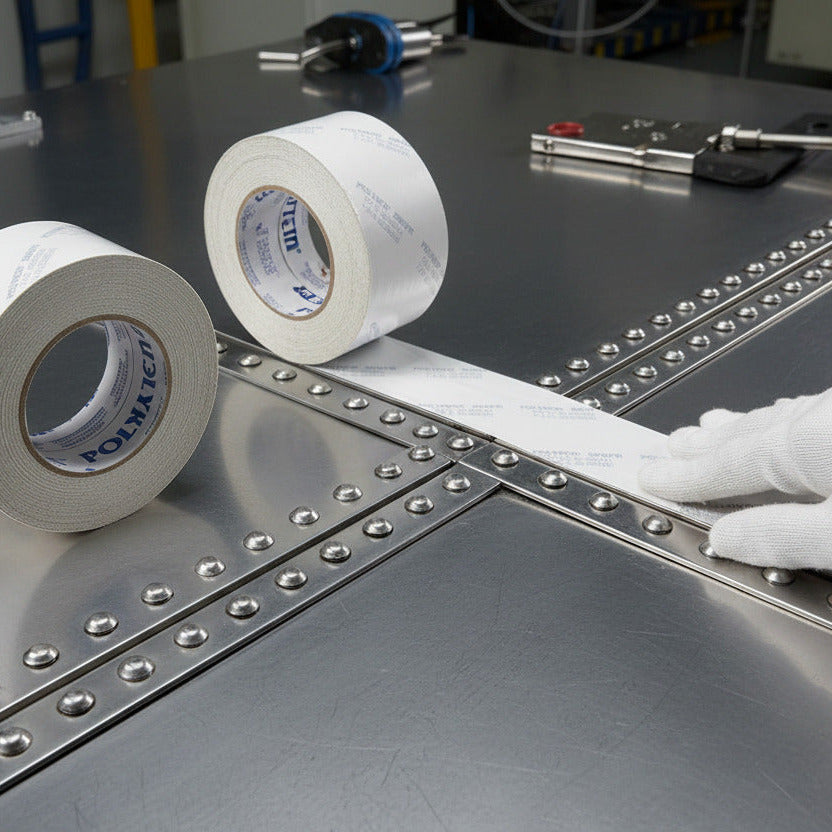

Polyken 290FR is a 13 mil PE-coated fiberglass cloth cargo pit tape with a rubber-based adhesive delivering 150 lb/in tensile strength — the aerospace industry's heavy-duty aircraft cargo tape, engineered for demanding freight aircraft applications where super-high tensile strength, aggressive adhesion, and proven flame resistance are non-negotiable. Approved by the FAA, Boeing (737-SL-25-115-B, 747-SL-25-195-B, 757-SL-25-085-B, 767-SL-25-112-B, 777-SL-25-037-B), Airbus (ABD0031 Paragraphs 7.3.2 & 7.4), and Bombardier/de Havilland (DSC 91-8-2 & DSC 91-8-2A) for use aboard commercial and freight aircraft worldwide, it's the go-to pit tape for sealing and seaming aircraft cargo compartment liners.
The rubber adhesive bonds aggressively to all surfaces, resists flagging and lifting under heavy loads, and maintains its seal in the moisture-rich cargo compartment environment. The PE coating protects handlers from direct fiberglass contact, and the Deca-BDE-free formulation meets strict environmental and flame-retardance requirements — with zero burn time and no flame penetration confirmed by the included Certificate of Analysis. Meets FAR 25.853(a) and FAR 25.855(d).
Manufacturer's Certificate of Analysis included free of charge.
Key Features of Polyken 290FR Cargo Pit Tape
- PE-coated fiberglass cloth backing — Coating protects handlers from direct fiberglass contact; resists flame penetration
- 150 lb/in tensile strength — Super-high tensile, one of the highest in the cargo pit tape category
- Rubber-based adhesive — Aggressive adhesion to all surfaces; maintains seal under heavy loads and resists flagging
- Zero burn time verified — Certificate of Analysis confirms 0 sec burn time and no flame penetration per FAR 25.853(a) and 25.855(d)
- Deca-BDE free, 24-month shelf life — Environmentally compliant formulation; CoA available on request
What Is Polyken 290FR Used For?

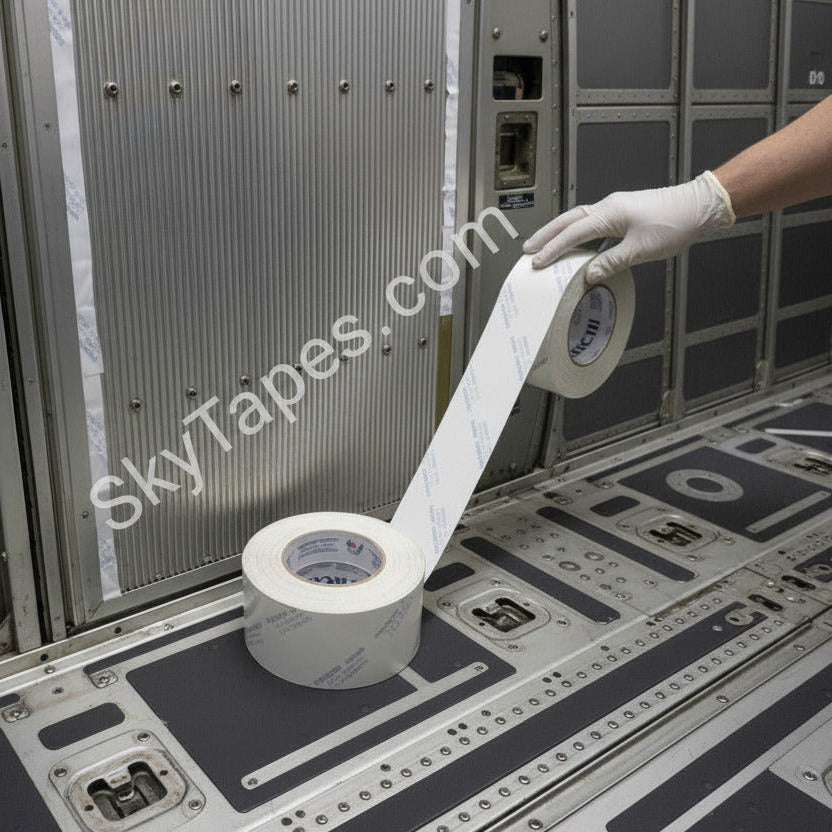

- Cargo pit sealing and seaming on freight-carrying aircraft
- Seaming and repairing cargo compartment liners
- Covering pins and rivets in cargo compartments
- Challenging applications where high adhesion and flame resistance are critical
- Media blast protection on aircraft structures
Key Specifications
| Backing | PE-coated fiberglass cloth |
|---|---|
| Adhesive | Rubber-based (single-coated) |
| Liner | None |
| Total thickness | 13.0 mil (0.330 mm) |
| Weight | 13.4 oz/yd² |
| Tensile strength | 150 lb/in (262.69 N/cm) — ASTM D-1000 |
| Adhesion to steel | 38 oz/in (4.16 N/cm) — PSTC-101 |
| Operating temperature | 40°F to 200°F (4°C to 93°C) |
| Extinguishing time | 0 sec — FAR 25.853(a) / 25.855(d) |
| Burn length | 0.25" — FAR 25.853(a) |
| After glow | 0 sec — FAR 25.855(d) |
| Color | White (printed) |
| Shelf life | 24 months from date of manufacture at 60–80°F, 40–60% RH |
| Manufacturer | Vybond Specialty Adhesives, LLC (formerly Polyken / Berry) |
| Manufacturer P/N | POLYKEN 290FR |
| NSN | 7510-01-559-3419 |
| Schedule B Code | 5906.10.0000 |
| ECCN | EAR99 |
| Country of Origin | United States |
Why This Tape Matches Your Spec
Polyken 290FR, 296FR, and 225FR are all flame-retardant cargo pit tapes. They differ by construction, tensile strength, and which spec they're qualified to.
- Cargo pit sealing and seaming on freight-carrying aircraft
- Seaming and repairing cargo compartment liners
- Covering pins and rivets in cargo compartments
- Challenging applications where high adhesion and flame resistance are critical
- Media blast protection on aircraft structures
Approvals & Certifications
Available Sizes
Spec Guide
Frequently Asked Questions
What is Polyken 290FR cargo pit tape used for?
Polyken 290FR is a cargo pit sealing tape used for sealing and seaming cargo pits on freight aircraft, repairing cargo compartment liners, covering pins and rivets, and media blast protection where high adhesion and flame resistance are required.
What tensile strength does Polyken 290FR have?
Polyken 290FR delivers 150 lb/in (262.69 N/cm) tensile strength per ASTM D-1000, one of the highest in the cargo pit tape category, making it suited to heavy-duty aircraft cargo applications.
What is a PE-coated fiberglass cargo tape?
A PE-coated fiberglass tape uses a high-strength fiberglass cloth backing with a polyethylene (PE) coating. The coating protects handlers from direct fiberglass contact and adds flame resistance, while the fiberglass carrier provides the super-high tensile strength required for aircraft cargo pit and liner sealing.
What sizes does Polyken 290FR come in?

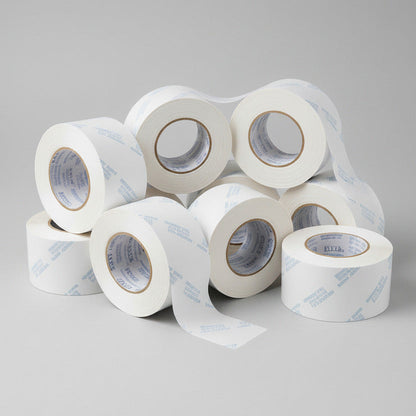

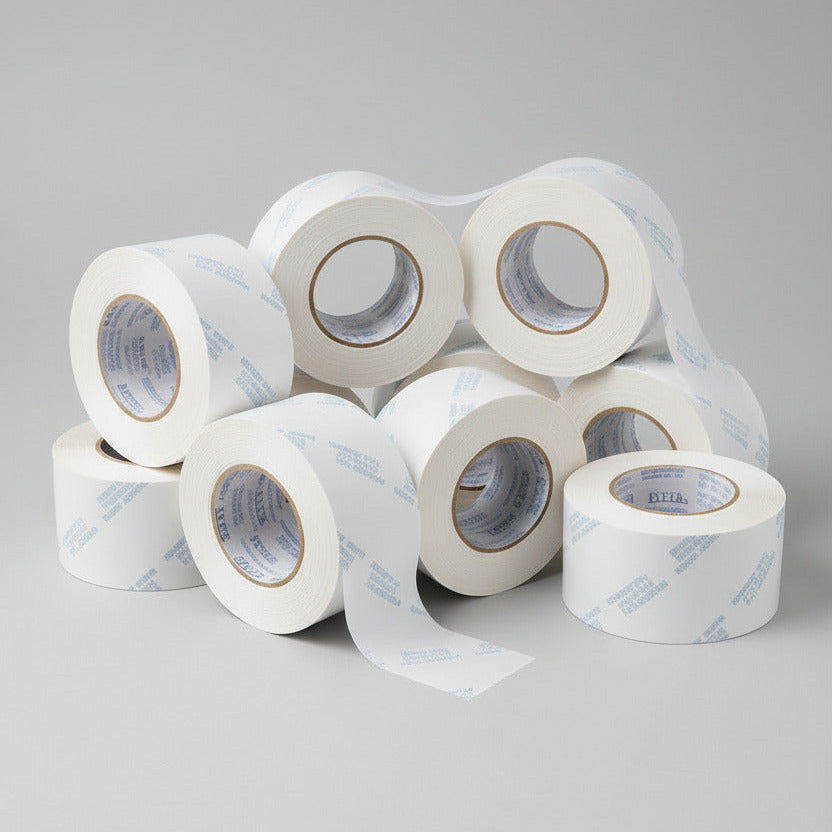

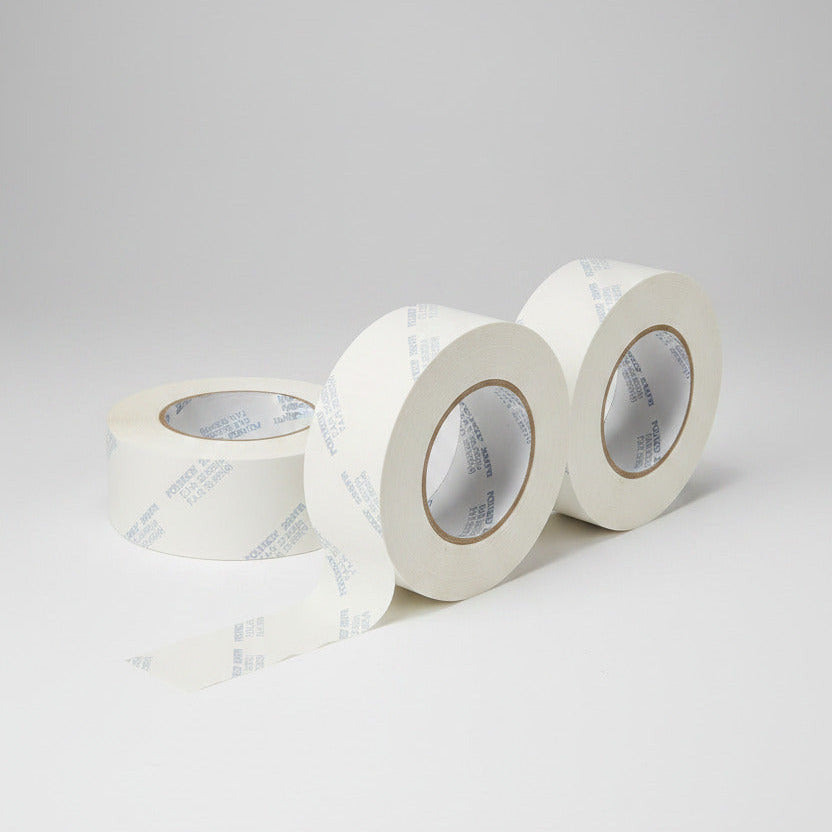

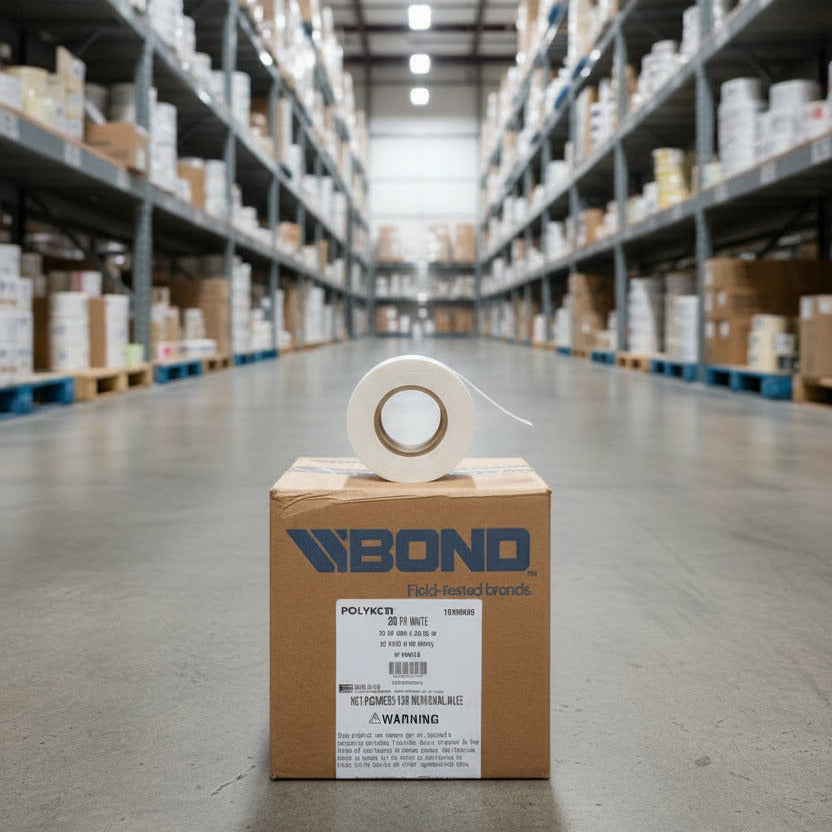

Polyken 290FR is available in 2" and 3" widths, each on 60-yard rolls, sold as single rolls, 3-roll packs, 8-roll packs, or cases of 16 or 24 rolls.
Is Polyken 290FR flame retardant and aircraft approved?
Yes. It is Deca-BDE free with 0 sec burn time and is approved to FAA FAR 25.853(a) and FAR 25.855(d), plus Boeing service letters, Airbus ABD0031, and Bombardier specifications for commercial and freight aircraft.
