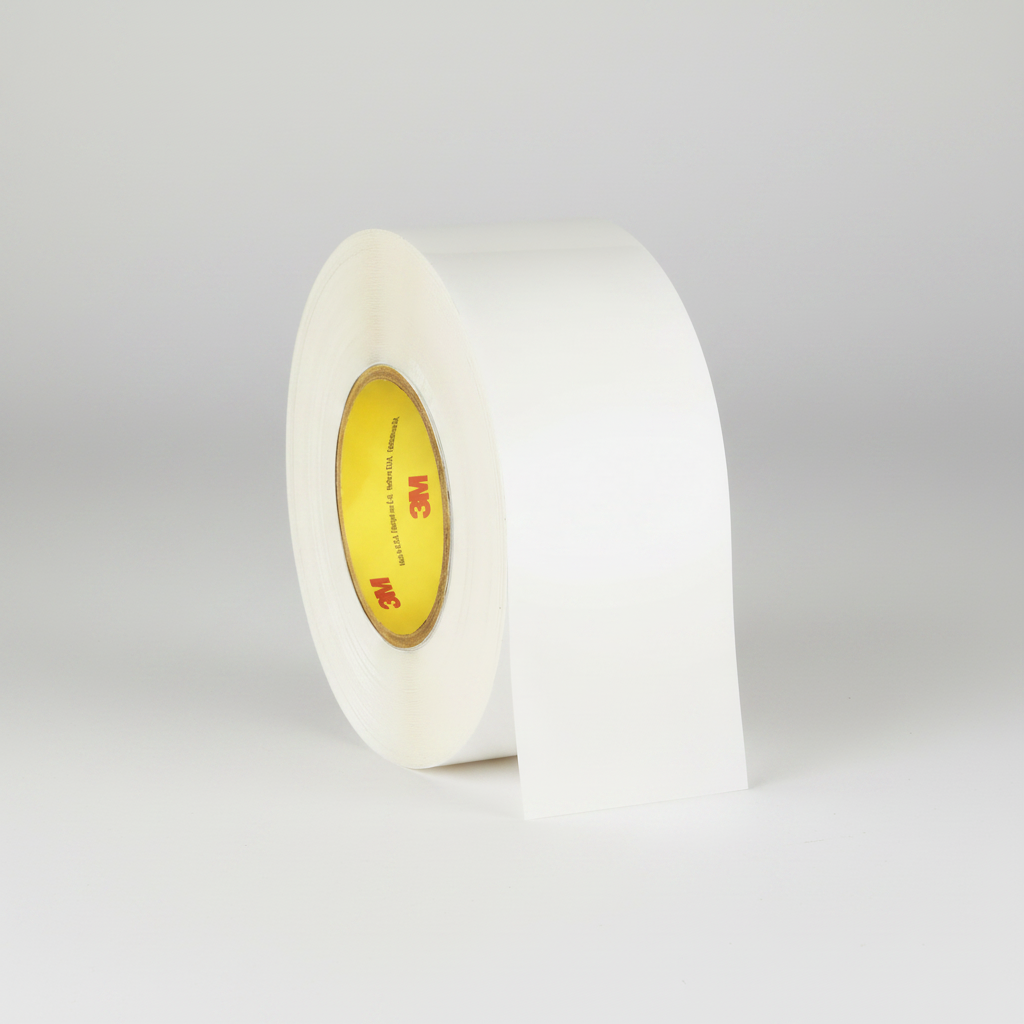

3M™ Polyurethane Protective Tape 8671/8671HS
3M™ Polyurethane Protective Tape 8671/8671HS
Couldn't load pickup availability
3M™ Polyurethane Protective Tape 8671/8671HS is a transparent thermoplastic polyurethane elastomer tape engineered for premium leading-edge erosion protection. Made from an abrasion-resistant polyurethane backing that resists punctures, tearing, abrasion, and erosion, and formulated for resistance to ultraviolet light, it provides a simple, durable method of protecting surfaces from corrosion, abrasion, and minor impact damage. A high peel-strength acrylic adhesive lets it withstand demanding conditions including rain and sand erosion — the trusted choice for aircraft leading edges, propellers, rotor blades, and stabilizers. Also available with a high-shear (HS) adhesive.
Designed for aerospace production and maintenance, its long-aging, solvent-resistant acrylic adhesive bonds effectively to aluminum, composites, primers, and painted finishes, maintaining bond strength through a range of climate and temperature changes while still removing cleanly when needed. Thin and conformable, it applies easily over curved surfaces and compound curves, and can be painted over or applied to painted surfaces. The transparent film allows visual inspection without removal.
Manufacturer's Certificate of Conformance included FREE of charge.
Key Features
- Thermoplastic polyurethane elastomer backing — Tough and abrasion, scratch, erosion, tear, and puncture resistant for high-wear surfaces
- Premium leading-edge erosion protection — Withstands rain and sand erosion on aircraft leading edges, propellers, rotor blades, and stabilizers
- UV resistant — Formulated for resistance to ultraviolet light; supports indoor and outdoor service
- High peel-strength acrylic adhesive — Long-aging, solvent-resistant bond to aluminum, composites, primers, and painted finishes; removes easily when needed
- Thin & conformable — Applies easily over curved and compound surfaces; can be painted over or applied to painted surfaces
- Transparent film — Allows visual inspection without removal
- High-shear option — 8671HS available for applications requiring increased shear strength
Applications
- Leading-edge erosion protection on aircraft wings, propellers, rotor blades, and stabilizers
- Surface protection from abrasion and erosion caused by rocks, dirt, debris, and rain
- Corrosion protection on metal edges and high-wear aircraft zones
- Wind turbine blade leading-edge protection
- Industrial and transportation surface protection (trailers, bumpers, helicopter rotors)
Specifications
| Backing | Abrasion-resistant thermoplastic polyurethane elastomer |
| Adhesive | Long-aging, solvent-resistant acrylic (pressure sensitive); high-shear available (8671HS) |
| Liner | Easy-release paper liner |
| Total thickness | 0.014 inch (0.35 mm) |
| Film thickness | 0.012 inch (0.30 mm) |
| Adhesive thickness | 0.002 inch (0.05 mm) |
| Tensile strength | 80 lb/in (1,401 N/100mm) — ASTM D882 |
| Hardness | 80 Shore A — ASTM D2240 |
| Elongation | 500% — ASTM D882 |
| Peel adhesion to anodized Alclad aluminum | 100 oz/in (110 N/100mm) — ASTM D-1000, 24 hr dwell |
| Peel adhesion to glossy polyurethane paint | 52 oz/in (57 N/100mm) — ASTM D-1000, 24 hr dwell |
| Peel adhesion to Mil-P-27733 epoxy primer | 90 oz/in (99 N/100mm) — ASTM D-1000, 24 hr dwell |
| Peel adhesion to 304 Brite #7 SS steel | 60 oz/in (66 N/100mm) — ASTM D-1000, 24 hr dwell |
| Approximate weight | 0.81 lb/yd² (439 g/m²), excludes liner |
| Color | Transparent |
| Maximum service temperature | 180°F (82°C) |
| Application temperature | Best results on a clean, dry surface above 40°F |
| Shelf life | 2 years from date of manufacture (or as expressly certified by 3M); store in a clean area, away from excessive moisture and out of direct sunlight, in the shipping carton |
| Size options | 1/2" min. to 24" max. width × 36 yd (1.25 cm to 61 cm × 32.9 m) standard roll length |
Product Attributes
| Manufacturer | 3M Company — Automotive & Aerospace Solutions Division |
| Manufacturer P/N | 8671 / 8671HS |
| Country of Origin | United States |
| Color Family | Clear |
| Pack Quantity | 1 Roll or Case |
| VOC Content | No VOC restrictions (industrial use only) |
| Quality System | Manufactured under a 3M Quality Management System registered to AS9100 |
| Shipping Classification | No special/hazardous labeling required for air, ground, or water shipment |
Certifications & Approvals
- Quality Standard — Manufactured under a 3M Quality Management System registered to AS9100
- Aerospace specifications — Qualified to aerospace specifications (validate applicable spec at time of usage)
- Current lots ship with a 3M Certificate of Conformance
