E&H 753-MPE Metalized PEEK Insulation Blanket Cover Splicing Tape
BMS 5-157 Rev. K · Type I · Class 2 or 3 · Grade A · C · or E · Form I · Comp MPEEK
Dull gray metalized peekHighly fire-retardant acrylic pressure-sensitive
- BMS 5-157 Rev. K
- C
- or E
- Form I
- Comp MPEEK
- BSS-7230
- Critical Radiant Heat Panel
- FAR 25.856(A)
- COC Included
Couldn't load pickup availability

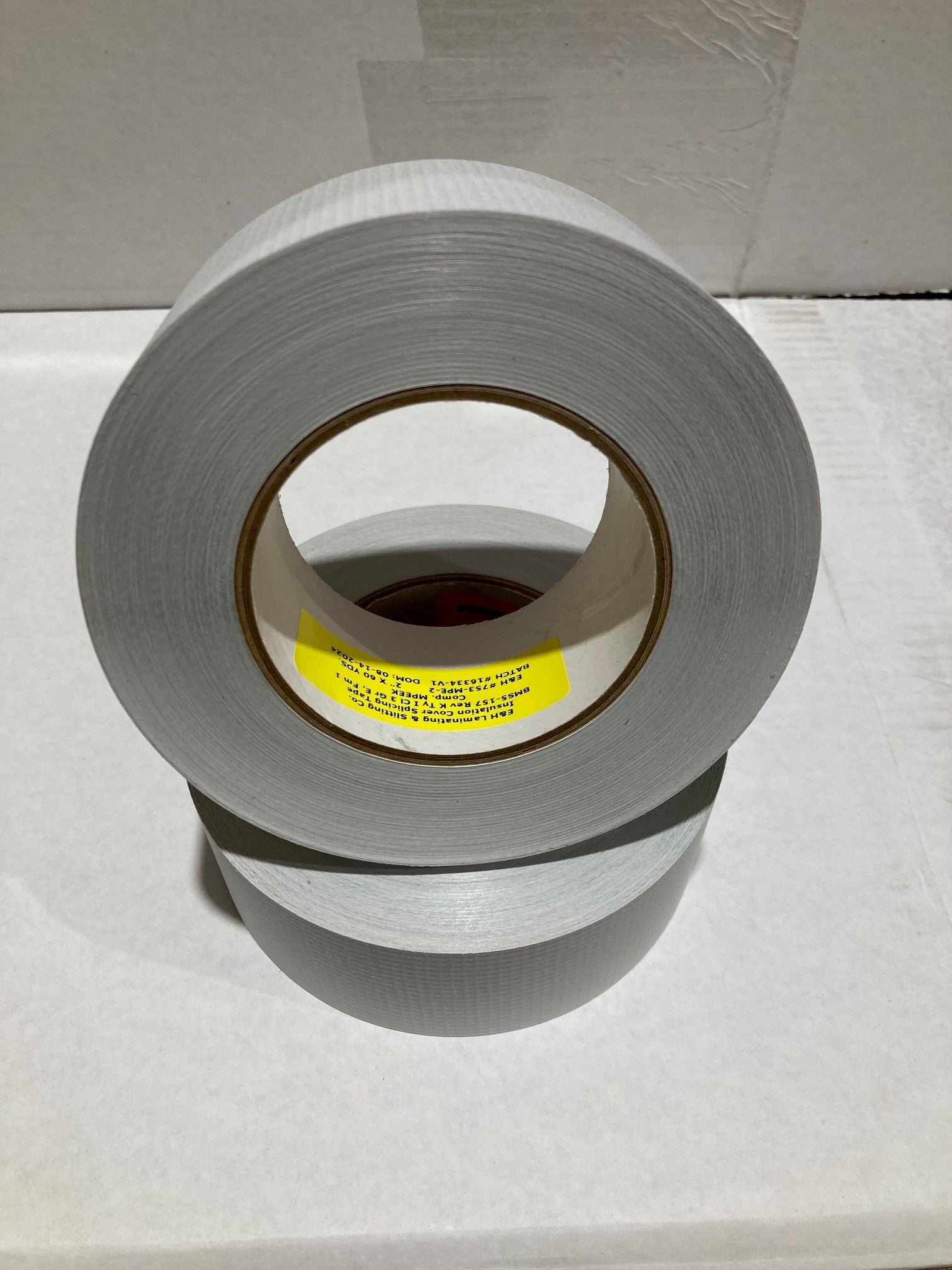

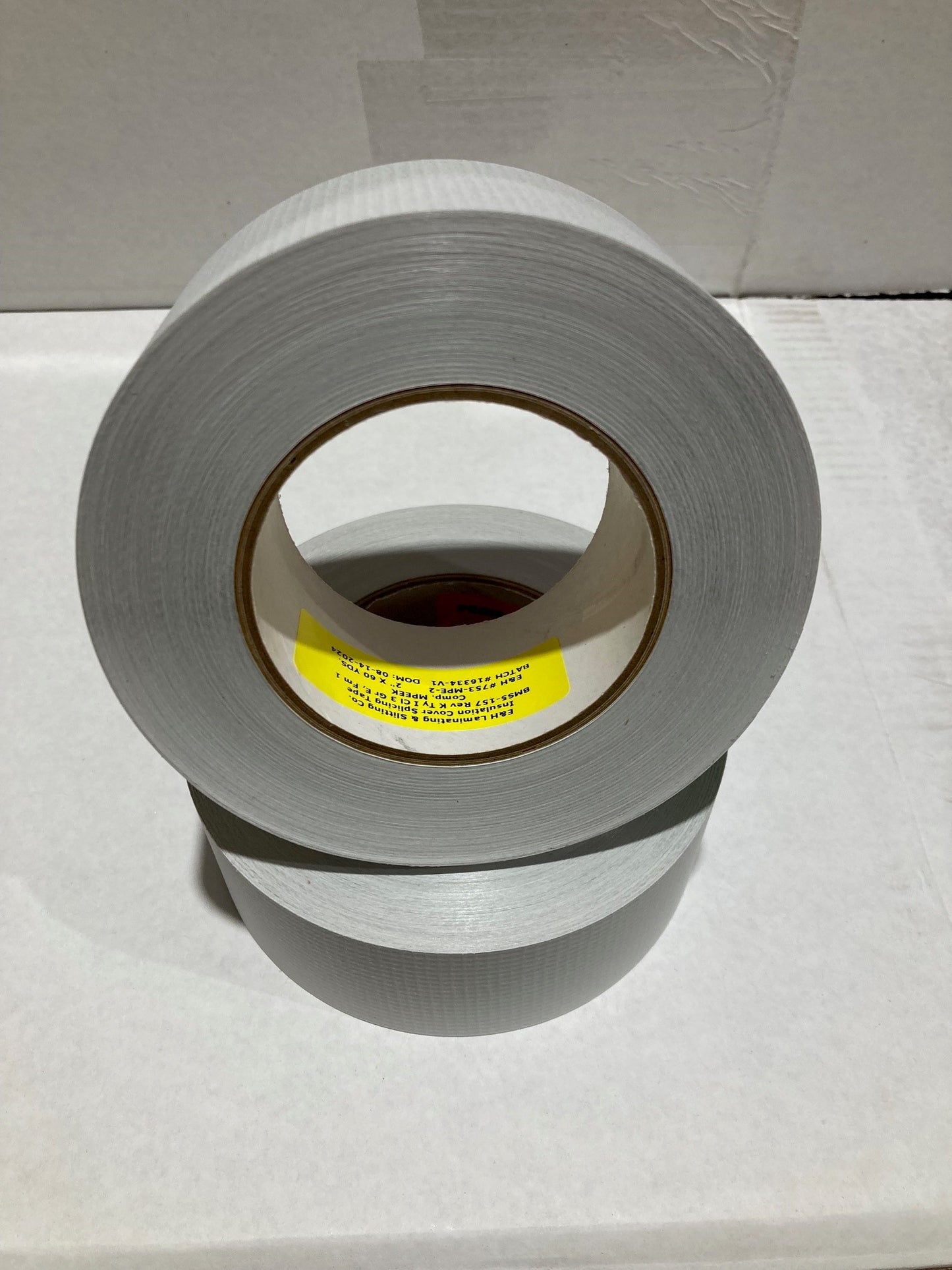

E&H 753-MPE is a dull gray metalized PEEK (polyether ether ketone) insulation blanket cover splicing tape — the highest-specification PEEK tape in the E&H lineup, adding Boeing BMS 5-157 Grade E to the approval range for exterior-exposed aircraft insulation blanket applications. Built on metalized PEEK film with a 10×10 visual scrim and a highly fire-retardant acrylic adhesive, it's engineered for insulation blanket fabrication and installation where the most stringent Boeing MPEEK specifications apply. At 1.85 oz/sq yd it is the lightest tape in the E&H PEEK range, and its 1.2" average burn length is the best fire performance in the entire E&H insulation blanket lineup. Meets Boeing BMS 5-157 Rev. K Type I Class 2 or 3, Grade A, C, or E, Form I, Comp MPEEK, plus FAR 25.856(A), FAR 25.853 (A or B), and BSS-7230.
Key Features of E&H 753-MPE PEEK Tape
- Grade A, C, and E approved — The broadest BMS 5-157 grade coverage in the E&H PEEK lineup; Grade E covers exterior-exposed applications the 753-MP does not
- Best-in-class fire performance — 1.2" average burn length, the tightest in the E&H insulation blanket tape range; 0-second flame time, no drips
- Lightest PEEK tape in the lineup — 1.85 oz/sq yd (±0.10 oz) for weight-critical insulation blanket assemblies
- Dull gray metalized PEEK film — Superior high-temperature resistance and durability; 10×10 visual scrim for dimensional stability and controlled tear
- FAA Critical Radiant Heat Panel pass — Meets FAR 25.856(A) heat release requirements for aircraft interior materials
What Is E&H 753-MPE Used For?
- Fabrication of aircraft insulation blanket covers requiring BMS 5-157 Grade E approval
- Installation and securing of thermal and acoustic insulation blankets
- Sealing sewn seams on insulation blanket covers
- Closing fabrication slits and holes around brackets, conduits, and other objects after installation
- Weight-critical insulation blanket applications where the lightest PEEK tape is required
- Exterior-exposed applications requiring Grade E
E&H 753-MPE Specifications
| Backing | Dull gray metalized PEEK (polyether ether ketone) film, 10×10 visual scrim |
| Adhesive | Highly fire-retardant acrylic pressure-sensitive |
| Weight | 1.85 oz/sq yd ±0.10 oz (62.73 g/m² max) |
| Tensile strength | 10.3 lb/in avg (45.82 N/25mm) — PSTC-31 |
| Peel strength (room temp) | 4.1 lb/in (18.24 N/25mm) — PSTC-1 / ASTM D3330 |
| Peel strength (120°F / 100% RH) | 4.3 lb/in (19.13 N/25mm) |
| Peel strength (160°F) | 4.0 lb/in (17.79 N/25mm) |
| Peel strength (−65°F) | 3.9 lb/in |
| Burn length | 1.2" average (12-second vertical burn) |
| Flame time | 0 seconds |
| Drip extinguishing time | No drips |
| Color | Dull gray (metalized) |
| Size options | 1", 2", 3" widths × 60 yd |
| Shelf life | 18 months minimum (cool, dry storage) |
| Manufacturer P/N | E&H 753-MPE |
| Manufacturer | E&H Laminating & Slitting Company, Paterson, NJ |
| Country of Origin | United States |
| Lead time | 1 week |
Key Specifications
| Backing | Dull gray metalized PEEK (polyether ether ketone) film, 10×10 visual scrim |
|---|---|
| Adhesive | Highly fire-retardant acrylic pressure-sensitive |
| Tensile strength | 10.3 lb/in avg (45.82 N/25mm) — PSTC-31 |
| Peel strength (room temp) | 4.1 lb/in (18.24 N/25mm) — PSTC-1 / ASTM D3330 |
| Peel strength (120°F / 100% RH) | 4.3 lb/in (19.13 N/25mm) |
| Peel strength (160°F) | 4.0 lb/in (17.79 N/25mm) |
| Peel strength (−65°F) | 3.9 lb/in |
| Weight | 1.85 oz/sq yd ±0.10 oz (62.73 g/m² max) |
| Burn length | 1.2" average (12-second vertical burn) |
| Flame time | 0 seconds |
| Drip extinguishing time | No drips |
| Color | Dull gray (metalized) |
| Shelf life | Minimum 18 months in cool, dry storage |
| Manufacturer P/N | E&H 753-MPE |
| Manufacturer | E&H Laminating & Slitting Company, Paterson, NJ |
| Country of Origin | United States |
| Lead time | 1 week |
Why This Tape Matches Your Spec
BMS 5-157 grades. Boeing classifies insulation blanket cover splicing tape by Grade. E&H 753-MPE is approved to Grade A, C, and E — the full range.
- Fabrication of aircraft insulation blanket covers requiring BMS 5-157 Grade E approval
- Installation and securing of thermal and acoustic insulation blankets
- Sealing sewn seams on insulation blanket covers
- Closing fabrication slits and holes around brackets, conduits, and other objects after installation
- Weight-critical insulation blanket applications where the lightest PEEK tape is required
- Exterior-exposed applications requiring Grade E
Approvals & Certifications
Available Sizes
Spec Guide
Frequently Asked Questions
What is E&H 753-MPE tape used for?
E&H 753-MPE is a metalized PEEK insulation blanket cover splicing tape used to fabricate aircraft insulation blanket covers requiring BMS 5-157 Grade E, seal sewn seams, close fabrication slits, and cover holes around brackets and conduits — including weight-critical and exterior-exposed applications.
What makes the 753-MPE different from other E&H insulation blanket tapes?
The 753-MPE is a metalized PEEK tape with the broadest BMS 5-157 grade coverage (A, C, and E, including exterior-exposed Grade E), the lightest weight at 1.85 oz/sq yd, and the best fire performance in the E&H lineup at a 1.2-inch average burn length.
What Boeing specification does E&H 753-MPE meet?
It meets Boeing BMS 5-157 Rev. K, Type I, Class 2 or 3, Grade A, C, or E, Form I, Comp MPEEK, and passes the FAA Critical Radiant Heat Panel test, FAR 25.856(A), FAR 25.853 (A or B), and Boeing BSS-7230.
