E&H 770-3FRS Metalized Polyester Insulation Blanket Splicing Tape
DMS-1984 Rev. M · Type 5 · Class 1
Metalized polyester filmFire-retardant acrylic pressure-sensitive
- BSS-7230
- Douglas DMS-1984 Rev. M
- FAR 25.853 (A
- B)
- Douglas DMS-1511
- Certificate of Conformance
- Burn Test Certificate included free
- COC Included
Couldn't load pickup availability
Please Note: All E&H products have a 1 week lead time
E&H 770-3FRD is a dull gray metalized Tedlar (polyvinyl fluoride) insulation blanket cover splicing tape — a fire-retardant pressure-sensitive splicing tape engineered for aircraft insulation blanket fabrication, installation, and repair. Built on metalized PVF/Tedlar film with a 10×10 visual scrim and a fire-retardant acrylic adhesive, it seals sewn seams and closes fabrication slits and holes around brackets, conduits, and other objects that pierce insulation. Manufactured by E&H Laminating & Slitting Company — the recognized specialist in aircraft insulation blanket tapes. Approved to Douglas DMS-1984 Rev. P Type 6 Class 2, the FAA Critical Radiant Heat Panel test (FAR 25.856(A)), FAR 25.853 (A, B), DMS-1511, and BSS-7230. Flame time is 0 seconds with no drips.
Documentation provided at no extra charge: Manufacturer's Certificate of Conformance referencing the DMS-1984 specification, plus a Burn Test Certificate referencing FAR 25.853 (A & B) and FAR 25.856 (A).
Key Features of E&H 770-3FRD Splicing Tape
- Metalized Tedlar (PVF) film carrier — Dull gray finish with 10×10 visual scrim for dimensional stability and controlled tear
- FAA Radiant Heat Panel approved — Meets FAR 25.856(A) for thermal/acoustic insulation, in addition to FAR 25.853
- Fire-retardant acrylic adhesive — 0-second flame time, no drips, 3.4" maximum burn length
- Builds strength over time — 180° peel rises from 54.4 oz/in at 15 minutes to 152.3 oz/in at 30 days on FR-primed aluminum
- Documentation included free — Certificate of Conformance and Burn Test Certificate with every order
What Is E&H 770-3FRD Used For?
- Fabrication of aircraft insulation blanket covers
- Installation and repair of insulation systems in all aircraft
- Sealing sewn seams on insulation blankets
- Closing fabrication slits or holes around brackets, conduits, or other objects that pierce insulation
E&H 770-3FRD Specifications
| Carrier | Dull gray metalized Tedlar (polyvinyl fluoride / PVF) film |
| Reinforcement | 10×10 visual scrim |
| Adhesive | Fire-retardant acrylic pressure-sensitive |
| Color | Dull gray (metalized) |
| Weight | 4.5 ±0.3 oz/sq yd |
| Tensile strength | 23.6 lb/in avg (105.02 N/25mm) |
| 180° peel (15 min) | 54.4 oz/in avg — PSTC-1 on FR primed aluminum |
| 180° peel (3 day) | 129.6 oz/in avg — PSTC-1 on FR primed aluminum |
| 180° peel (30 day) | 152.3 oz/in avg — PSTC-1 on FR primed aluminum |
| Burn length | 3.4" maximum (12-second vertical burn) |
| Flame time | 0 seconds |
| Drip flame time | No drips |
| Size options | 1", 2", 3" widths × 60 yd |
| Shelf life | 12 months minimum (cool, dry storage) |
| Manufacturer P/N | E&H 770-3FRD |
| Manufacturer | E&H Laminating & Slitting Company, Paterson, NJ |
| ECCN | EAR99 |
| Country of Origin | United States |
| Lead time | 1 week |

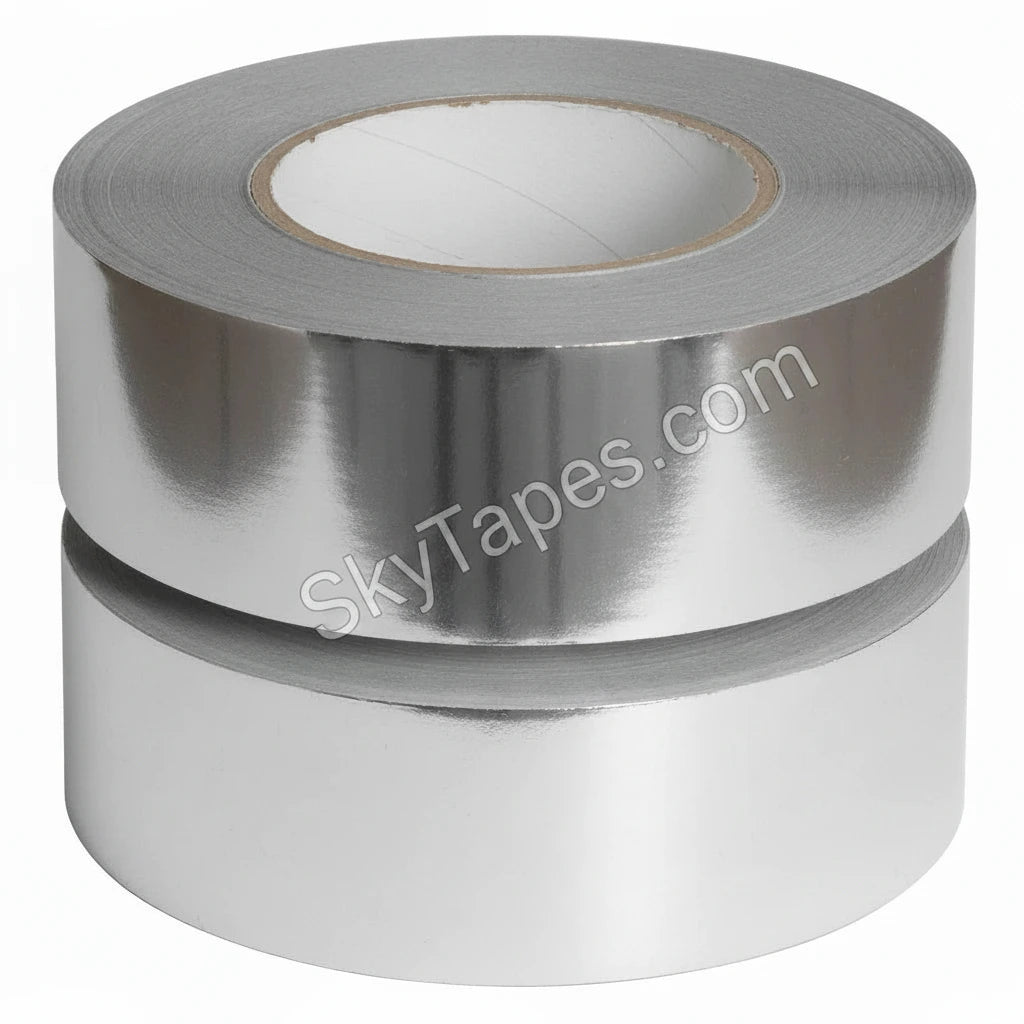

E&H 770-3FRS is a metalized polyester (silver/gray) insulation blanket cover splicing tape engineered for aircraft insulation blanket fabrication, installation, and repair. Built on metalized polyester film with a 20×10 polyester scrim and a fire-retardant acrylic pressure-sensitive adhesive, it seals sewn seams and closes fabrication slits and holes around brackets, conduits, and other objects that pierce insulation. Manufactured by E&H Laminating & Slitting Company — the recognized specialist in aircraft insulation blanket tapes. Approved to Douglas DMS-1984 Rev. M Type 5 Class 1, FAR 25.853 (A, B), DMS-1511, and BSS-7230. Flame time is 0 seconds with no drips.
Documentation provided at no extra charge: Manufacturer's Certificate of Conformance referencing the DMS-1984 specification, plus a Burn Test Certificate referencing FAR 25.853 (A & B).
Key Features of E&H 770-3FRS Splicing Tape
- Metalized polyester film carrier — Silver/gray finish with 20×10 polyester scrim reinforcement for dimensional stability
- Fire-retardant acrylic adhesive — 0-second flame time and no drips in 12-second vertical burn testing
- Builds strength over time — 180° peel rises from 56.6 oz/in at 15 minutes to 156.8 oz/in at 30 days on FR-primed aluminum
- Douglas DMS-1984 approved — Rev. M, Type 5, Class 1, plus DMS-1511 and Boeing BSS-7230
- Documentation included free — Certificate of Conformance and Burn Test Certificate with every order
What Is E&H 770-3FRS Used For?
- Fabrication of aircraft insulation blanket covers
- Installation and repair of insulation systems in all aircraft
- Sealing sewn seams on insulation blankets
- Closing fabrication slits or holes around brackets, conduits, or other objects that pierce insulation
E&H 770-3FRS Specifications
| Carrier | Metalized polyester film |
| Reinforcement | 20×10 polyester scrim |
| Adhesive | Fire-retardant acrylic pressure-sensitive |
| Color | Metalized (silver/gray) |
| Weight | 3.9 oz/sq yd |
| 180° peel (15 min) | 56.6 oz/in avg — PSTC-1 on FR primed aluminum |
| 180° peel (3 day) | 108.8 oz/in avg — PSTC-1 on FR primed aluminum |
| 180° peel (30 day) | 156.8 oz/in avg — PSTC-1 on FR primed aluminum |
| Burn length | 3.9" maximum (12-second vertical burn) |
| Flame time | 0 seconds |
| Drip flame time | No drips |
| Size options | 2", 3", 4" widths × 60 yd |
| Shelf life | 12 months minimum (cool, dry storage) |
| Manufacturer P/N | E&H 770-3FRS |
| Manufacturer | E&H Laminating & Slitting Company, Paterson, NJ |
| ECCN | EAR99 |
| Country of Origin | United States |
| Lead time | 1 week |
Key Specifications
| Carrier | Metalized polyester film |
|---|---|
| Reinforcement | 20×10 polyester scrim |
| Adhesive | Fire-retardant acrylic pressure-sensitive |
| Color | Metalized (silver/gray) |
| Weight | 3.9 oz/sq yd |
| 180° peel (15 min) | 56.6 oz/in avg — PSTC-1 on FR primed aluminum |
| 180° peel (3 day) | 108.8 oz/in avg — PSTC-1 on FR primed aluminum |
| 180° peel (30 day) | 156.8 oz/in avg — PSTC-1 on FR primed aluminum |
| Burn length | 3.9" maximum (12-second vertical burn) |
| Flame time | 0 seconds |
| Drip flame time | No drips |
| Shelf life | Minimum 12 months in cool, dry storage |
| Manufacturer P/N | E&H 770-3FRS |
| Manufacturer | E&H Laminating & Slitting Company, Paterson, NJ |
| ECCN | EAR99 |
| Country of Origin | United States |
| Lead time | 1 week |
Why This Tape Matches Your Spec
770-3FRS vs 770-3FRD. Both are E&H metalized insulation blanket splicing tapes approved to DMS-1984, but the film differs.
- Fabrication of aircraft insulation blanket covers
- Installation and repair of insulation systems in all aircraft
- Sealing sewn seams on insulation blankets
- Closing fabrication slits or holes around brackets, conduits, or other objects that pierce insulation
Approvals & Certifications
Available Sizes
Spec Guide
Frequently Asked Questions
What is E&H 770-3FRS tape used for?
E&H 770-3FRS is a metalized polyester insulation blanket cover splicing tape used to fabricate aircraft insulation blanket covers, install and repair insulation systems, seal sewn seams, and close fabrication slits and holes around brackets, conduits, and other objects that pierce insulation.
What specification does E&H 770-3FRS meet?
E&H 770-3FRS is approved to Douglas DMS-1984 Rev. M Type 5 Class 1, FAR 25.853 (A, B), DMS-1511, and the BSS-7230 12-second vertical burn test, with a 0-second flame time and no drips. A Certificate of Conformance and Burn Test Certificate are included free.
What sizes does E&H 770-3FRS come in?
It is available in 2", 3", and 4" widths on 60-yard rolls, with custom widths and lengths available on request. All E&H products carry a 1-week lead time.
