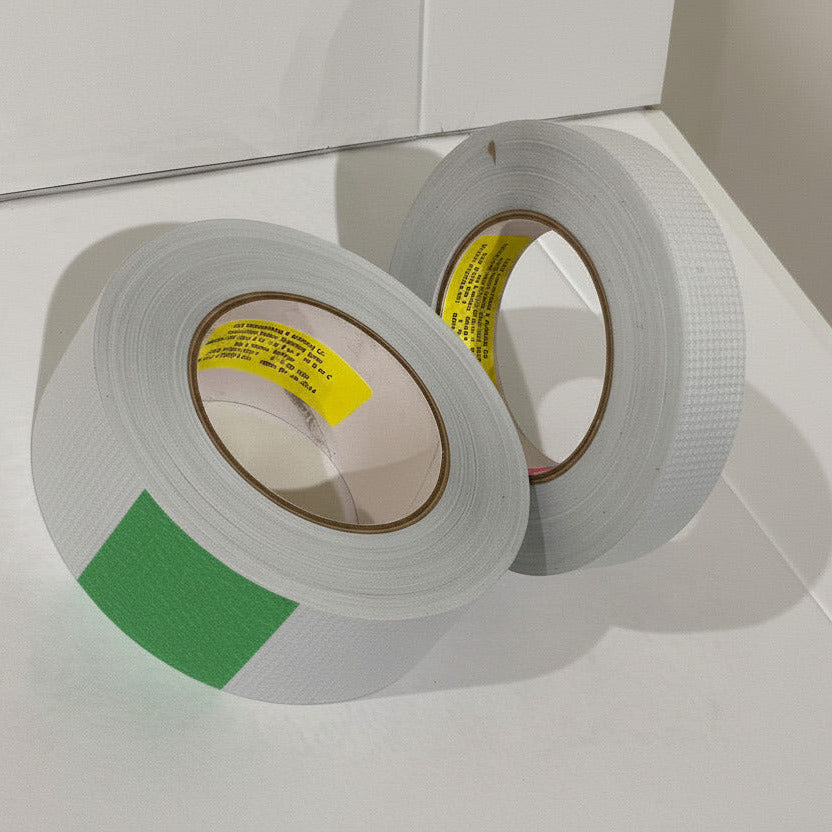

E&H 753-MP Metalized PEEK Insulation Cover Splicing Tape
BMS 5-157 Rev. K · Type I · Class 2 or 3 · Grade A or C · Form I · Comp MPEEK
Dull gray metalized peekHighly fire-retardant acrylic pressure-sensitive
- BMS 5-157 Rev. K
- Form I
- Comp MPEEK
- BSS-7230
- Critical Radiant Heat Panel
- FAR 25.856(A)
- FAR 25.853 (A or B)
- COC Included
Couldn't load pickup availability

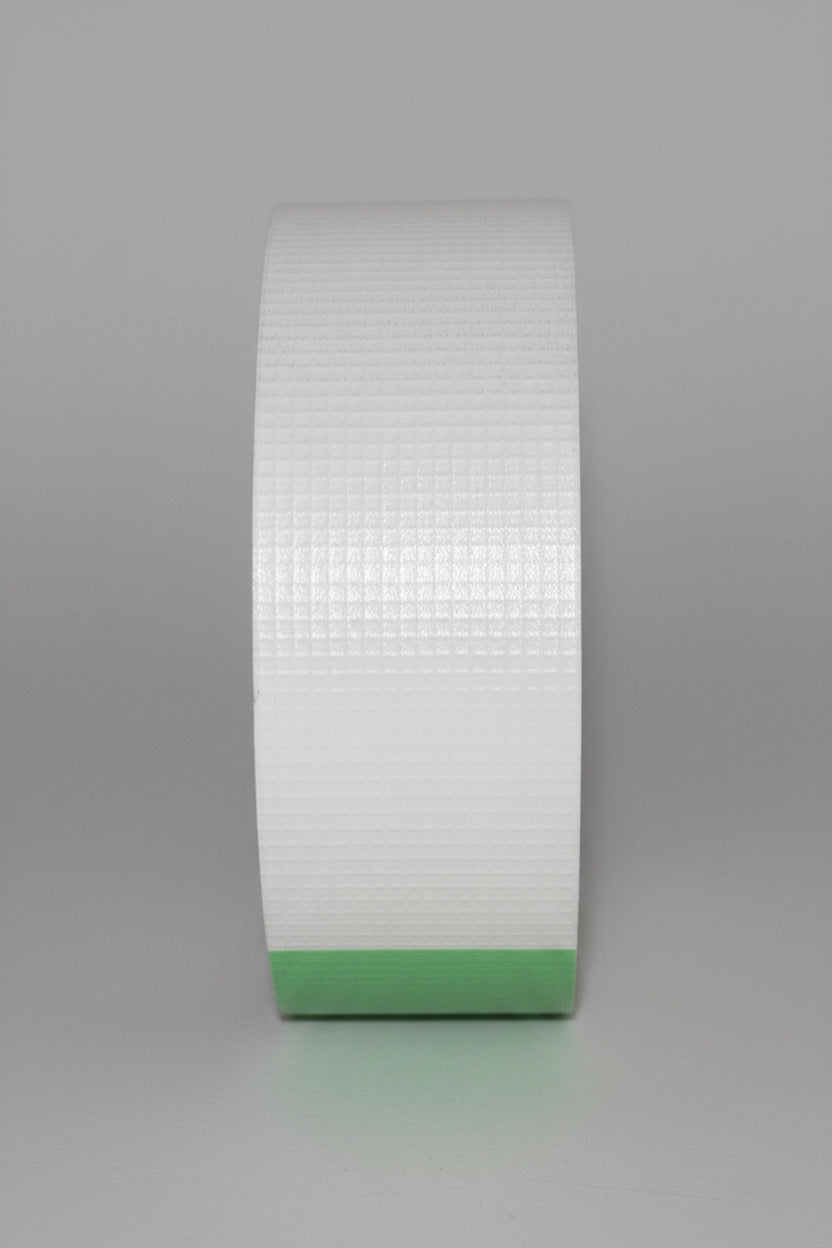

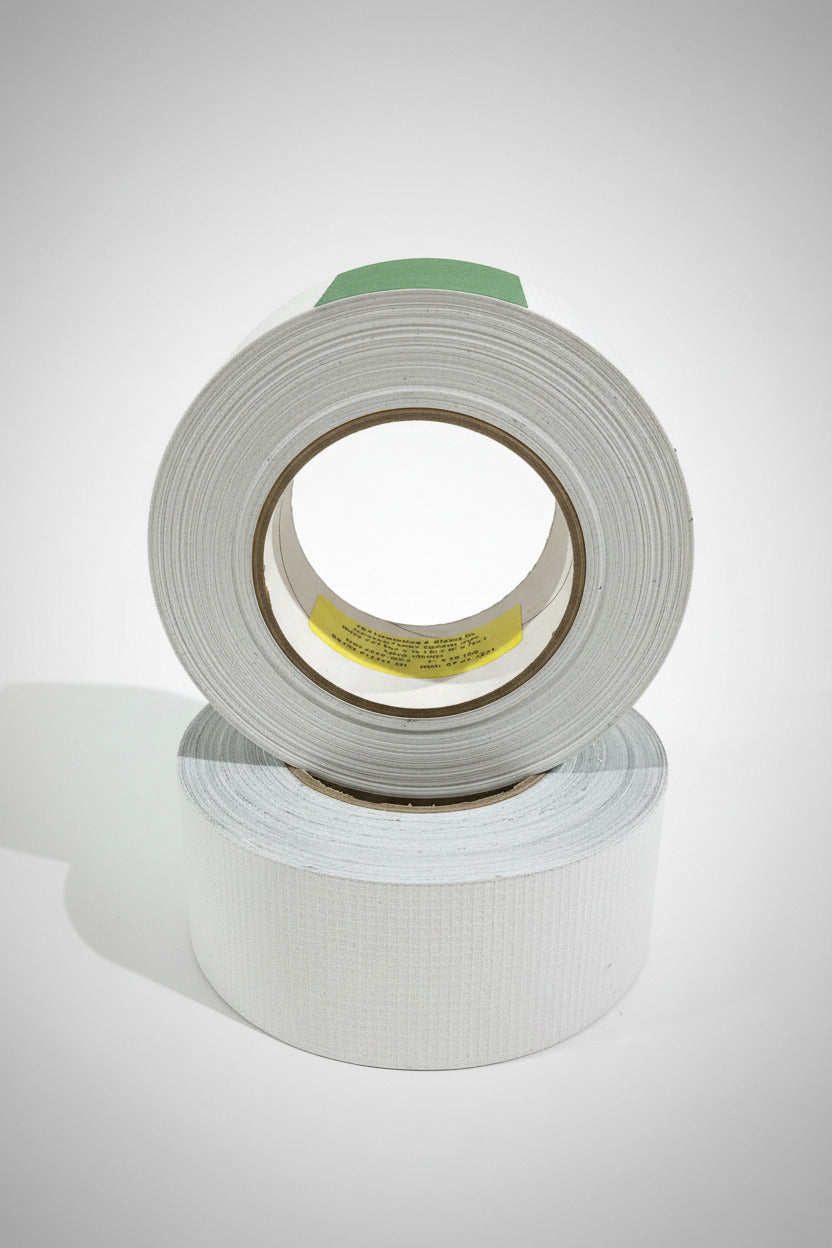

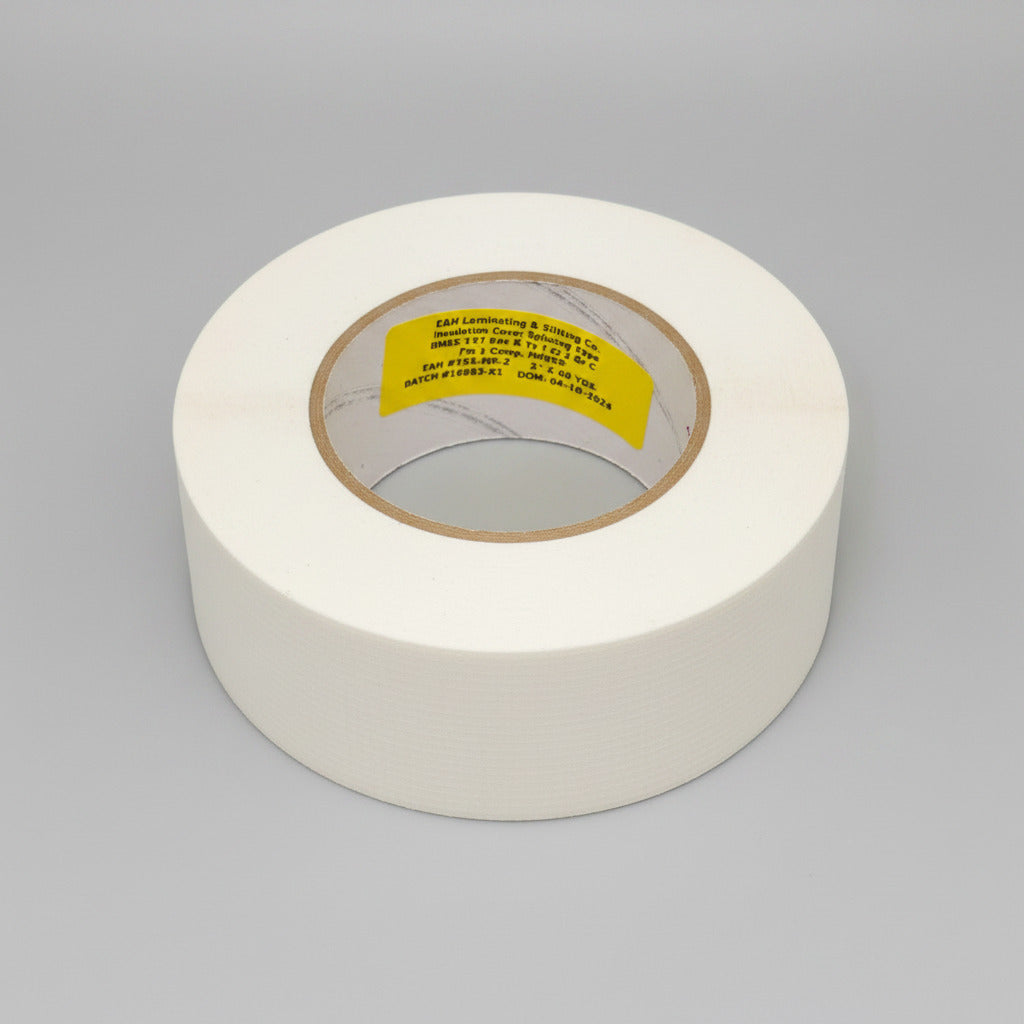

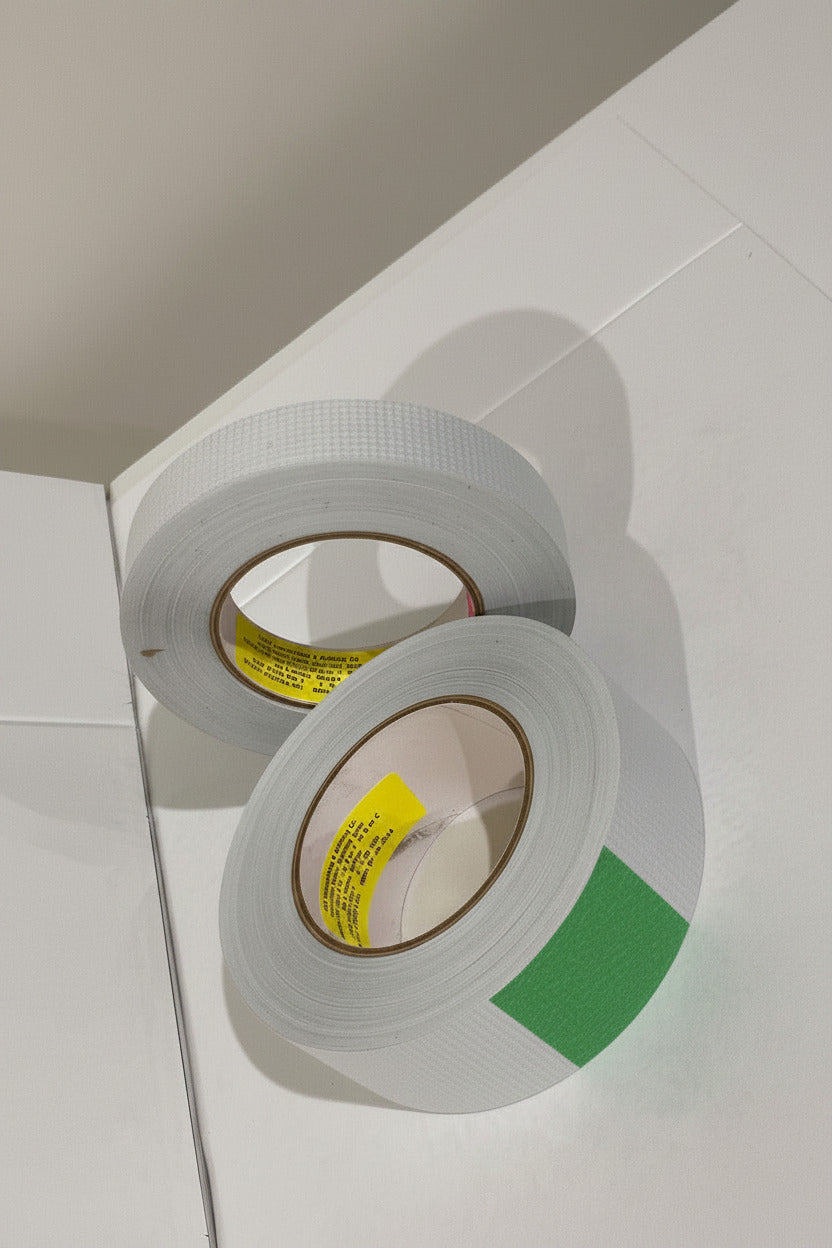

E&H 753-MP is a dull gray metalized PEEK (polyether ether ketone) pressure-sensitive insulation cover splicing tape — a fire-retardant PEEK tape engineered for the fabrication of aircraft insulation blanket covers and the installation of insulation blankets. Built on metalized PEEK film with a 10×10 visual scrim and a highly fire-retardant acrylic adhesive, it's purpose-built for sealing sewn seams and closing fabrication slits or holes around brackets, conduits, and other objects after installation. Manufactured by E&H Laminating & Slitting Company — the recognized specialist in aircraft insulation blanket tapes. Meets Boeing BMS 5-157 Rev. K Type I Class 2 or 3, Grade A or C, Form I, Comp MPEEK, plus FAR 25.856(A), FAR 25.853 (A or B), and BSS-7230.
Key Features of E&H 753-MP PEEK Tape
- Grade A and C approved — Meets BMS 5-157 Grade A (for use on BMS 8-377 cover film) and Grade C; Grade B is obsolete per Boeing Rev. J — use Grade A
- Dull gray metalized PEEK film — Superior high-temperature resistance and durability; distinctive finish for easy identification during blanket assembly
- 10×10 visual scrim reinforcement — Dimensional stability and controlled tear for precise fabrication and field installation
- 0-second flame time, no drips — Highly fire-retardant acrylic adhesive; 1.4" average burn length in 12-second vertical burn testing
- Broad temperature peel performance — Tested from −65°F through 160°F, including 120°F at 100% RH
What Is E&H 753-MP Used For?
- Fabrication of aircraft insulation blanket covers
- Installation and securing of thermal and acoustic insulation blankets
- Sealing sewn seams on insulation blanket covers
- Closing fabrication slits and holes around brackets, conduits, and other objects after installation
E&H 753-MP Specifications
| Backing | Dull gray metalized PEEK (polyether ether ketone) film, 10×10 visual scrim |
| Adhesive | Highly fire-retardant acrylic pressure-sensitive |
| Total thickness | Not specified (nominal weight 1.9 oz/sq yd ±0.3 oz) |
| Tensile strength | 10.3 lb/in avg (45.83 N/25mm) |
| Peel strength (room temp) | 3.8 lb/in (16.72 N/25mm) |
| Peel strength (120°F / 100% RH) | 3.9 lb/in (17.16 N/25mm) |
| Peel strength (160°F) | 4.1 lb/in (18.24 N/25mm) |
| Peel strength (−65°F) | 3.6 lb/in (16.02 N/25mm) |
| Burn length | 1.4" average (12-second vertical burn) |
| Flame time | 0 seconds |
| Drip extinguishing time | No drips |
| Color | Dull gray (metalized) |
| Size options | 1", 2", 3" widths × 60 yd |
| Shelf life | 18 months minimum (cool, dry storage) |
| Manufacturer P/N | E&H 753-MP |
| Manufacturer | E&H Laminating & Slitting Company, Paterson, NJ |
| Country of Origin | United States |
| Lead time | 1 week |
Key Specifications
| Backing | Dull gray metalized PEEK (polyether ether ketone) film, 10×10 visual scrim |
|---|---|
| Adhesive | Highly fire-retardant acrylic pressure-sensitive |
| Tensile strength | 10.3 lb/in avg (45.83 N/25mm) |
| Peel strength (room temp) | 3.8 lb/in (16.72 N/25mm) |
| Peel strength (120°F / 100% RH) | 3.9 lb/in (17.16 N/25mm) |
| Peel strength (160°F) | 4.1 lb/in (18.24 N/25mm) |
| Peel strength (−65°F) | 3.6 lb/in (16.02 N/25mm) |
| Weight | 1.9 oz/sq yd ±0.3 oz (64.79 g/m² max) |
| Burn length | 1.4" average (12-second vertical burn) |
| Flame time | 0 seconds |
| Drip extinguishing time | No drips |
| Color | Dull gray (metalized) |
| Shelf life | Minimum 18 months in cool, dry storage |
| Manufacturer P/N | E&H 753-MP |
| Manufacturer | E&H Laminating & Slitting Company, Paterson, NJ |
| Country of Origin | United States |
| Lead time | 1 week |
Why This Tape Matches Your Spec
BMS 5-157 grades. Boeing classifies insulation blanket cover splicing tape by Grade. E&H 753-MP is approved to Grade A and Grade C.
- Fabrication of aircraft insulation blanket covers
- Installation and securing of thermal and acoustic insulation blankets
- Sealing sewn seams on insulation blanket covers
- Closing fabrication slits and holes around brackets, conduits, and other objects after installation
Approvals & Certifications
Available Sizes
Spec Guide
Frequently Asked Questions
What is E&H 753-MP tape used for?
E&H 753-MP is a metalized PEEK insulation cover splicing tape used to fabricate aircraft insulation blanket covers, install thermal and acoustic insulation blankets, seal sewn seams, and close fabrication slits and holes around brackets and conduits after installation.
What is the difference between E&H 753-MP and 753-MPE?
The 753-MP is approved to BMS 5-157 Grade A or C, while the 753-MPE adds Grade E for exterior-exposed applications and is lighter (1.85 vs 1.9 oz/sq yd) with a shorter average burn length. Both are metalized PEEK insulation blanket splicing tapes with 0-second flame time.
What Boeing specification does E&H 753-MP meet?
It meets Boeing BMS 5-157 Rev. K, Type I, Class 2 or 3, Grade A or C, Form I, Comp MPEEK, and passes the FAA Critical Radiant Heat Panel test, FAR 25.856(A), FAR 25.853 (A or B), and Boeing BSS-7230.
