CVT-636 Colored Vinyl Tape — 16 OSHA Colors, 6-Mil PVC | 3M 471 Alternative

Special order item · 1–2 week lead time · SOLD “BY THE CASE” ONLY · 16 OSHA colors

The versatile vinyl tape built for color coding, lane marking, and OSHA safety identification — 6-mil soft PVC backing, write-on matte finish, and 16 vibrant stocked colors. Trusted across manufacturing floors, warehouses, vehicles, and equipment where color-coded organization isn't just helpful — it's required.

CVT-636 is a premium 6-mil soft PVC vinyl tape with a synthetic and natural rubber resin blend adhesive. The highly conformable matte-surface backing accepts pen and marker for on-the-fly labeling, provides an effective vapor and moisture barrier, and stands up to sun, water, fungus, bacteria, oils, acids, alkalies, and corrosive chemicals — making it a workhorse for industrial color-coding, decorating, masking, harness wrapping, and duct sealing applications.

Special Order Product

CVT-636 is a made-to-order product with a standard lead time of 1–2 weeks from the date of order confirmation.

A minimum order quantity (MOQ) SOLD “BY THE CASE” ONLY

Key Features

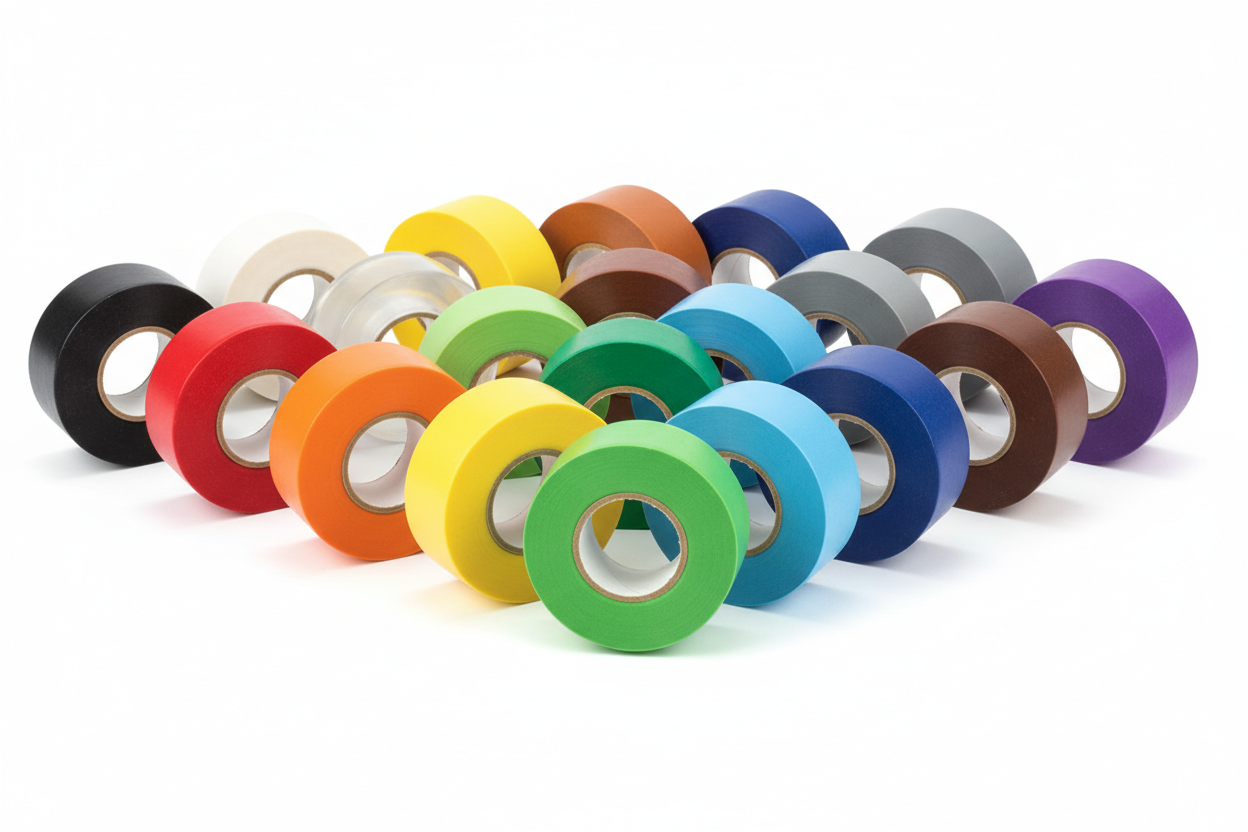

• 16 OSHA-compliant colors — Black, White, Clear, Yellow, Red, Orange, Light Green, Kelly Green, Emerald Green, Sky Blue, Medium Blue, Dark Blue, Medium Brown, Dark Brown, Gray, and Purple
• 6-mil soft PVC backing — Thicker than 3M 471 (5.2 mil) for enhanced durability and impact resistance
• Matte write-on surface — Accepts pen, marker, and pencil for labeling and identification on the fly
• 150% elongation — Highly conformable to curved, convex, and irregular surfaces without lifting
• Synthetic and natural rubber resin blend adhesive — Aggressive instant tack with clean removal on most substrates
• Chemical and weather resistant — Withstands sun, water, fungus, bacteria, oils, acids, alkalies, and corrosive chemicals
• Effective vapor and moisture barrier — Moisture Vapor Transmission less than 2.5% (gm/100 sq in/24 hrs)
• Long shelf life — Resistant to aging with an Accelerated Aging Factor greater than 100%

Specifications

• Backing: Matte surface, soft PVC (Polyvinyl Chloride)
• Adhesive: Synthetic and Natural Rubber Resin Blend
• Total Thickness: 6 mil (0.15 mm)
• Adhesion to Steel: 18 oz/inch
• Tensile Strength: 14 lbs/inch
• Elongation at Break: 150%
• Service Temperature: -20°F to +140°F
• Moisture Absorption: Less than 1.5%
• Moisture Vapor Transmission: < 2.5% (gm/100 sq in/24 hrs)
• Metal Corrosion: None to copper, brass, steel, or aluminum
• Roll Length: 36 yards (33 m)
• Core: 3" neutral paper core (plastic core available as CVT-636P)

Compliance & Standards

• A-A-1689B, Type II — Federal specification for pressure-sensitive vinyl tape (supersedes A-A-1689A)
• Meets cancelled spec PPP-T-66E, Type I, Class 2 — Legacy federal compliance for color-coded vinyl tape
• OSHA color-coding compliant — All 16 stocked colors meet OSHA standards for safety and hazard identification

Applications

• OSHA color coding and lane marking on warehouse and factory floors
• Safety zone identification and hazard marking
• Decorating and striping on vehicles, boats, and sporting equipment
• Hard chrome plating and anodizing masking
• Wire harness wrapping and pipe identification
• Duct work and joint sealing
• Printed circuit board (PCB) masking
• General-purpose color coding and asset tagging

Why Choose CVT-636 Over 3M 471

CVT-636 and 3M 471 are both premium colored vinyl tapes engineered for OSHA color coding, lane marking, and general-purpose industrial applications. Here's how they compare head-to-head:

• 16 colors vs. 9 — CVT-636 stocks nearly twice as many OSHA-compliant colors, including three shades of green, three shades of blue, and two shades of brown for more granular color-coding systems
• 6-mil vs. 5.2-mil thickness — CVT-636's thicker backing provides greater durability and abrasion resistance in high-traffic environments
• 150% vs. 130% elongation — CVT-636 conforms more aggressively to curved and irregular surfaces without lifting
• Wider cold-weather range — CVT-636 performs reliably from -20°F (vs. 3M 471's 40°F minimum), making it the better choice for cold storage, freezer environments, and outdoor winter applications
• Equivalent tensile strength — Both deliver 14 lbs/inch tensile strength for reliable hold and clean one-piece removal
• Cost-effective spec match — CVT-636 delivers comparable or superior performance to 3M 471 at a competitive price point

3M 471 holds an edge in two areas: higher adhesion to steel (23 oz/in vs. 18 oz/in) and higher maximum service temperature (170°F vs. 140°F). For applications requiring extreme heat resistance or maximum peel strength on steel, 3M 471 may be the better choice. For everything else — color variety, cold-weather performance, conformability, and value — CVT-636 is the stronger specification.

Surface Preparation

Surface must be clean, dry, and free of dust, grease, and oil before application. For best results, apply to a clean, dry surface at temperatures between 60°F and 85°F (16°C to 27°C). Store rolls in a cool, dry area at 60°F to 80°F with 40–50% relative humidity, out of direct sunlight.
