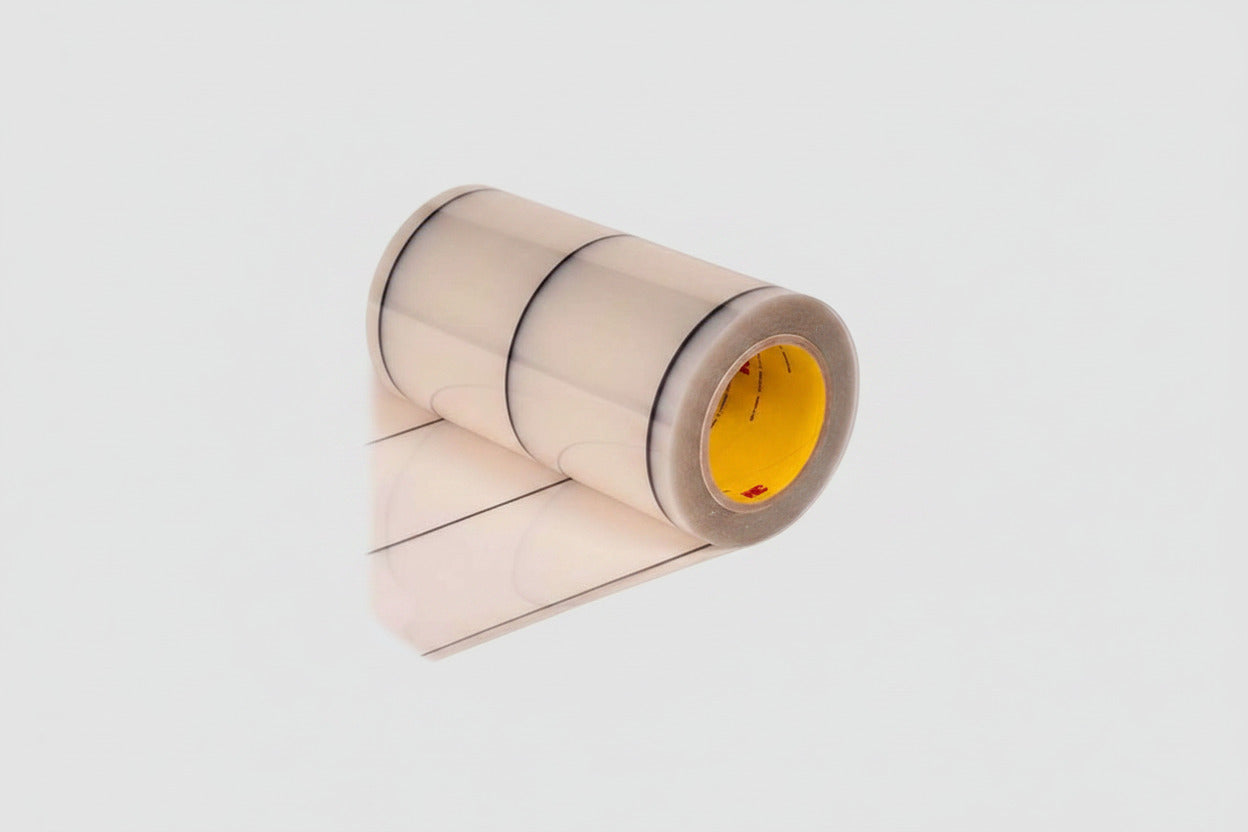

3M™ 8663/8663DL Polyurethane Protective Tape | Aircraft Floor Corrosion
3M™ 8663/8663DL Polyurethane Protective Tape | Aircraft Floor Corrosion
Couldn't load pickup availability
3M™ 8663/8663DL Polyurethane Protective Tape is an exceptionally tough, abrasion-resistant polyurethane elastomer tape that resists punctures, tearing, abrasion, and erosion. UV-stabilized and built on a long-aging, solvent-resistant acrylic adhesive, it provides a simple, durable method of protecting aircraft surfaces from corrosion, abrasion, and minor impact damage. The 8663DL dual-liner version is the primary choice for aircraft floor covering and corrosion protection per Boeing Service Letters 737-SL-53-034 and 757-SL-53-018.
Designed for high-wear and environmentally exposed aircraft surfaces, its long-aging acrylic adhesive forms a permanent bond protected by an easy-release plastic liner, making it ideal for MRO operations and routine refurbishment where corrosion and abrasion protection are critical. The transparent film allows visual inspection without removal, and its tough elastomer backing resists punctures and erosion without lifting or flagging.
Manufacturer's Certificate of Conformance included FREE of charge.
Key Features
- Tough polyurethane elastomer film backing — Resists punctures, tearing, abrasion, and erosion in high-wear aircraft zones
- UV-stabilized transparent film — Formulated for resistance to ultraviolet light; allows visual inspection through the tape without removal
- Long-aging acrylic adhesive — Solvent-resistant, pressure-sensitive permanent bond protected by an easy-release plastic liner
- Corrosion & abrasion resistant — Reliable barrier that isolates and protects substrates from environmental damage and corrosive elements
- Three liner configurations — Single polypropylene, single skip-slit polypropylene, or dual liner (8663DL) for application versatility
- Paintable — May be painted per 3M Technical Bulletin painting instructions
- Boeing service-letter approved — Primary use is aircraft floor covering / corrosion protection per Boeing Service Letters 737-SL-53-034 and 757-SL-53-018
Applications
- Aircraft floor covering and corrosion protection (8663DL) per Boeing Service Letters 737-SL-53-034 and 757-SL-53-018
- Surface protection from corrosion, abrasion, and minor impact damage
- UV-resistant surface coating for indoor and outdoor applications
- Isolating and protecting substrates from environmental damage and corrosive elements
- Leading-edge and high-wear surface protection
Specifications
| Backing | Abrasion-resistant polyurethane elastomer film |
| Adhesive | Long-aging, solvent-resistant acrylic (pressure sensitive) |
| Liner | Easy-release plastic (polypropylene; polyester top liner on 8663DL) |
| Total thickness | 0.018 inch (0.46 mm) |
| Film thickness | 0.016 inch (0.40 mm) |
| Adhesive thickness | 0.002 inch (0.06 mm) |
| Tensile strength | 117 lb/in (2049 N/100mm) — ASTM D882 |
| Adhesion to bare aluminum | 84 oz/in (92 N/100mm) — ASTM D-1000 |
| Adhesion to acrylic enamel paint | 56 oz/in (61 N/100mm) — ASTM D-1000 |
| Adhesion to ABS plastic | 65 oz/in (71 N/100mm) — ASTM D-1000 |
| Elongation | 500% — ASTM D882 |
| Approximate weight | 1.04 lb/yd² (516.7 g/m²), excludes liner |
| Color | Transparent |
| Maximum service temperature | 180°F (82°C) |
| Shelf life | 2 years from date of manufacture (or as expressly certified by 3M); store in a clean area, away from excessive moisture and out of direct sunlight, in the shipping carton |
| Size options | 1/2" min. to 48" max. width × 36 yd (1.25 cm to 122 cm × 32.9 m) standard roll length |
Product Attributes
| Manufacturer | 3M Company — Automotive & Aerospace Solutions Division |
| Manufacturer P/N | 8663 / 8663DL |
| Country of Origin | United States |
| Color Family | Clear |
| Pack Quantity | 1 Roll or Case |
| Quality System | Manufactured under a 3M Quality Management System registered to AS9100 |
| Shipping Classification | No special/hazardous labeling required for air, ground, or water shipment |
Certifications & Approvals
- Boeing Service Letters — 737-SL-53-034, 757-SL-53-018 (aircraft floor covering / corrosion protection)
- Quality Standard — Manufactured under a 3M Quality Management System registered to AS9100
- Current lots ship with a 3M Certificate of Conformance
