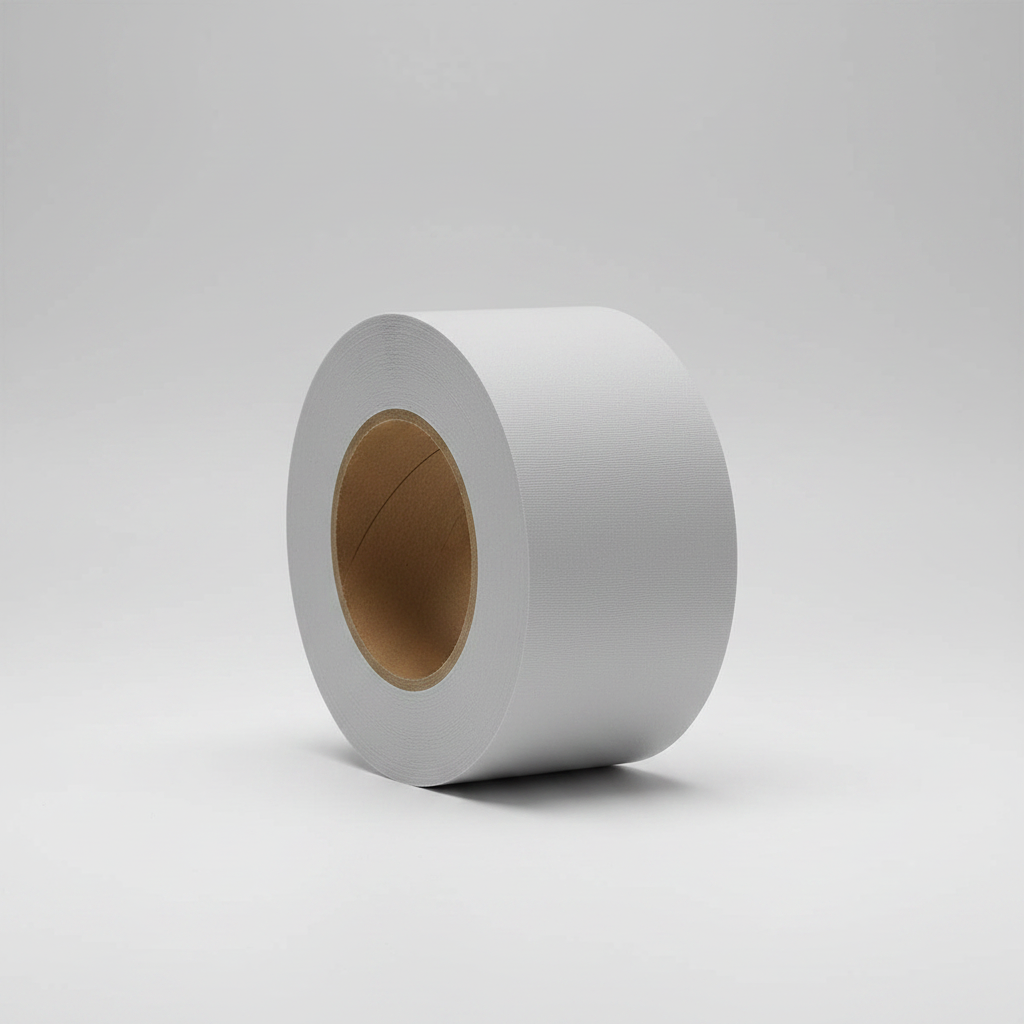

3M™ Glass Cloth Tape 398FR
3M™ Glass Cloth Tape 398FR
Couldn't load pickup availability
3M™ Glass Cloth Tape 398FR is a flame-retardant, single-sided glass cloth tape with a high-adhesion acrylic adhesive, engineered primarily for sealing aircraft cargo bay panels. Its highly conformable white glass cloth backing offers high edge-tear resistance plus excellent puncture, abrasion, and solvent resistance, blending cleanly into finished aerospace work. The trusted choice for permanent cargo-compartment sealing, it bonds securely over difficult textures and uneven or curved surfaces, and is also available in a printed version (398FRP).
Designed for insulating, bundling, splicing, holding, and sealing applications, its long-aging acrylic adhesive provides high, secure adhesion for extended periods across a wide range of climate and temperature conditions. A blue polyethylene film liner assists with ease of application, and the formulation contains no antimony and is EU compliant per directive 2003/11/EC (restricting Penta-BDE and Octa-BDE flame retardants) — making it an environmentally responsible choice for MRO and aircraft interior work.
Manufacturer's Certificate of Conformance included FREE of charge.
Key Features
- White glass cloth backing — Highly conformable with high edge-tear, puncture, and abrasion resistance; clean finished appearance
- High-adhesion acrylic adhesive — Excellent long-aging properties ideal for permanent applications; secure bond across wide temperature ranges
- Flame retardant — Meets FAR 25.853(a) and FAR 25.855(d) burn requirements
- High conformability — Bonds over difficult textures and uneven or curved surfaces
- Good solvent & abrasion resistance — Durable performance in demanding aerospace environments
- Environmentally responsible — Contains no antimony; EU compliant per directive 2003/11/EC (Penta-/Octa-BDE restricted)
- Available printed (398FRP) — Skip-slit and printed-liner versions for ease of application
Applications
- Sealing aircraft cargo bay panels (permanent seal)
- Insulating, bundling, splicing, holding, and sealing applications
- Sealing thermal and acoustic insulation panels requiring high adhesion and flame retardancy
- Protection of wire harnesses, electrical cables, and hoses from temperature extremes and abrasion
- Aircraft window and duct sealing, seat repair, and general aerospace/industrial use
Specifications
| Backing | White glass cloth |
| Adhesive | Acrylic (pressure sensitive) |
| Liner | Blue HD polyethylene film (skip-slit available) |
| Tape thickness | 0.18 mm (approx. 7 mil) — ISO 4593 |
| Tensile strength | 220 N/25mm — AFERA 5004 |
| Peel adhesion to stainless steel | 15 N/25mm — ISO 4578 |
| Elongation at break | 9% — AFERA 5004 |
| Dielectric strength | 3.8 kV — EN 60243-1 |
| Color | White (blue liner) |
| Operating temperature range | −30°C to +120°C (US data sheet: −20°F to +250°F / −29°C to +121°C) |
| Shelf life | 12 months from date of dispatch (current US data sheet states 24 months from date of manufacture); store at 15–27°C, out of direct sunlight |
Product Attributes
| Manufacturer | 3M Company |
| Manufacturer P/N | 398FR (398FRP printed version) |
| Color Family | White |
| Pack Quantity | 1 Roll or Case |
| EU Compliance | Directive 2003/11/EC (Penta-/Octa-BDE restricted); no antimony |
Certifications & Approvals
- FAA — FAR 25.853(a) Appendix F Part I and FAR 25.855(d) Appendix F Part I burn testing
- Boeing — Meets and can be qualified to BMS 5-146 Type I, Class I, Grade A
- MIL-A-3316C — Sections 3.13.1 and 3.13.2
- EU Directive 2003/11/EC — Compliant (restricts Penta-BDE and Octa-BDE flame retardants)
- Current lots ship with a 3M Certificate of Conformance
