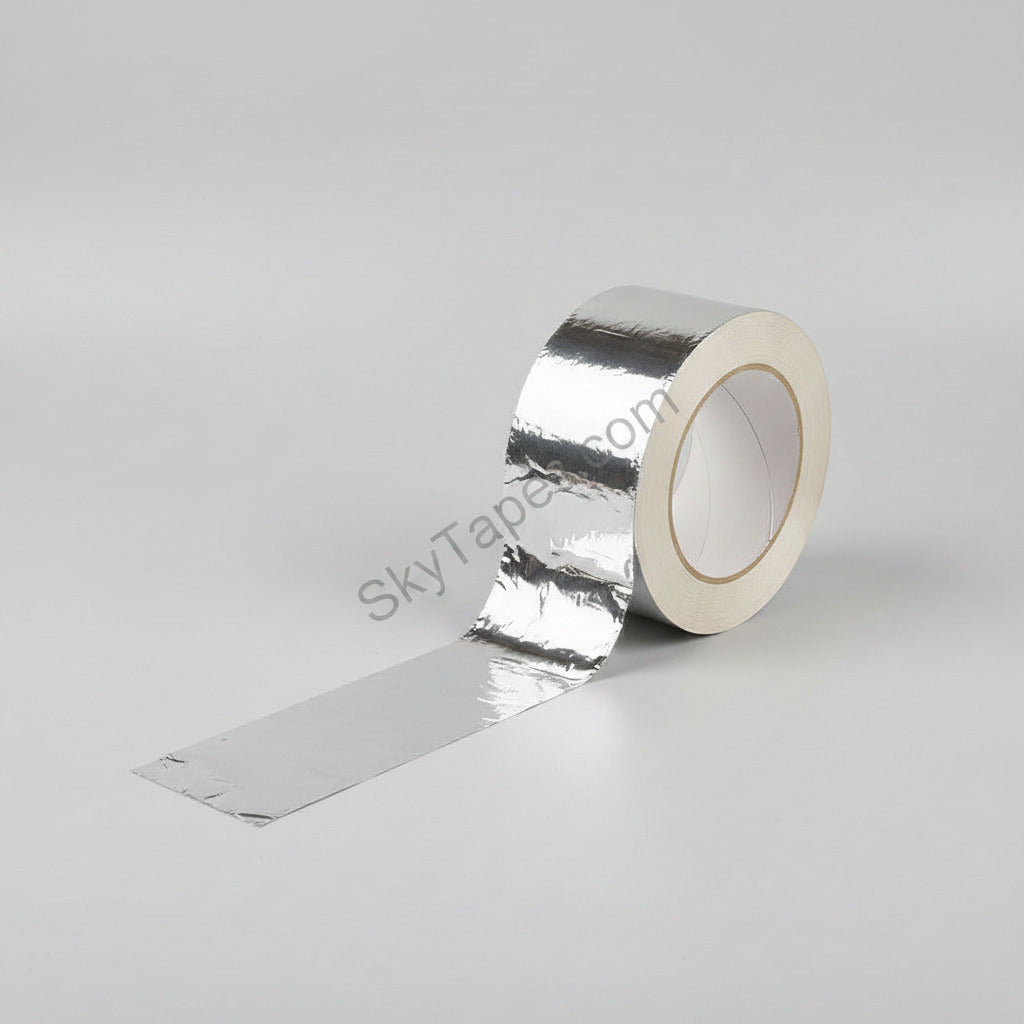

AF-30A Aluminum Foil Tape — 3-Mil Acrylic, 60-Yard Rolls | 3M 427 Alternative

Special order item · 1–2 week lead time · Case Quantity Purchases Only · 3M 427 alternative

The aluminum foil tape engineered for serious vapor barriers, heat reflection, and chemical masking — 3-mil dead-soft aluminum, aggressive acrylic adhesive, and 72 oz/in adhesion to steel. Trusted by HVAC contractors, electroplaters, and insulation pros where a weak bond isn't an option.

AF-30A is a 3.0-mil dead-soft aluminum foil tape with a 2.0-mil solvent-based acrylic adhesive and an easy-release silicone paper liner. The malleable aluminum backing conforms to irregular and curved surfaces, while the high-performance acrylic adhesive delivers quick, positive grab and long-term hold across a wide temperature range. Flame resistant, weather resistant, and an excellent moisture vapor barrier — engineered for indoor and outdoor industrial applications.

Special Order Product

AF-30A is a made-to-order product with a standard lead time of 1–2 weeks from the date of order confirmation.

Key Features

• 72 oz/in adhesion to steel — 44% stronger adhesion than 3M 427 (50 oz/in) for demanding bonding applications
• 3.0-mil dead-soft aluminum backing — Thicker than 3M 427 (2.8 mil) for enhanced durability and tear resistance
• Aggressive solvent acrylic adhesive — 2.0 mil thick, delivering quick positive grab and long-term hold
• Easy-release silicone paper liner — Clean unwind, ideal for die-cutting and converting operations
• Wide service temperature range — Performs from -40°F to 300°F (-40°C to 149°C)
• Low-temperature application capable — Can be applied at temperatures as low as 50°F (10°C)
• Highly conformable — Malleable foil conforms to curved, irregular, and uneven surfaces without tearing
• Flame and weather resistant — Excellent water vapor barrier and air-leakage protection
• High reflectivity — Reflects heat and light for thermal shielding and electrical isolation

Specifications

• Backing: 3.0 mil Dead-Soft Aluminum Foil
• Adhesive: 2.0 mil Solvent-Based Acrylic
• Total Thickness (excludes liner): 5.0 mil
• Liner: Easy-release silicone paper
• Adhesion to Steel: 72 oz/inch
• Tensile Strength: 22.7 lbs/inch
• Elongation at Break: 5.0%
• Application Temperature: 50°F to 105°F
• Service Temperature: -40°F to 300°F (-40°C to 149°C)
• Color: Bright silver aluminum

Applications

• Vapor barrier and air-leakage sealing on HVAC ductwork and insulation
• Heat reflection and thermal shielding on insulation, ducts, and pipes
• Masking in electroplating, paint stripping, and chemical milling operations
• Outdoor cable splice protection and weather sealing
• Metal patching and seaming on equipment, vehicles, and trailers
• Sound dampening and acoustic insulation work
• Electrical isolation and EMI/RFI shielding
• Light reflection for greenhouse and lighting enhancement applications
• Refrigerator and freezer coil attachment
• Splicing of thin-gauge foils

Why Choose AF-30A Over 3M 427

AF-30A and 3M 427 are both linered aluminum foil tapes with acrylic adhesives, engineered for HVAC vapor barriers, chemical masking, and heat reflection. Here's how they compare head-to-head:

• 72 vs. 50 oz/in adhesion to steel — AF-30A delivers 44% stronger peel adhesion, the most important spec for vapor-barrier and seam-sealing applications where a weak bond means leaks, callbacks, and energy loss
• 3.0-mil vs. 2.8-mil foil backing — AF-30A's thicker backing provides greater puncture and tear resistance during installation and handling
• 5.0-mil vs. 4.6-mil total thickness — More material under the adhesive for better gap-filling on irregular surfaces
• Equivalent service temperature top end — Both perform to 300°F continuous
• Cost-effective spec match — AF-30A delivers superior adhesion performance to 3M 427 at a competitive price point

3M 427 holds an edge in two areas: wider cold-temperature range (-65°F vs. -40°F) and higher tensile strength (28 vs. 22.7 lbs/in). For aerospace cryogenic applications or installations requiring sub-zero performance below -40°F, 3M 427 may be the better choice. For everything else — adhesion strength, foil thickness, and value — AF-30A is the stronger specification.

Surface Preparation & Storage

Surface must be clean, dry, and free of dust, grease, oil, and condensation before application. Apply at temperatures between 50°F and 105°F (10°C to 41°C) for optimal adhesion. Press firmly along the full length of the tape to activate the pressure-sensitive adhesive and ensure complete contact with the substrate.

Store rolls in a cool, dry area at approximately 70°F (21°C) and 50% relative humidity, out of direct sunlight, with the liner intact until ready for application.
