Shurtape AF 75 Military Grade Aluminum Foil Tape - Case
Shurtape AF 75 Military Grade Aluminum Foil Tape - Case
Regular price
$1,363.39 USD
Regular price
Sale price
$1,363.39 USD
Unit price
$37.87 each
Shipping calculated at checkout. Free Shipping In The USA‼
Quantity
Couldn't load pickup availability

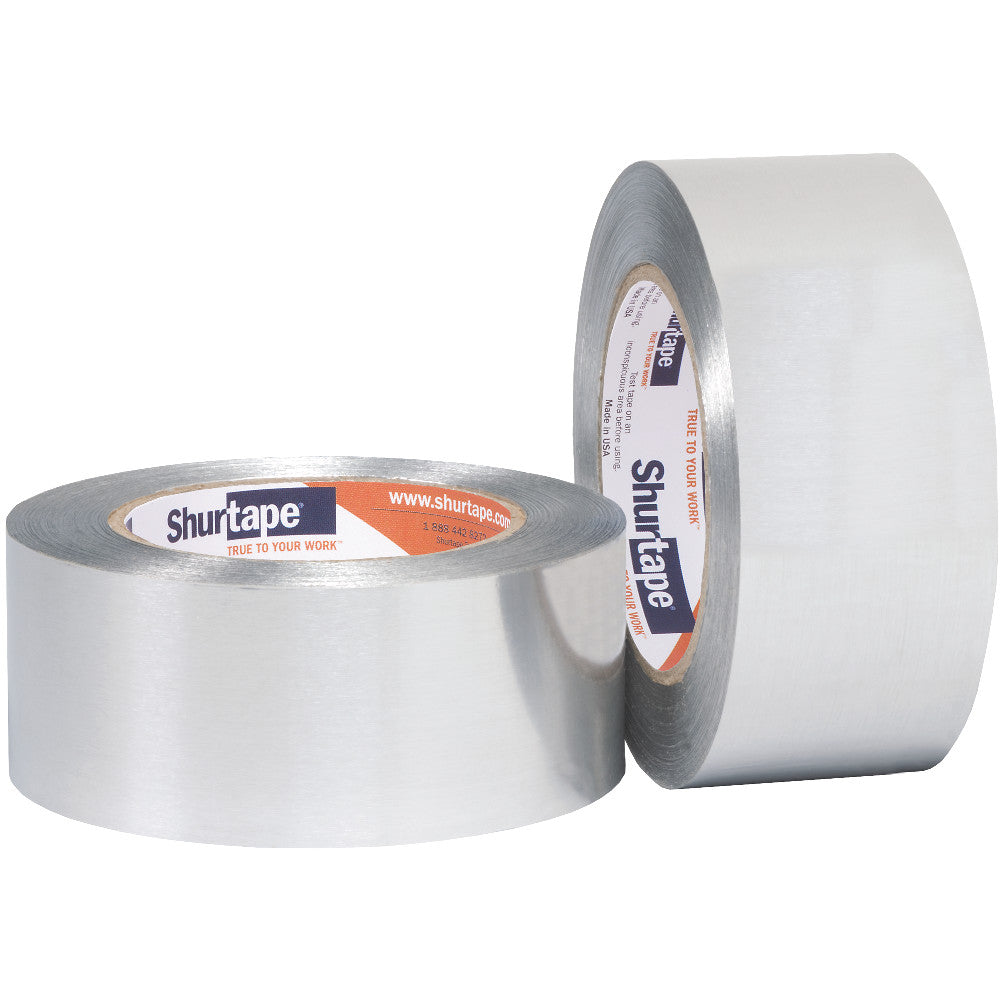

Shurtape AF 75 is a military-grade dead-soft aluminum foil tape engineered to create vapor barriers and waterproof seals across a broad temperature range. Built on a 3-mil dead-soft aluminum foil backing with an aggressive acrylic adhesive, it conforms and burnishes smoothly to seams and contours, then resists extreme temperature fluctuations after application. Linerless for fast, efficient application, AF 75 meets multiple military and nuclear-industry specifications and is equally at home masking off surfaces during painting and electroplating. Available in 1 in and 2 in widths on 60 yd (54.86 m) rolls, 3-inch core.
Sold by the case.
Special order product — 1 week lead time.
Key Features
- Military-grade construction — Meets L-T-80B, MIL-T-23397C, SAE-AMS-T-23397, and NRC Guide 1.38
- 3 mil dead-soft foil — Conforms and burnishes smoothly to seams, contours, and irregular surfaces
- Vapor barrier & waterproof seal — Creates reliable moisture and vapor barriers
- Broad temperature range — Applies and performs from −30°F to 325°F
- Aggressive acrylic adhesive — Excellent adhesion with strong resistance to temperature fluctuations
- Linerless — No liner to remove for fast, efficient application
Applications
- Creating vapor barriers and waterproof seals
- Masking off surfaces when painting
- Masking during electroplating
- HVAC, insulation, and specialty sealing applications
- Use across broad temperature ranges (−30°F to 325°F)
Available Sizes
| Width | Length | Rolls per Case | Case Weight | Case UPC |
| 1 in (25.4 mm) | 60 yd (54.86 m) | 36 | 29.403 lb | 10040074001951 |
| 2 in (50.8 mm) | 60 yd (54.86 m) | 24 | 39.133 lb | 10040074001968 |
Product Attributes
| Manufacturer P/N | Shurtape AF 75 (AF 075) |
| Manufacturer | Shurtape Technologies, LLC |
| Color | Silver (SIL) |
| Length | 60 yd (54.86 m) |
| Core Size | 3 in |
| Country of Origin | United States (Made in USA) |
| Sold As | Case (see Available Sizes for rolls per case) |
| Lead Time | 1 week |
Specifications
- Backing material — 3 mil dead-soft aluminum foil
- Adhesive — Acrylic-based
- Liner — Linerless
- Total thickness — 4.8 mil (0.12 mm)
- Tensile strength — 30 lb/in (52.5 N/10 mm)
- Adhesion to stainless steel — 55 oz/in (6.02 N/10 mm)
- Elongation — 5.3%
- Service temperature range — −30°F to 325°F (−34°C to 163°C)
- Color — Silver
Storage & Usage
- Store in original packaging in a cool, dry area away from direct sunlight
- Use within 12 months of date of shipment
- Apply to clean, dry surfaces free of grease, oil, or other contaminants
Certifications & Standards
- L-T-80B
- MIL-T-23397C
- SAE-AMS-T-23397
- NRC Guide 1.38 (nuclear industry)
- Made in USA
- Manufactured under an ISO 9001 certified quality system
