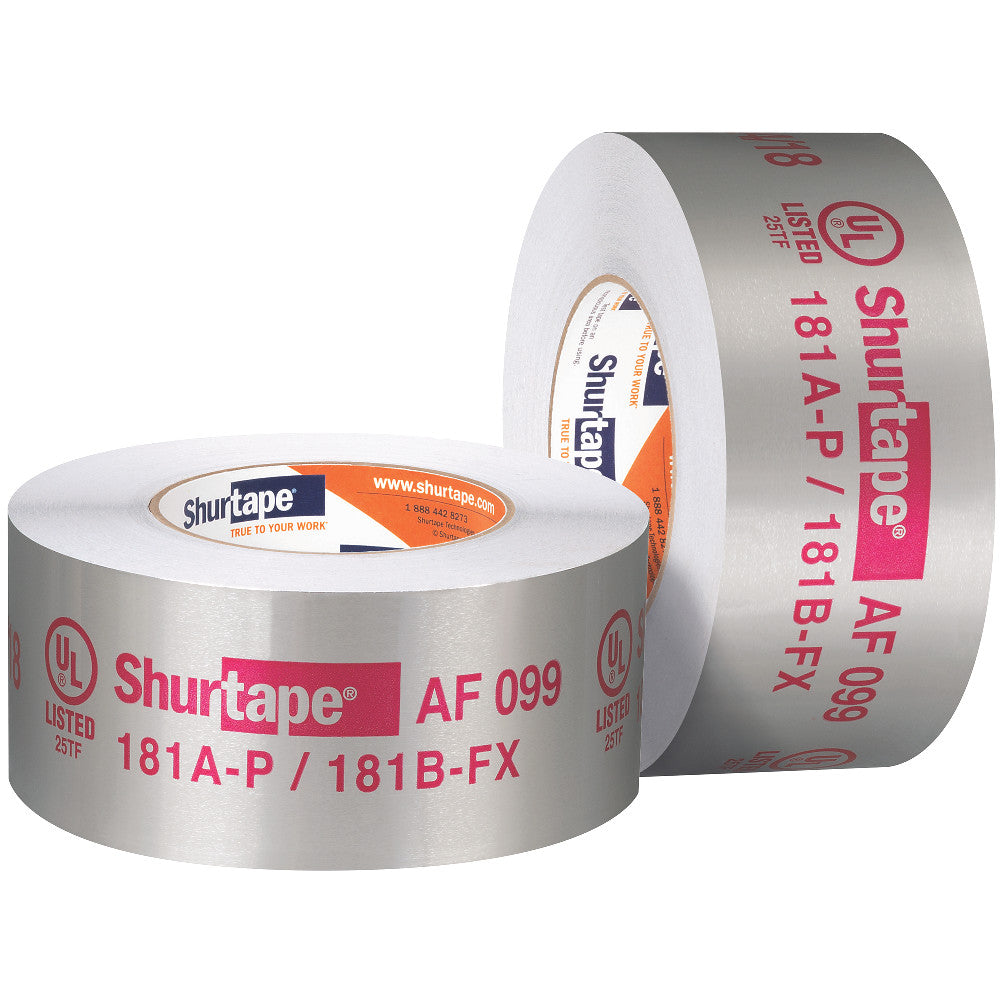

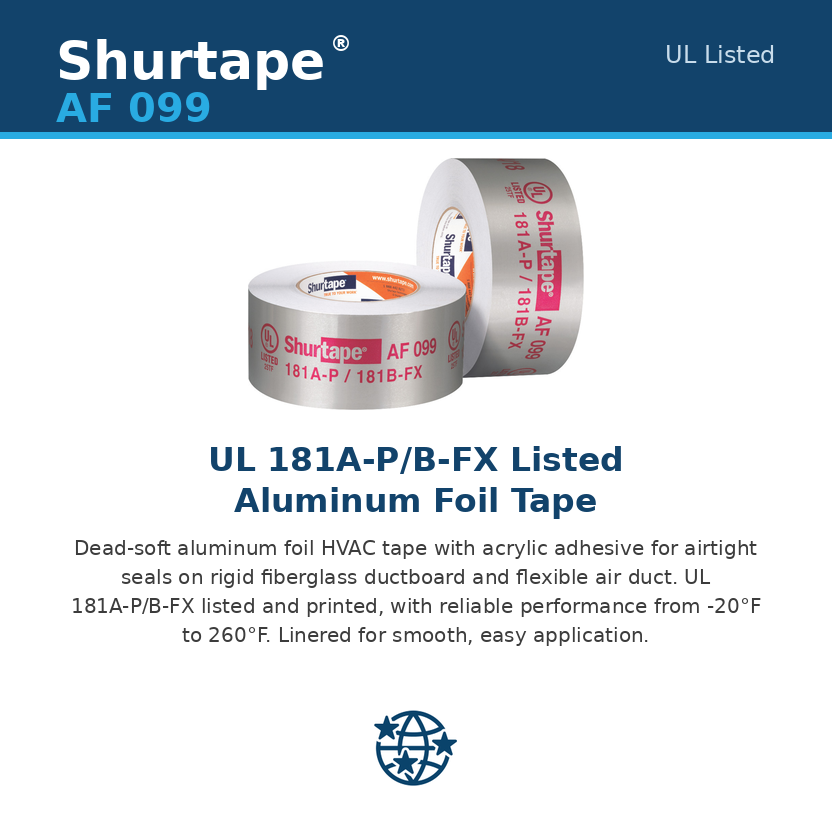

Shurtape AF 099 UL 181A-P/B-FX Aluminum Foil HVAC Tape (Case of 16)

Shurtape AF 099 is a UL 181A-P / B-FX listed and printed aluminum foil tape engineered for airtight HVAC duct sealing. Built on a 2-mil dead-soft aluminum foil backing with an aggressive acrylic adhesive, it conforms easily to seams and joints and delivers airtight performance on rigid fiberglass ductboard and flexible air duct. The dead-soft foil burnishes down smoothly, while superior stability through extreme temperature swings makes it dependable in demanding ventilation environments. Each roll is printed with its UL listing for easy code-compliance verification on the job.

Sold by the case — 16 rolls per case.

Key Features

• UL 181A-P / B-FX listed — Code-compliant and printed with its listing for easy field verification
• Airtight performance — Seals seams and joints on rigid fiberglass ductboard and flexible air duct
• Dead-soft aluminum foil — 2-mil backing conforms and burnishes smoothly to contours
• Acrylic adhesive — Aggressive, long-term bond with superior temperature stability
• Linered for easy handling — Non-contaminating siliconized paper release liner
• Wide service range — Performs through extreme temperature fluctuations

Applications

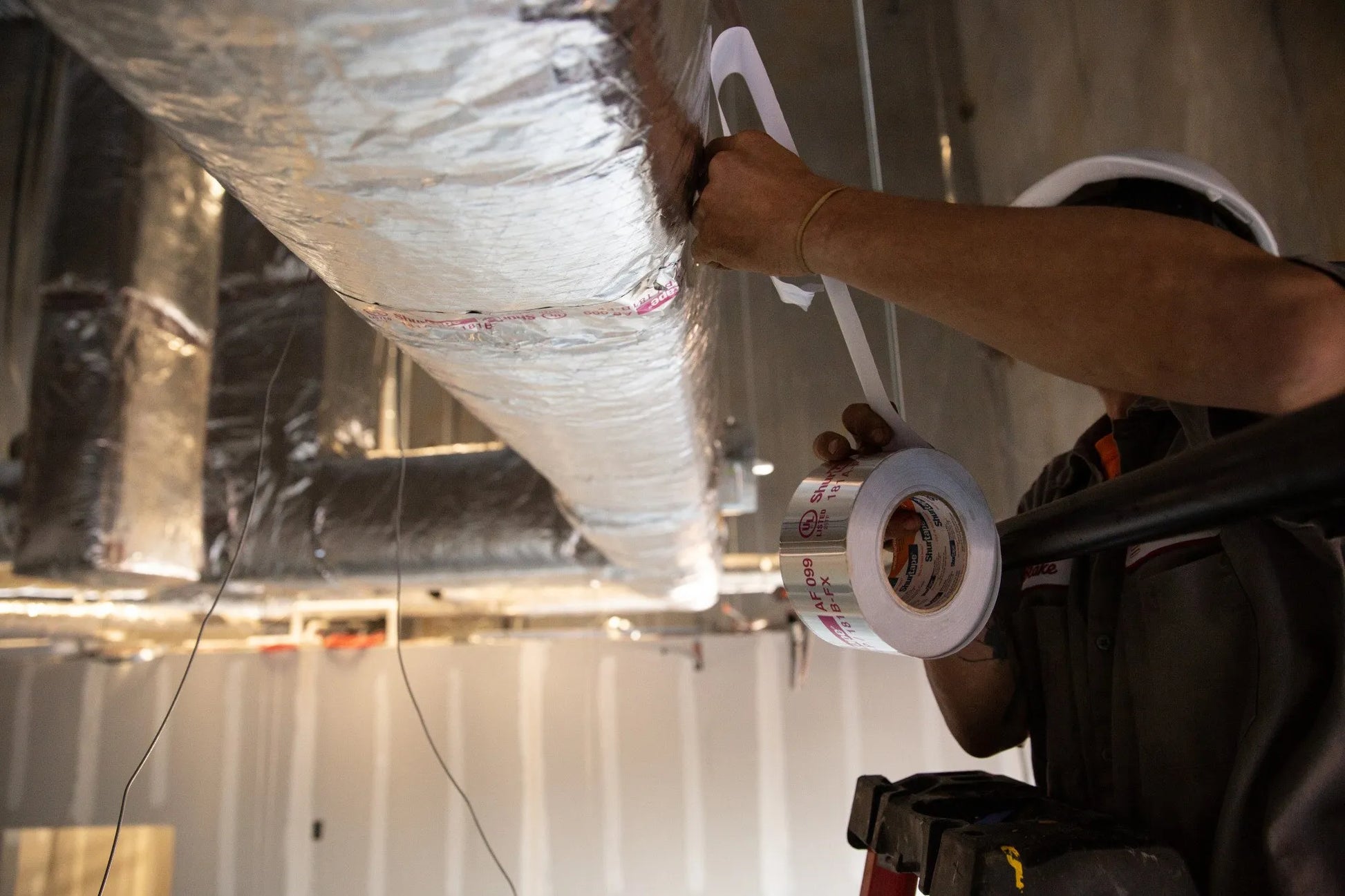

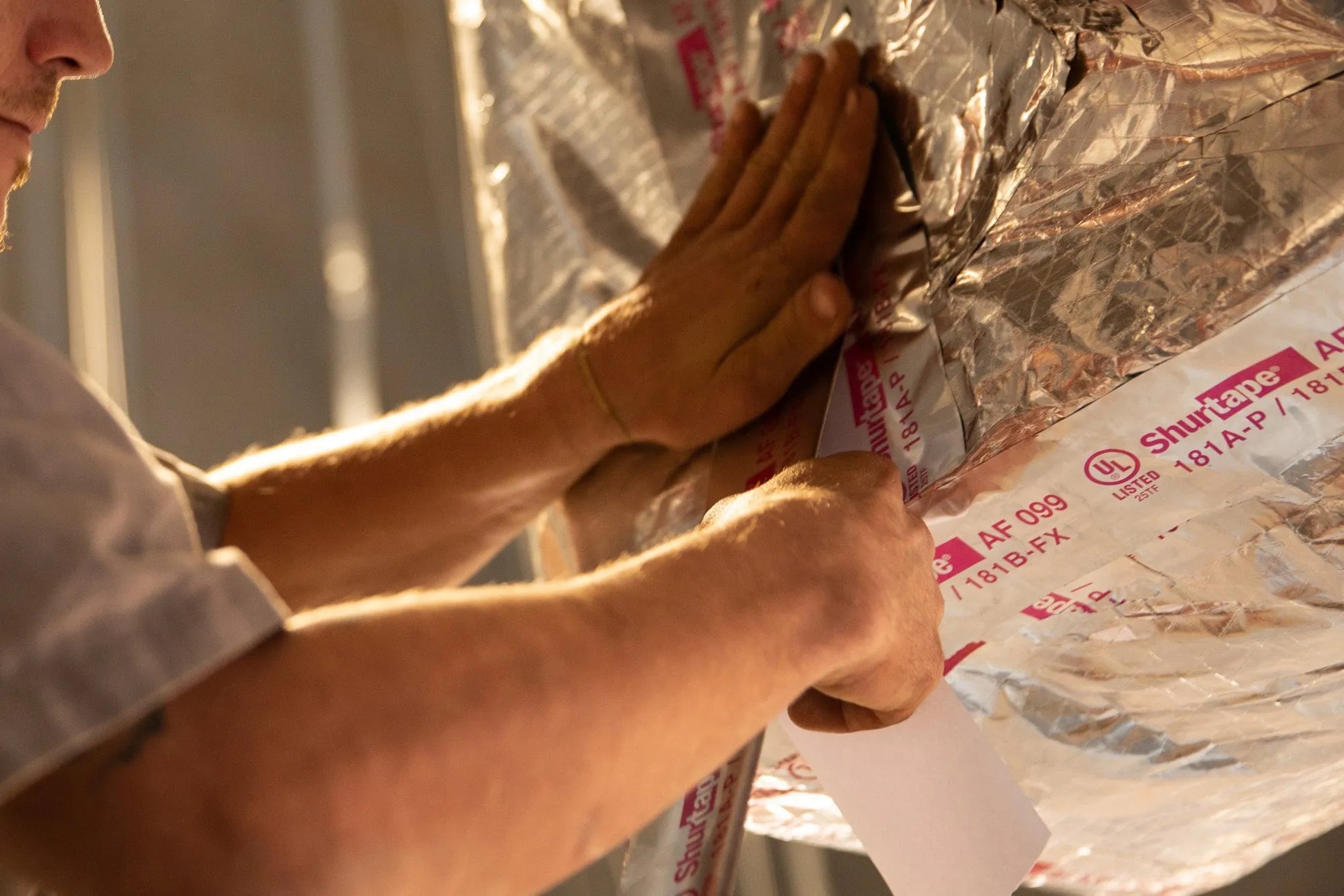

• Joining and sealing joints, connections, and seams on rigid fiberglass ductboard and flexible air duct
• Repairing metal and sheet metal
• Sheet metal ventilation fan exhaust ductwork and dryer vents
• Bath fan installs and replacements
• Temporary fixes and repairs for outdoor electrical boxes

Product Attributes

Specifications

• Backing material — 2 mil dead-soft aluminum foil
• Adhesive — Acrylic-based
• Liner — Non-contaminating, siliconized, flat white paper release liner
• Thickness (with liner) — 7.9 mil (0.20 mm)
• Thickness (without liner) — 4.1 mil (0.10 mm)
• Tensile strength — 33 lb/in (50.0 N/10 mm)
• Adhesion to stainless steel — 70 oz/in (7.66 N/10 mm)
• Elongation — 10%
• Service temperature range — −20°F to 260°F (−29°C to 127°C)
• Color — Silver, printed red

Storage & Usage

• Store in original packaging in a cool, dry area away from direct sunlight
• Use within 12 months of date of shipment
• Apply to clean, dry surfaces free of grease, oil, or other contaminants

Certifications & Standards

• UL 181A-P listed
• UL 181B-FX listed
• UL Listed — tested in accordance with UL 723
• FSI 25 / SDI 50 (flame spread / smoke developed)
• Manufactured under an ISO 9001 certified quality system
